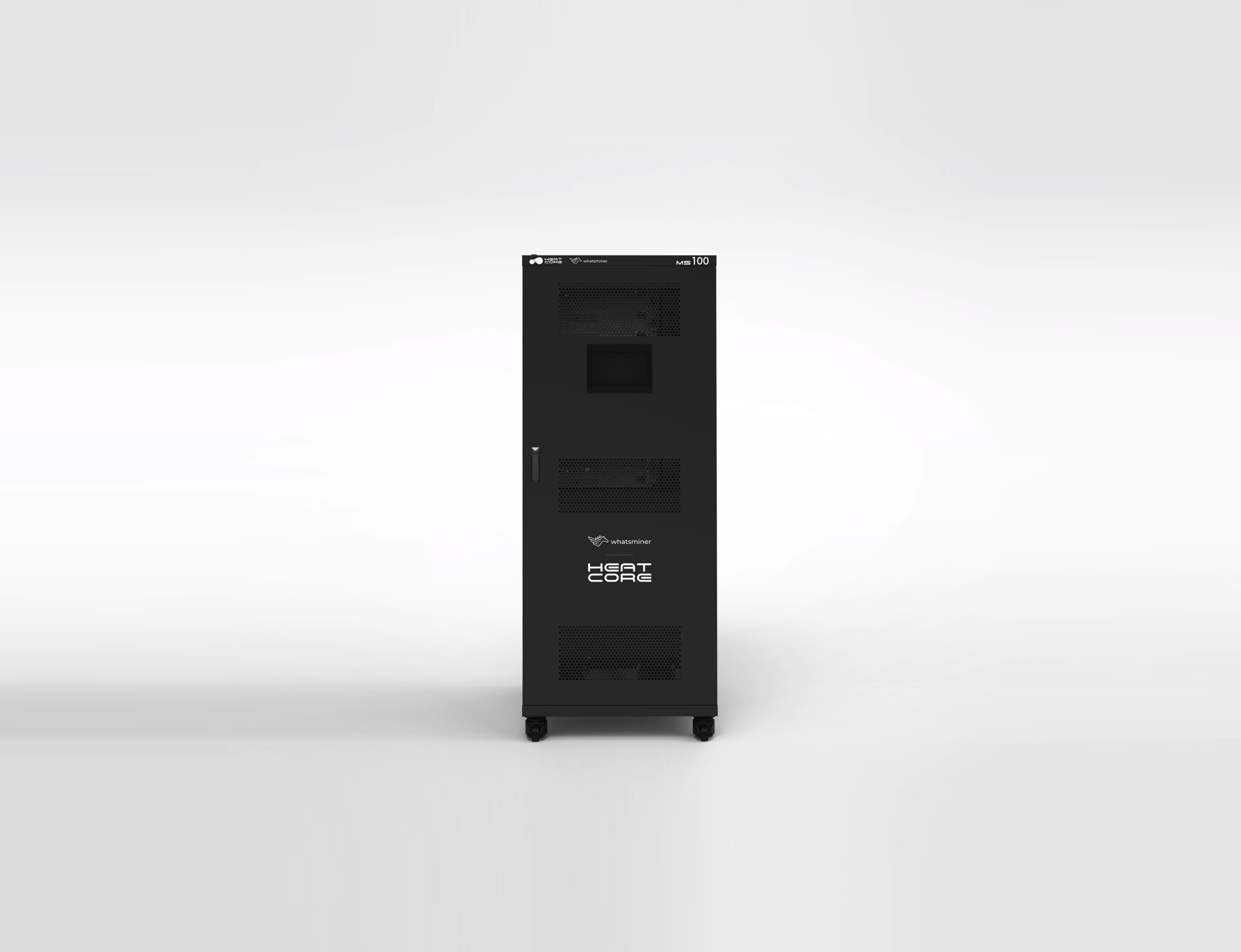

MS100

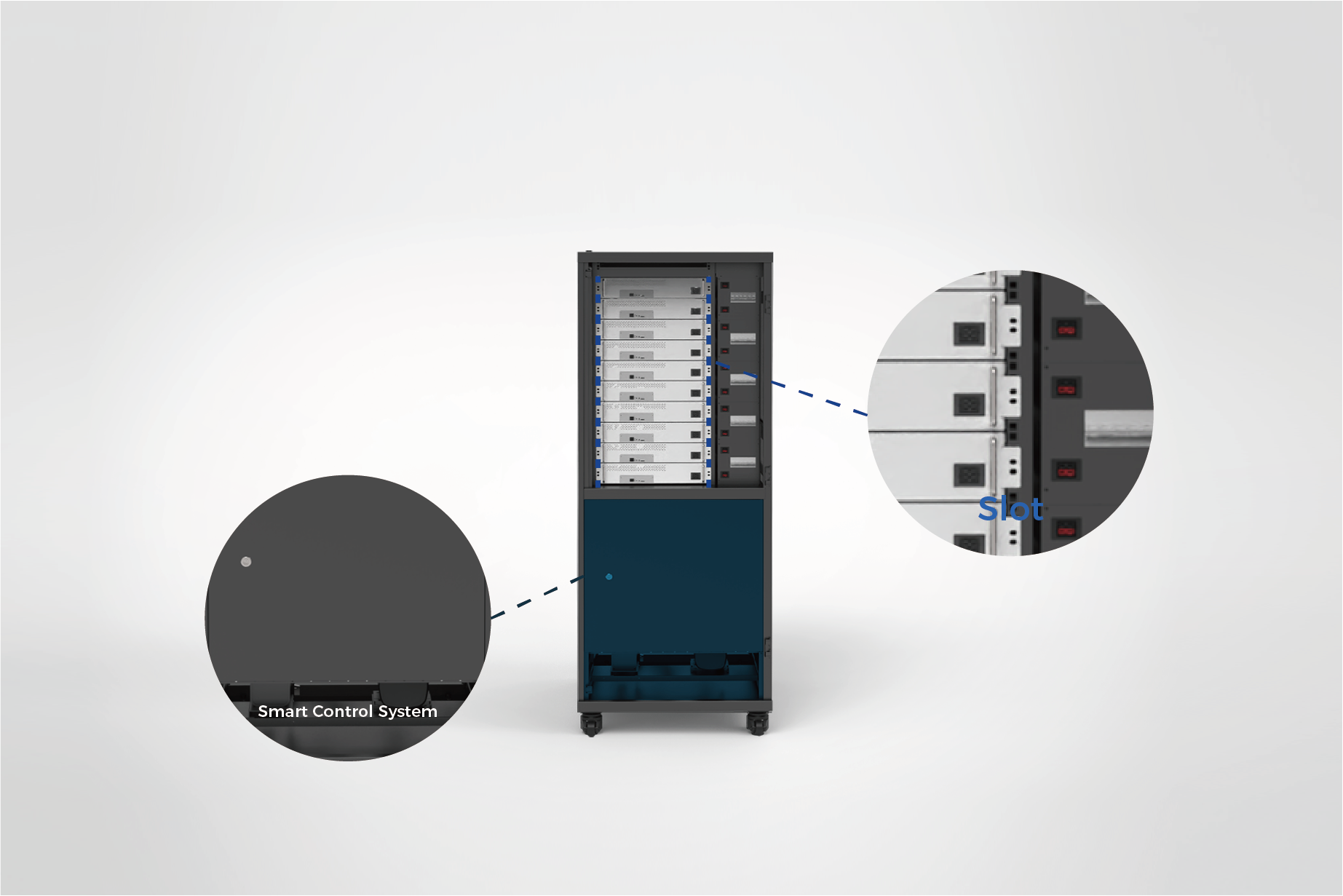

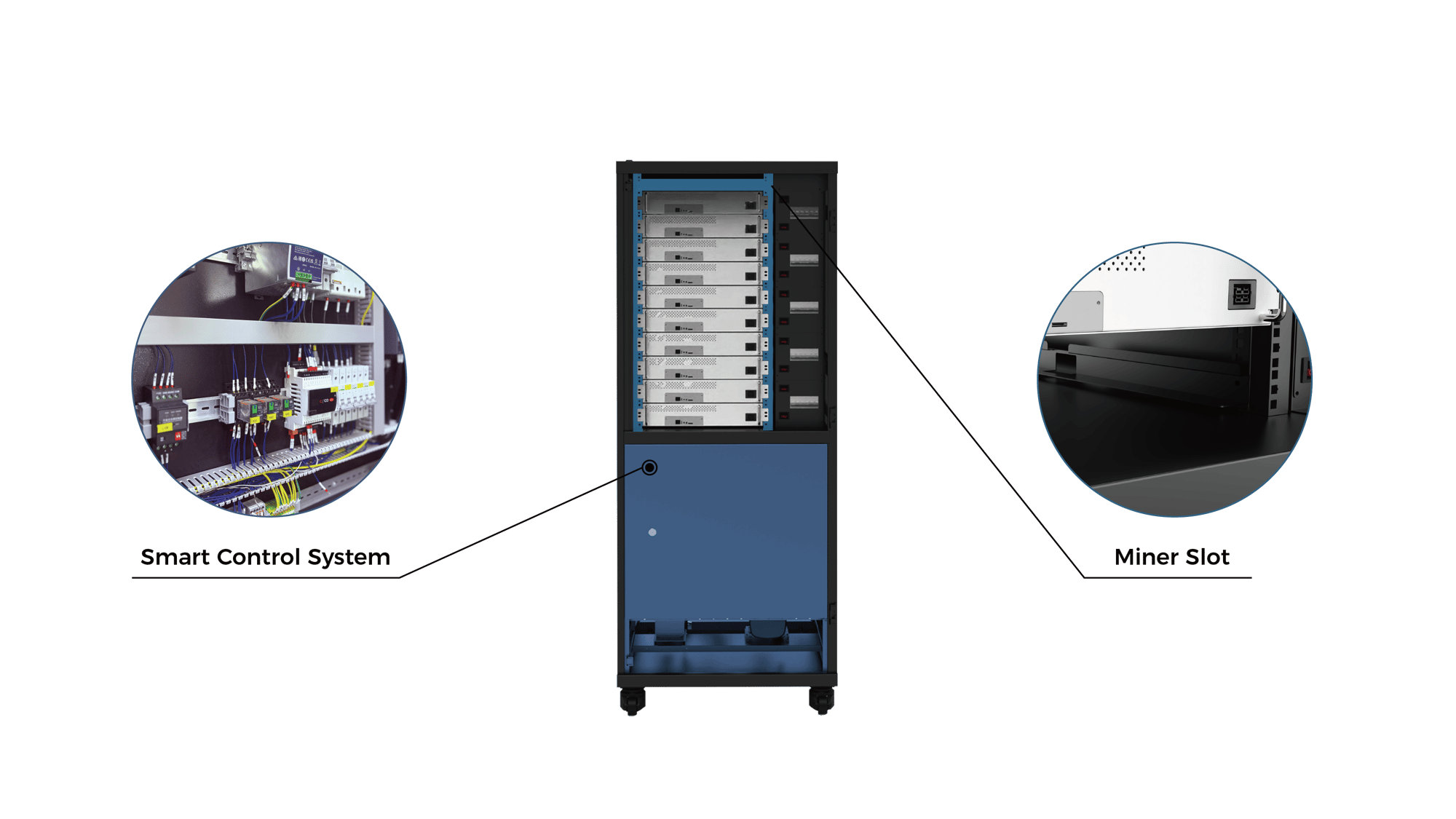

M series features an all-in-one design, integrating both smart control system(known as CDU) and mining servers into a single rack.

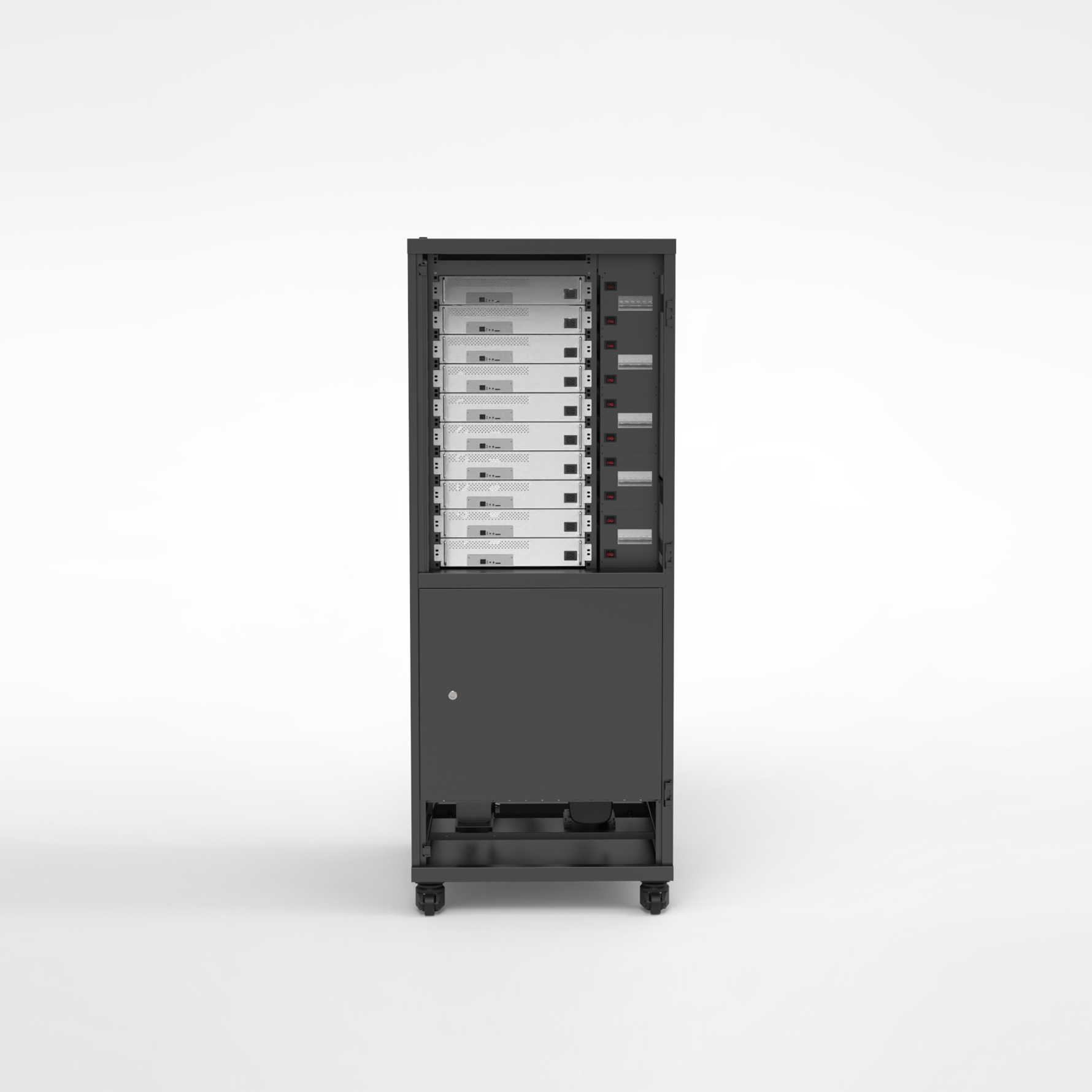

Modular design, supports up to 10 WhatsMiner miners with prefabricated, integrated design for efficient deployment

Can add an additional plate heat exchanger for heating applications (domestic, building, farm)

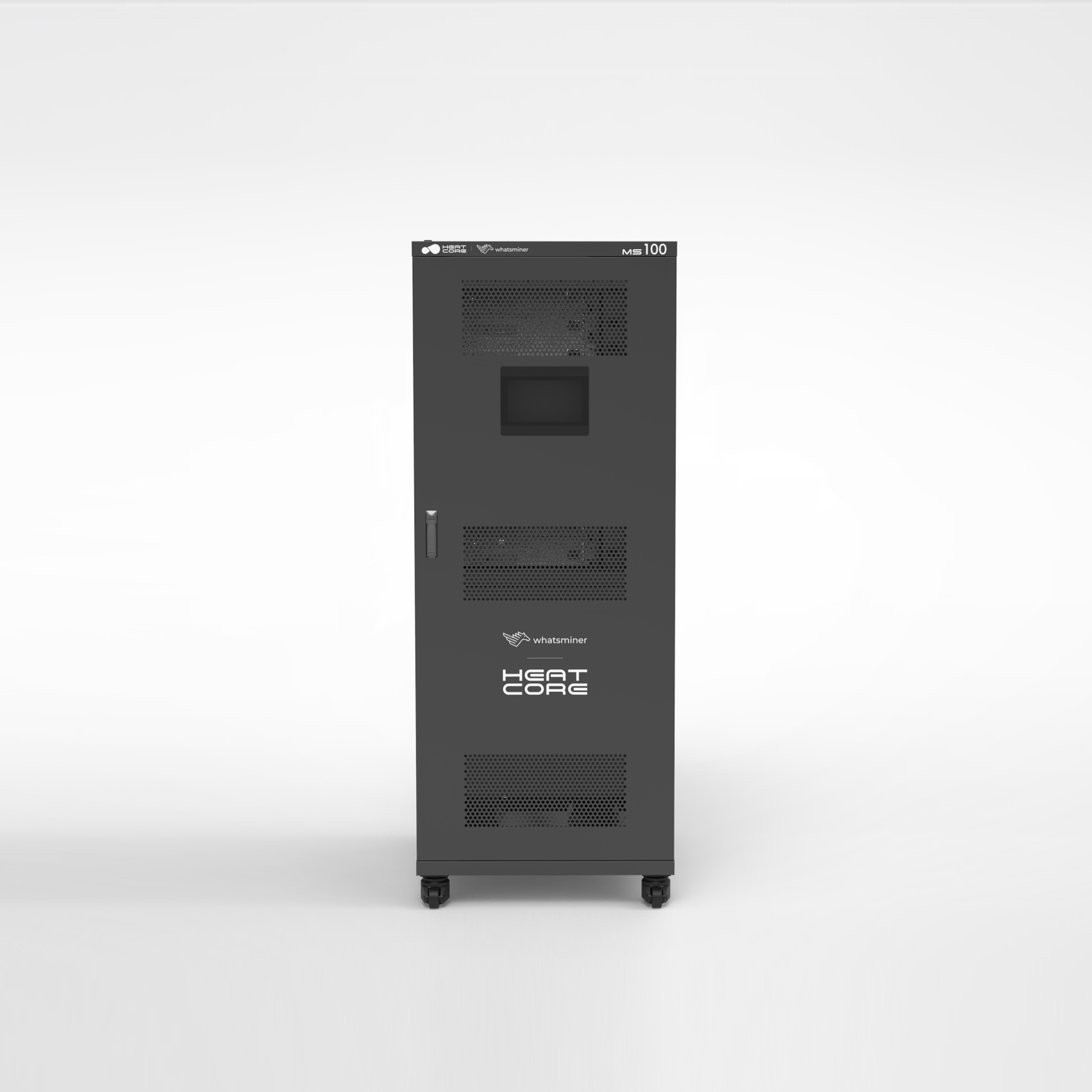

Front/rear access and touchscreen HMI simplify data control, trend monitoring, and alarms

CATEGORY		DETAILS
Model		MS100
Rack Capacity		10 Units

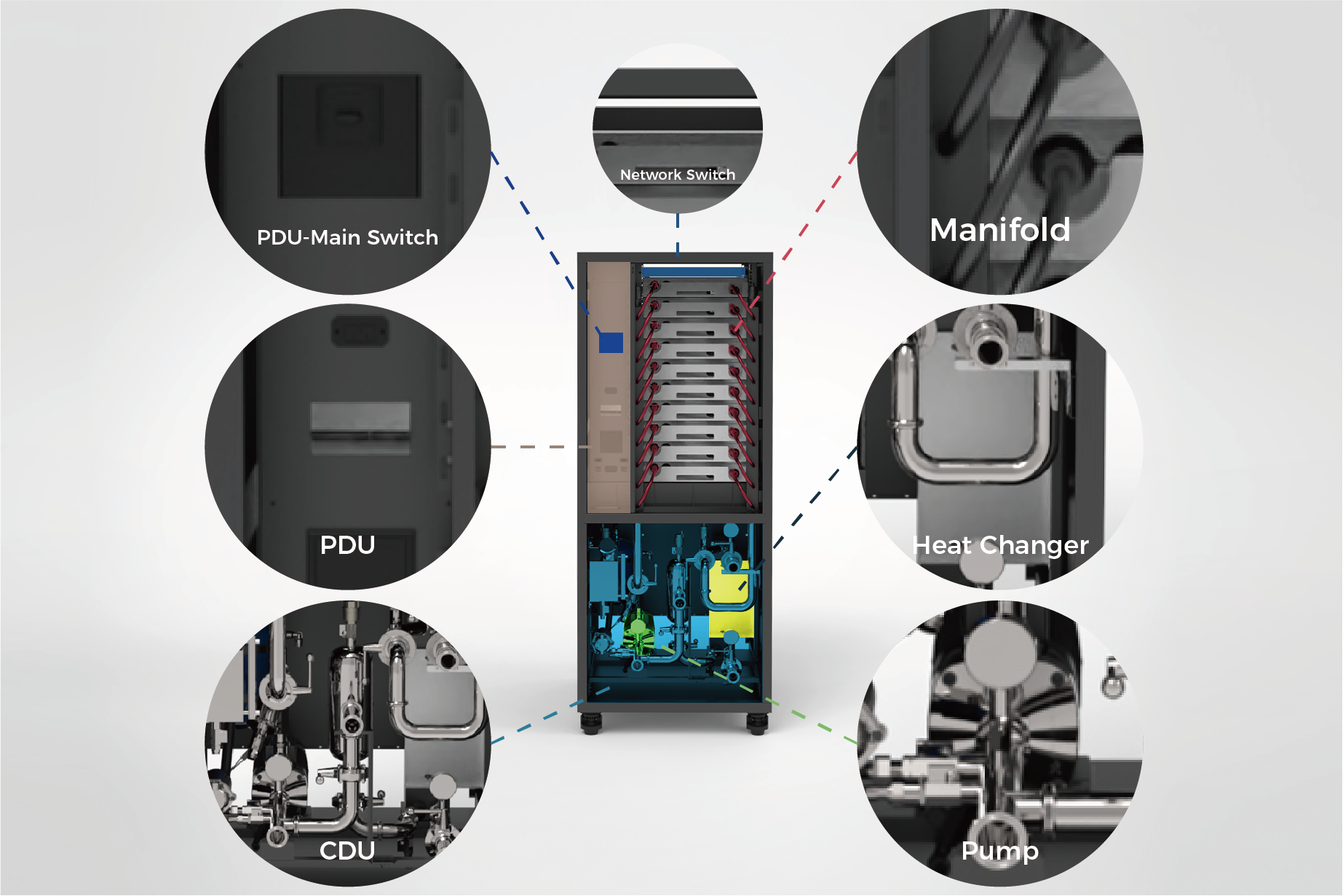

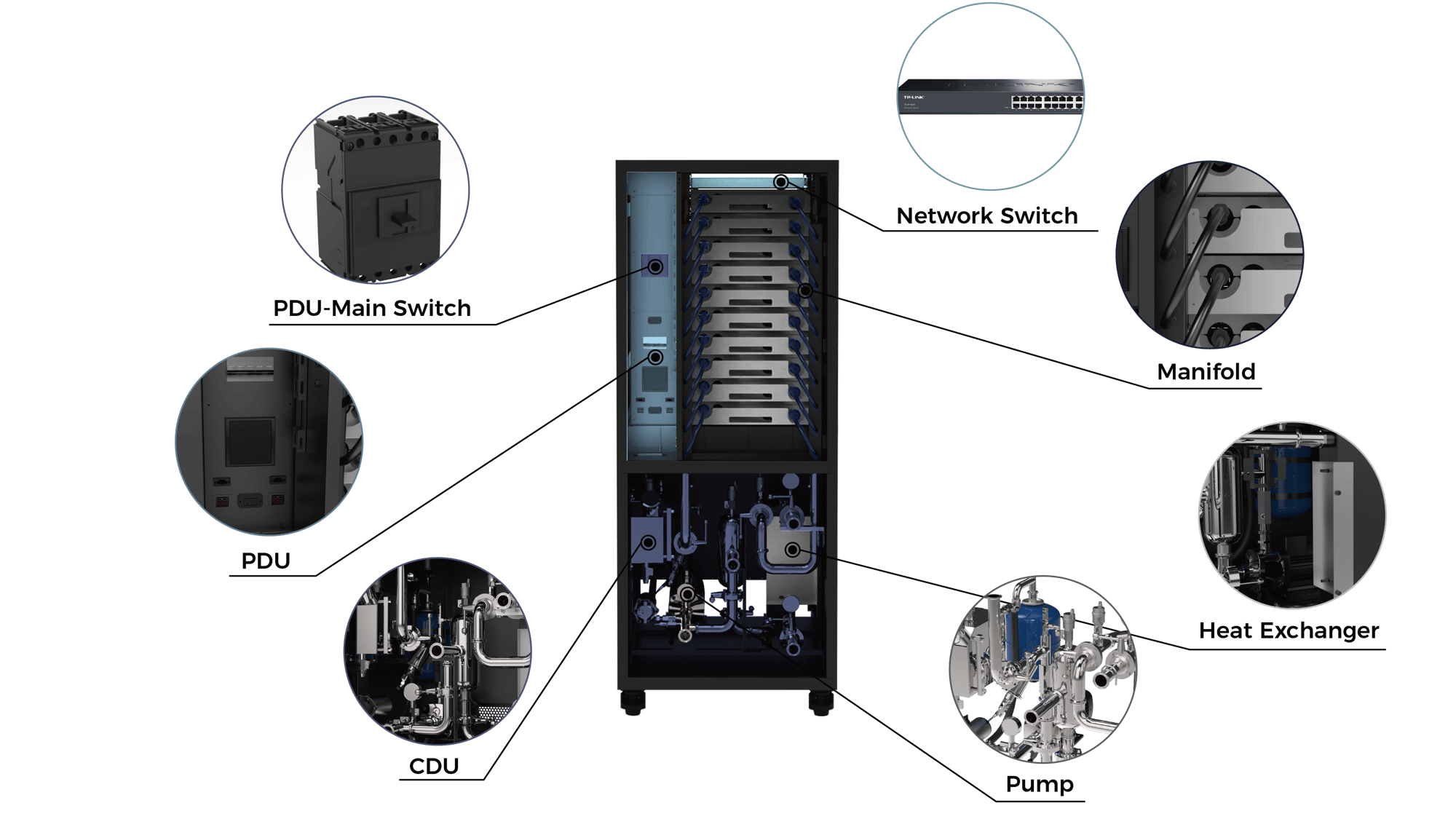

Main Components Included		Smart Control System(CDU), PDU, etc.
Dimensions (without dry cooler) (LxWxH)		985x800x2050mm
Net Weight/Operating Weight(without dry cooler)		370kg/670kg
Input Power		3-Ph/PE 380-480V 50/60Hz
Max. Power Consumption		105kW
Max. Output Temperature		80°C(176 °F) (after plate heat exchanger, up to 75°C/ 167 °F)
Thermal Efficiency		95%
Heat Exchanger		Customized on Demand
Pipes		Customized on Demand
DRY COOLER
Outer Size(LxWxH)		2000x1100x1250mm
Power		2.55kW
Input Power		3-Ph/PE 380-480V 50/60Hz
Net Weight		320kg
Cooling Capacity		100kW@35°C/ 95 °F
Noise		53dB(A)@10m
EC Fan		1*910mm Fan
Electrical Code for the US		NFPA 70,UL508A
Electrical Code for the EU		IEC 61439, IEC 60204
Certification		CE or CSA Field Evaluation

MS100 System Operation Diagram
