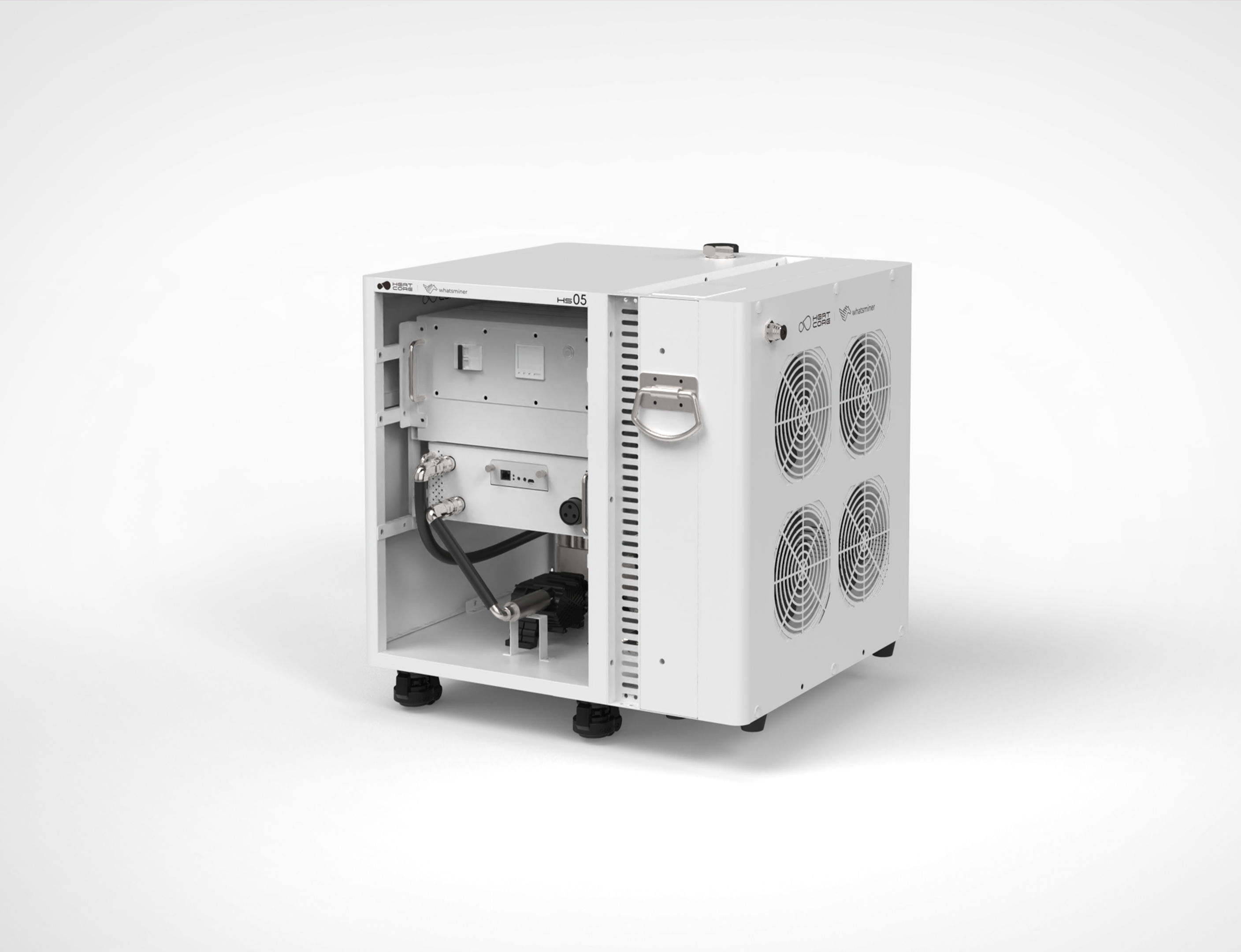

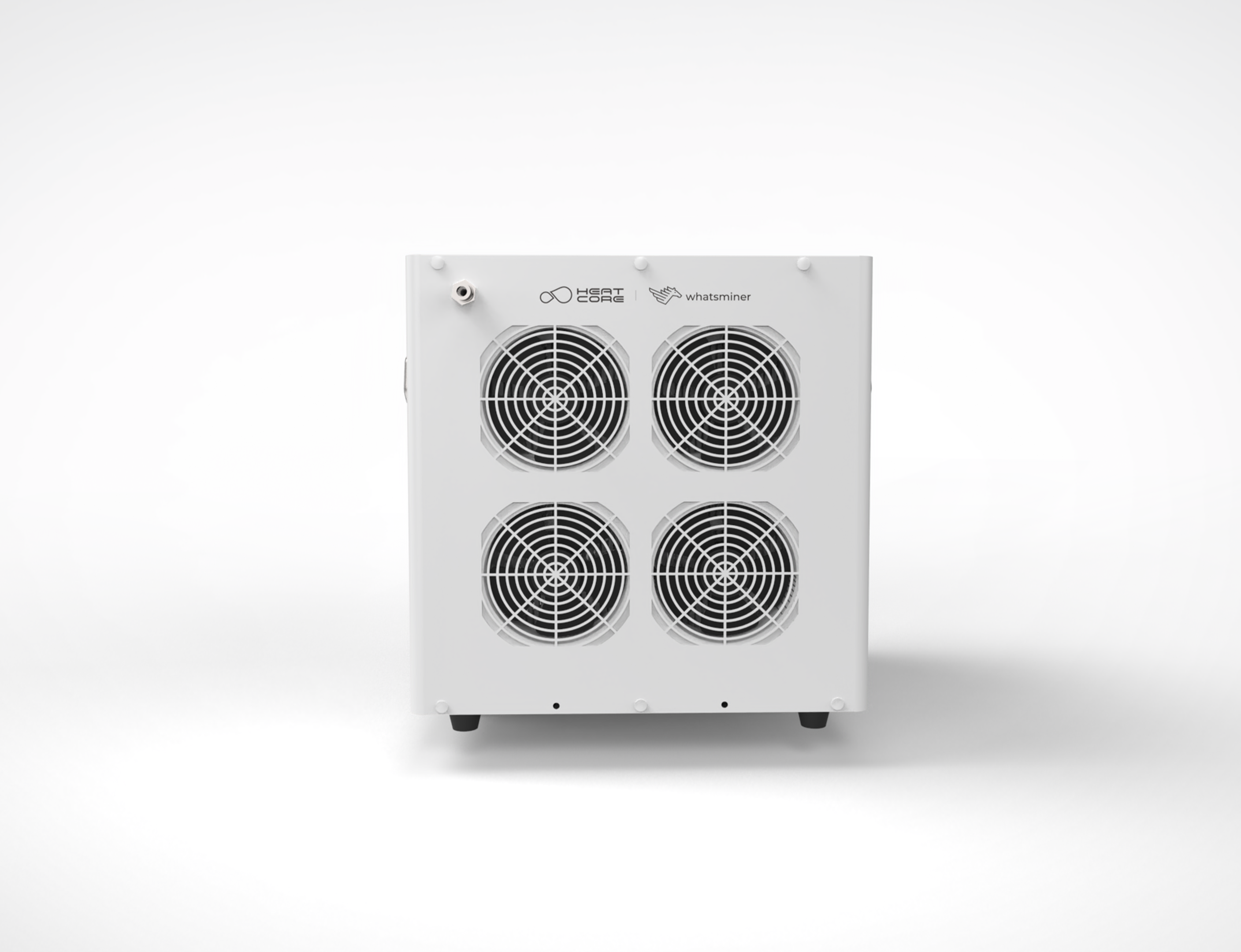

HS05 & HS20
H series is designed for home heating and mining

资源 11@4x-3
Modular Design

HS05's dry cooler can be installed flexibly, supporting integrated or split layouts

资源 12@4x-3
Ultra-Quiet

You can detach the HS05's dry cooler for outdoor placement and enjoy a tranquil sleep

资源 13@4x-2
Compact & Portable

Takes up minimal space, perfect for home use

资源 13@4x-3
Multi-Scenario Use

Ideal for warehouse, swimming pool, or indoor heating

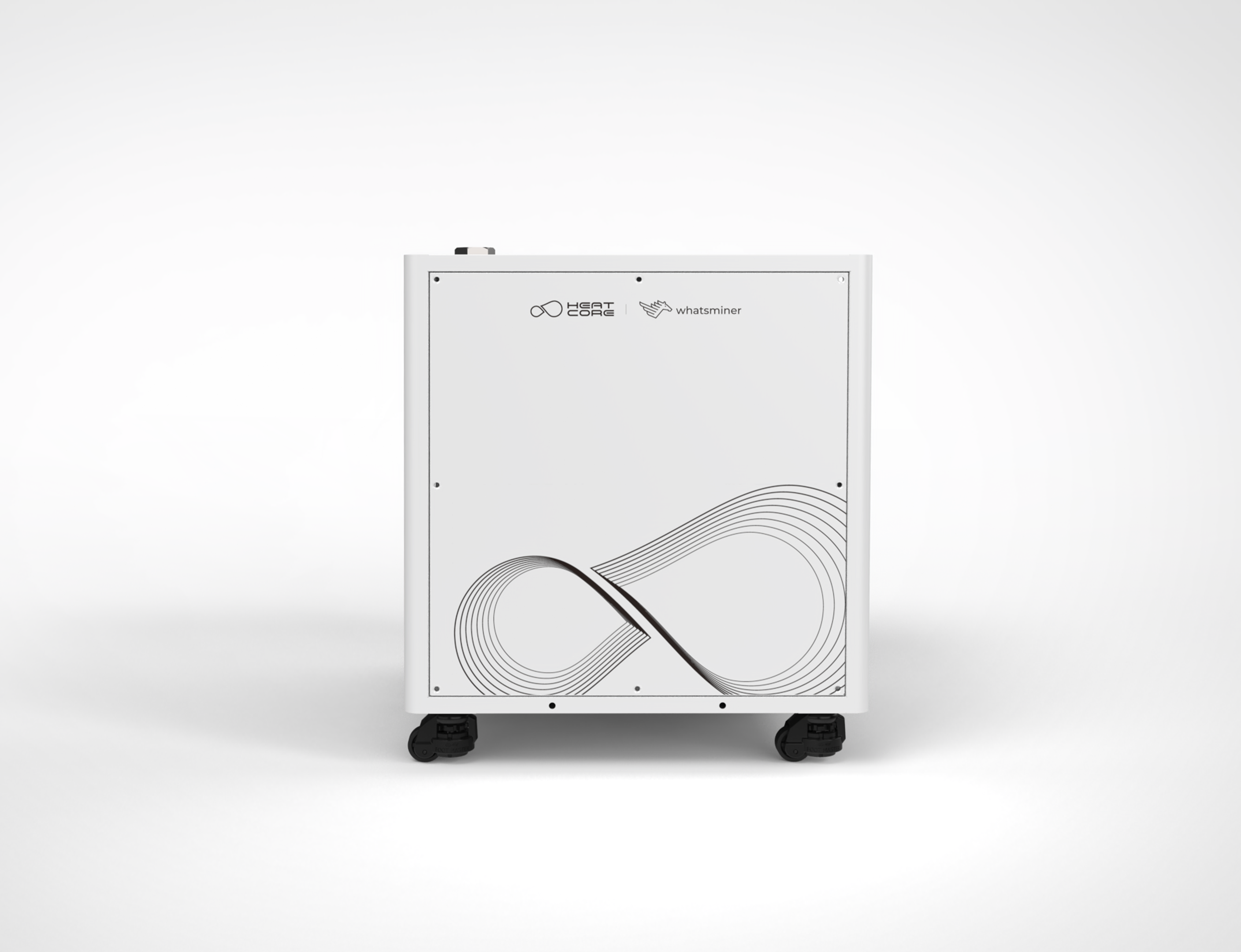

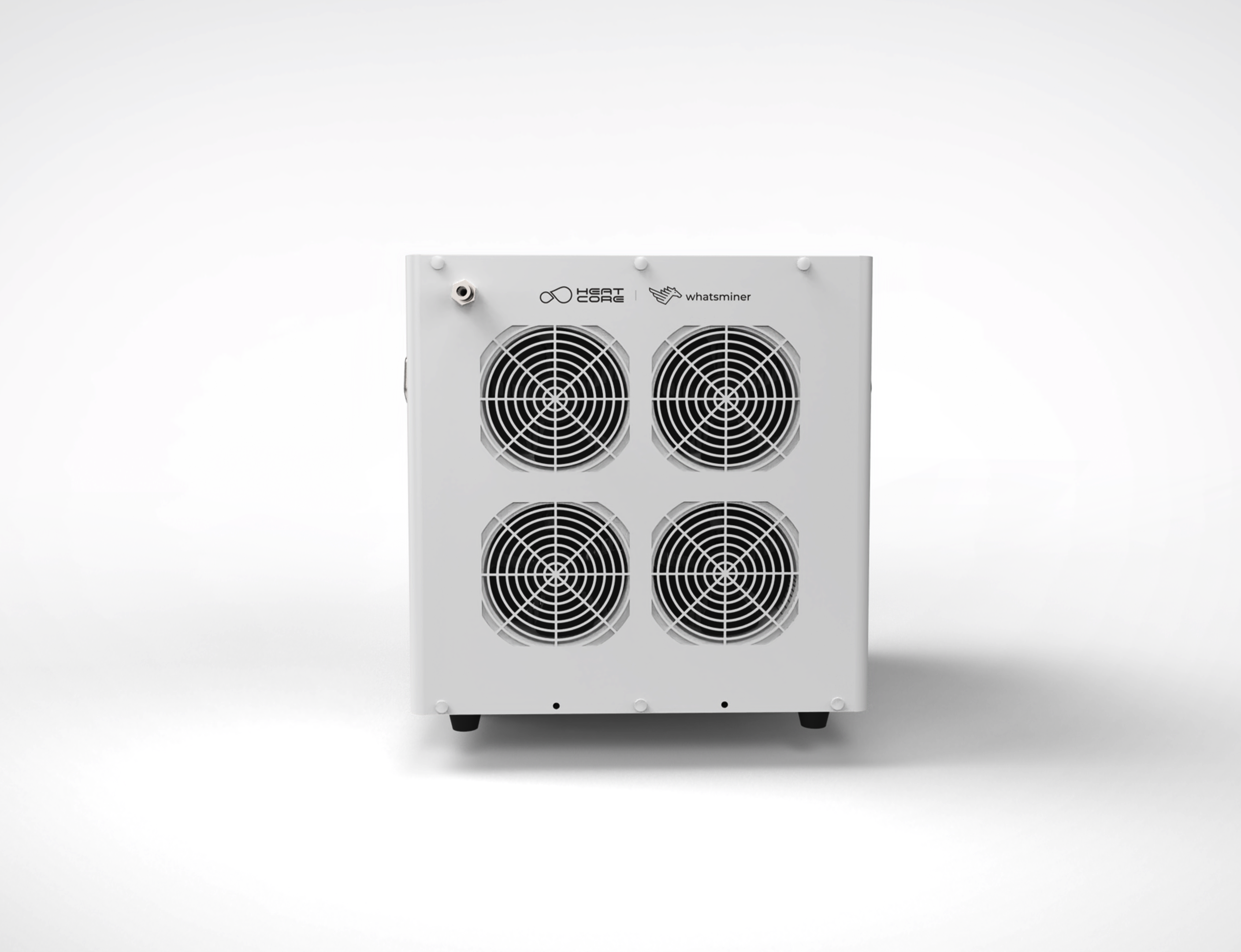

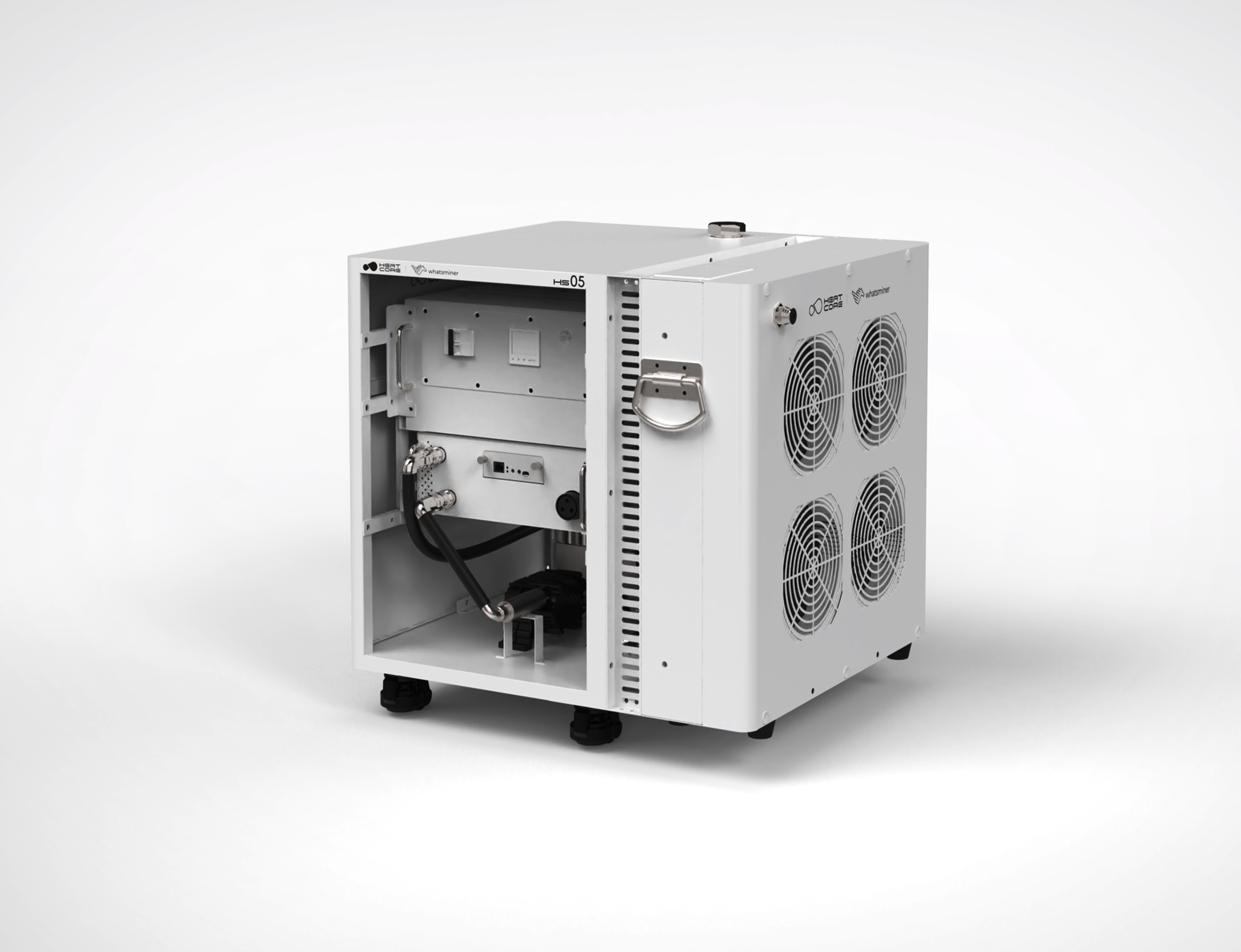

ABOUT  NEW HS05

NEW HS05 SPECIFICATION
CATEGORY(Physical) DETAILS(Physical)
Model NEW HS05
Miner Capacity 1 Unit Single-Phase/1 Unit 3-Phase Miner
Cabinet Dimensions (W*D*H) 500mm*240mm*485mm
Net Weight 25kg
Operation Weight 27kg
CATEGORY(Electrical) DETAILS(Electrical)
Typ. Power Consumption 5.5/10.5kW (Max. with Miner)
Voltage and Frequency 1Ph+ground 200V-24OV 50/60Hz
CATEGORY(Fluid) DETAILS(Fluid)
Coolant Distilled water + Corrosion Inhibitor + Antifreeze (as per requirements)
Flow
5~10L/min
Fluid Volume 2L (With Miner)
CATEGORY(Heating) DETAILS(Heating)
 Inlet Water Temp. Range 35°C
 Rated Heating Capacity 5 kW(17,060 BTU/h)/10 kW(34,121 BTU/h)
CATEGORY(Environment Conditions - Operating) DETAILS(Environment Conditions - Operating)
Ambient Temperature Range -25°C~45°C
Noise <50dB(A)@1m
Included Accessories( 1 × HS05 Power Cable  and 2 × HS05 Connecting Pipe and 1 × Ethernet Cable)

Included Accessories

• 1 × HS05 Power Cable
• 2 × HS05 Connecting Pipe
• 1 × Ethernet Cable

Mining Rig Frame

Mining Rig Frame

• Superior Cooling & Airflow Performance
• Physical Protection & Short-Circuit Prevention
• Space-Saving Vertical Stackability
• Efficient Cable Management & Fast Maintenance

Miner Power Cable

Miner Power Cable

• High Power Delivery & Low Resistance
• Exceptional Flame Resistance & Thermal Stability
• Broad Power & Modular Compatibility
• Flexible Layout & High Durability

Three-phase miner connector

Three-phase miner connector

• High Power Density (Ideal for High-Hashrate Miners)
• Reduced Cabling & Infrastructure Costs
• Higher Power Efficiency & Grid Stability
• Industrial-Grade Locking & Enhanced Safety

Single-phase miner connector

Single-phase miner connector

• High Compatibility & Easy Deployment
• Low Component Cost & Easy Maintenance
• No Phase-Balancing Complexity
• The cable length is 3 meters (custom lengths are available if this does not meet on-site requirements)

AIR HEATING & HYDRONIC HEATING SYSTEM
We offer two home heating systems for customers to choose from

• Single-phase & three-phase compatible

• Application Scenarios: Home/Office/Swimming Pool/Warehouse...

• *A 5W/10kW system can heat an area of 50~200m'

• Max. Outlet Water Temp: 85°C

• The dry cooler is optional. It is not required for certain countries.

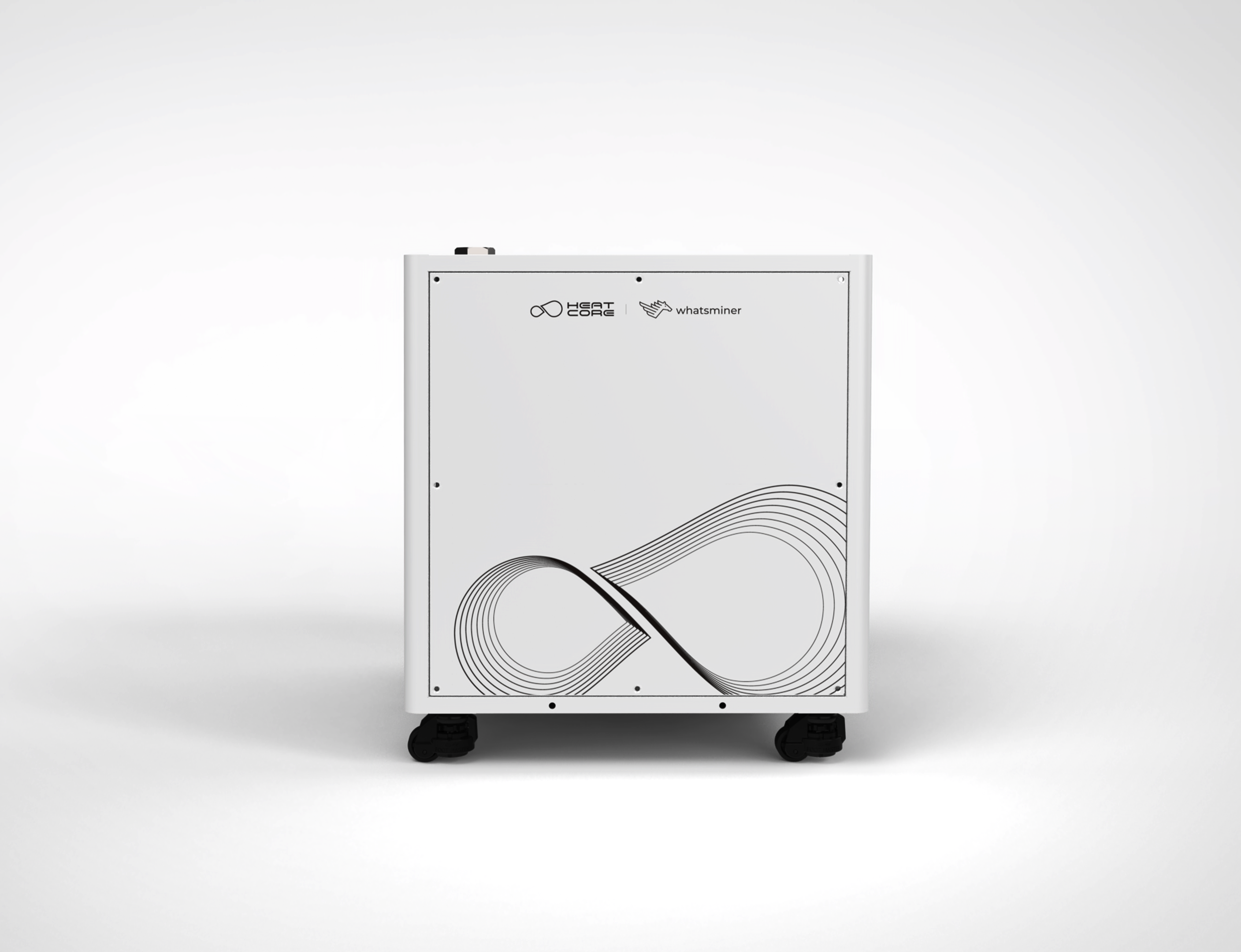

ABOUT  HS05

HS05 SPECIFICATION
CATEGORY DETAILS
Model HS05
Rack Capacity 1 Unit of M64 series Miner
Main Components Included Smart Control System(CDU), PDU, etc.
Dimensions (LxWxH) 638x545x639.5mm
Dimensions (without dry cooler) (LxWxH) 638x410x639.5mm
Net Weight/Operating Weight 57kg/74kg
Net Weight/Operating Weight (without dry cooler) 42kg/52kg
Input Power Single-Ph/N/PE 220-240V 50/60Hz
Max. Power Consumption 5.5kW
Max. Output Temperature 80°C(176 °F) (after plate heat exchanger, up to 75°C/ 167 °F)
Thermal Efficiency 95%
No. of Heat Exchanger 1
DRY COOLER
Outer Size(LxWxH) 578x207x572mm
Power 264W
Input Power Single-Ph/N/PE 220-240V 50/60Hz
Net Weight 15kg/22kg
Cooling Capacity 5kW@35°C/ 95 °F
Noise  45dB(A)@10m
EC Fan 4*EC Fans
Electrical Code for the EU IEC 61439, IEC 60204

HS 05

HS 05 SPECIFICATION
CATEGORY DETAILS
Model HS05
Rack Capacity 1 Unit M64 series
Main Components Included Smart Control System(CDU), PDU, etc.
Dimensions (L x W x H)-mm 480x600x545mm
Dimensions(without dry cooler) (W x D x H)-mm 480x370x545mm
Net Weight/Operating Weight-kg 35 kg/ 50 kg
Net Weight/Operating Weight(without dry cooler)-kg 20kg/28kg
Input Power Single Ph/N/PE 220-240V 50/60Hz
Max Power Consumption 5.5 kW
Maximum Output Temperature 75
Thermal Efficiency 95%
No. of Heat Exchanger 1
DRY COOLER
Outer Size(L x W x H)-mm 480x230x545mm
Power 264W
Input power Single Ph/N/PE 220-240V 50/60Hz
Net Weight 15kg/22kg
Cooling Capacity 5kW@35°C
Noise  45dB(A)@10m
EC Fan 4*EC Fans
Electrical Code for the EU IEC 61439, IEC 60204
HS05 SPECIFICATION

Category Details
Model HS05
Rack Capacity 1 Unit M64 series
Main Components Included Smart Control System(CDU), PDU, etc.
Dimensions (L x W x H)-mm 480*600*545
Dimensions(without dry cooler) (W x D x H)-mm
Net Weight/Operating Weight-kg 35 kg/ 50 kg
   Net Weight/Operating Weight(without dry cooler)-kg
   Input power Single Ph/N/PE 200-240V 50/60Hz
   Max Power Consumption 6 kw
   Maximum output Temperature
   Thermal Efficiency 95%
   No. of heat exchanger 2
   Electrical Code for the US
   Electrical Code for the EU



  HS05  System Operation Diagram

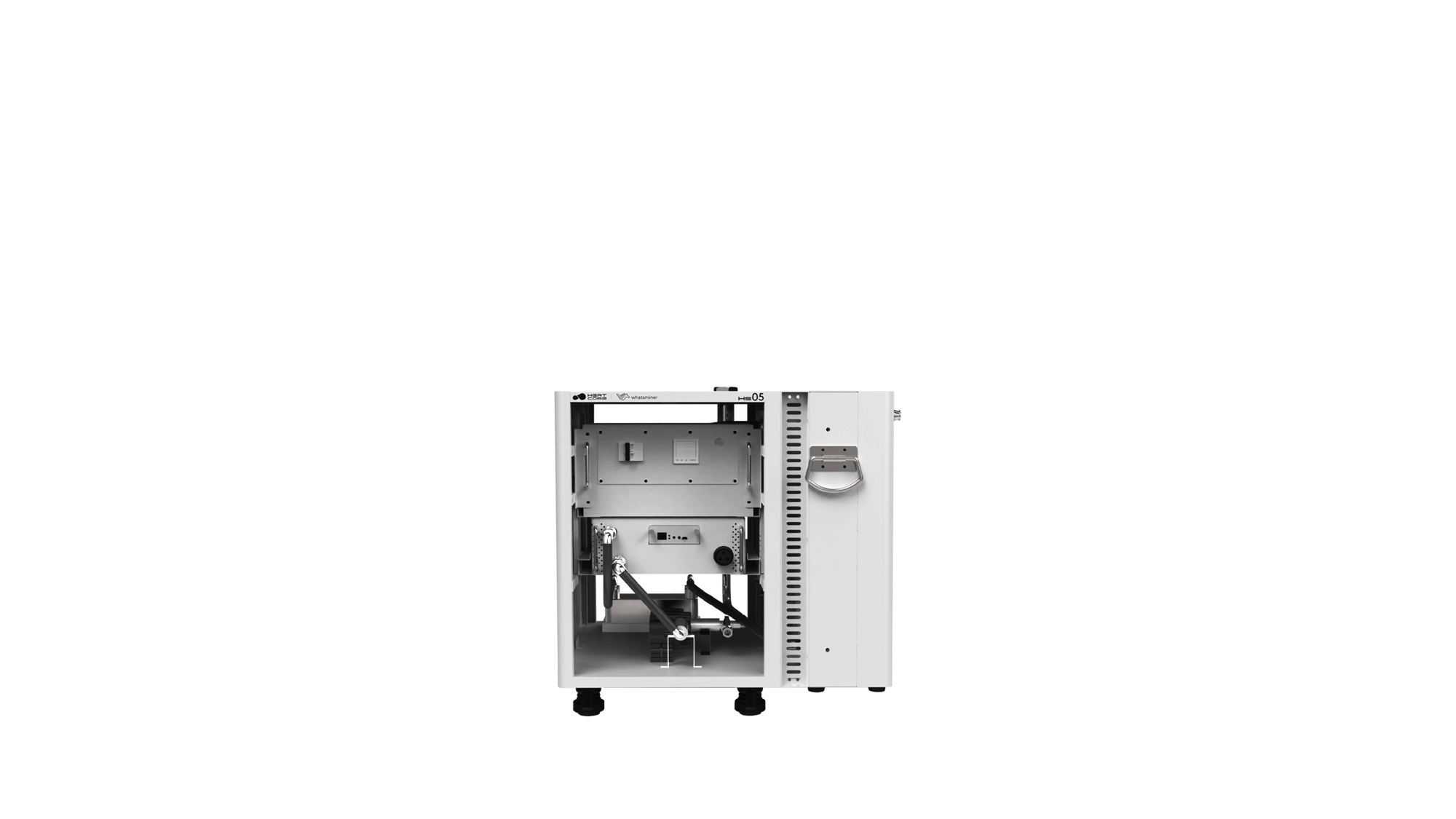

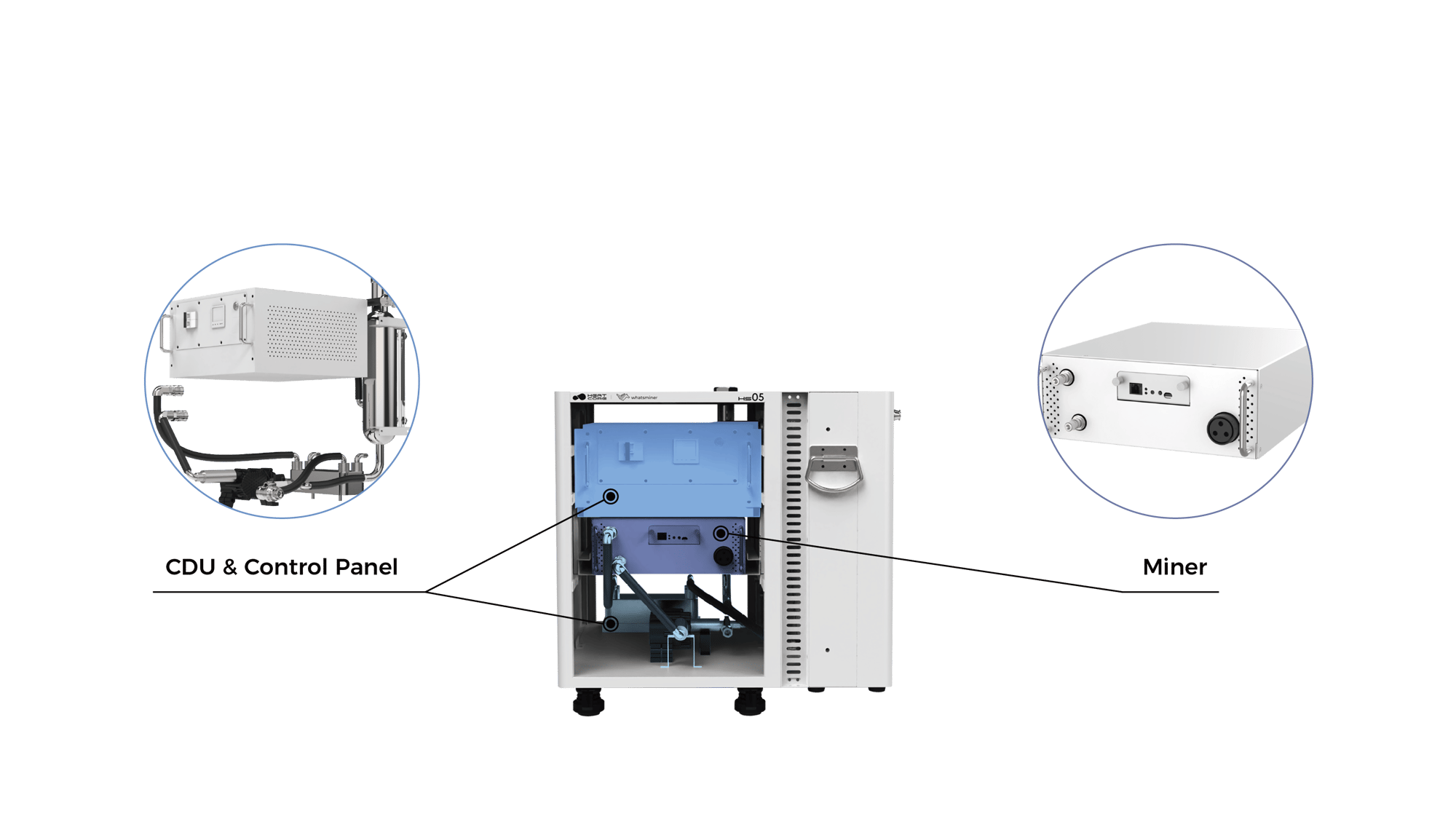

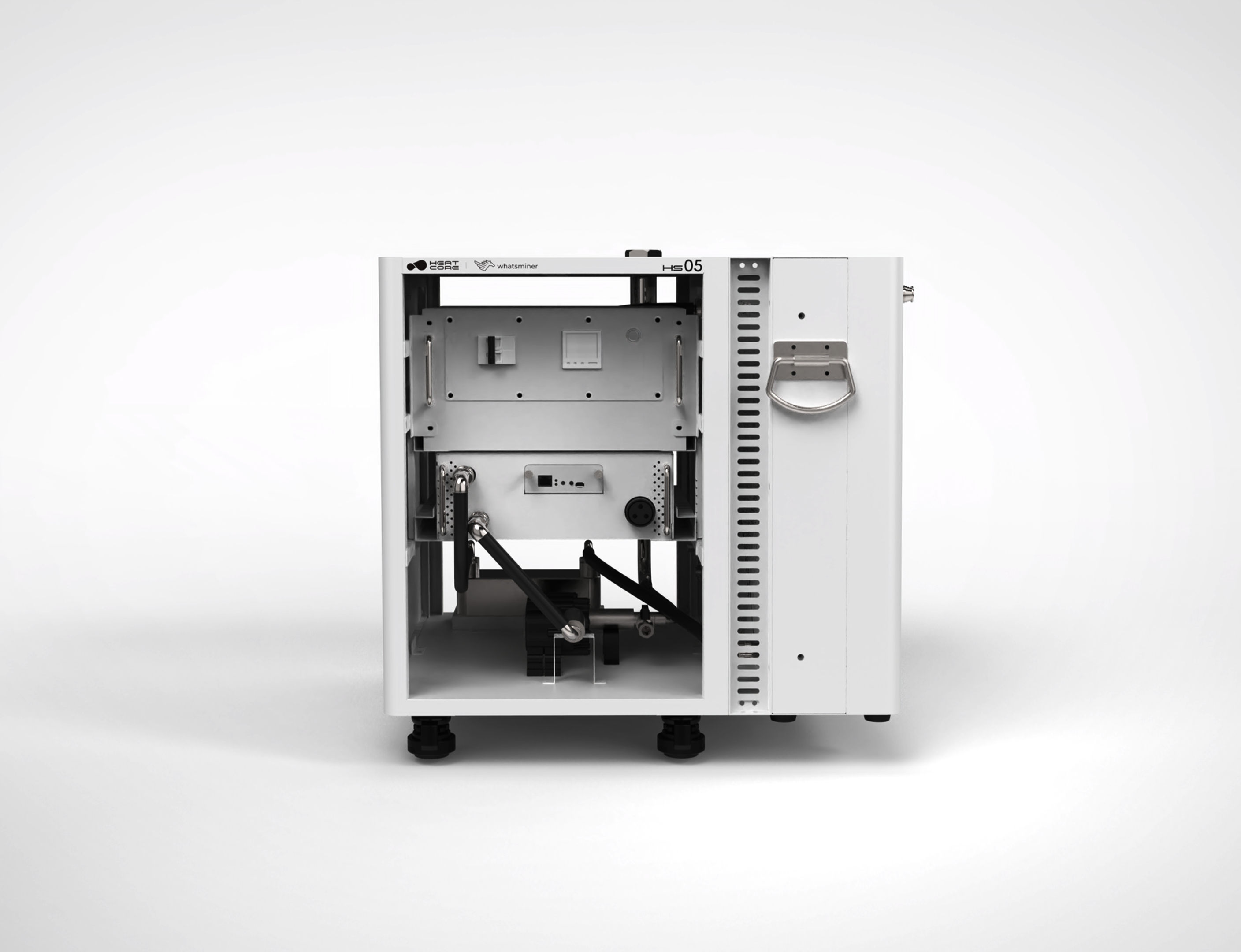

  HS05  Rack Internal Structure

资源 19@4x-1 资源 4@4x-4

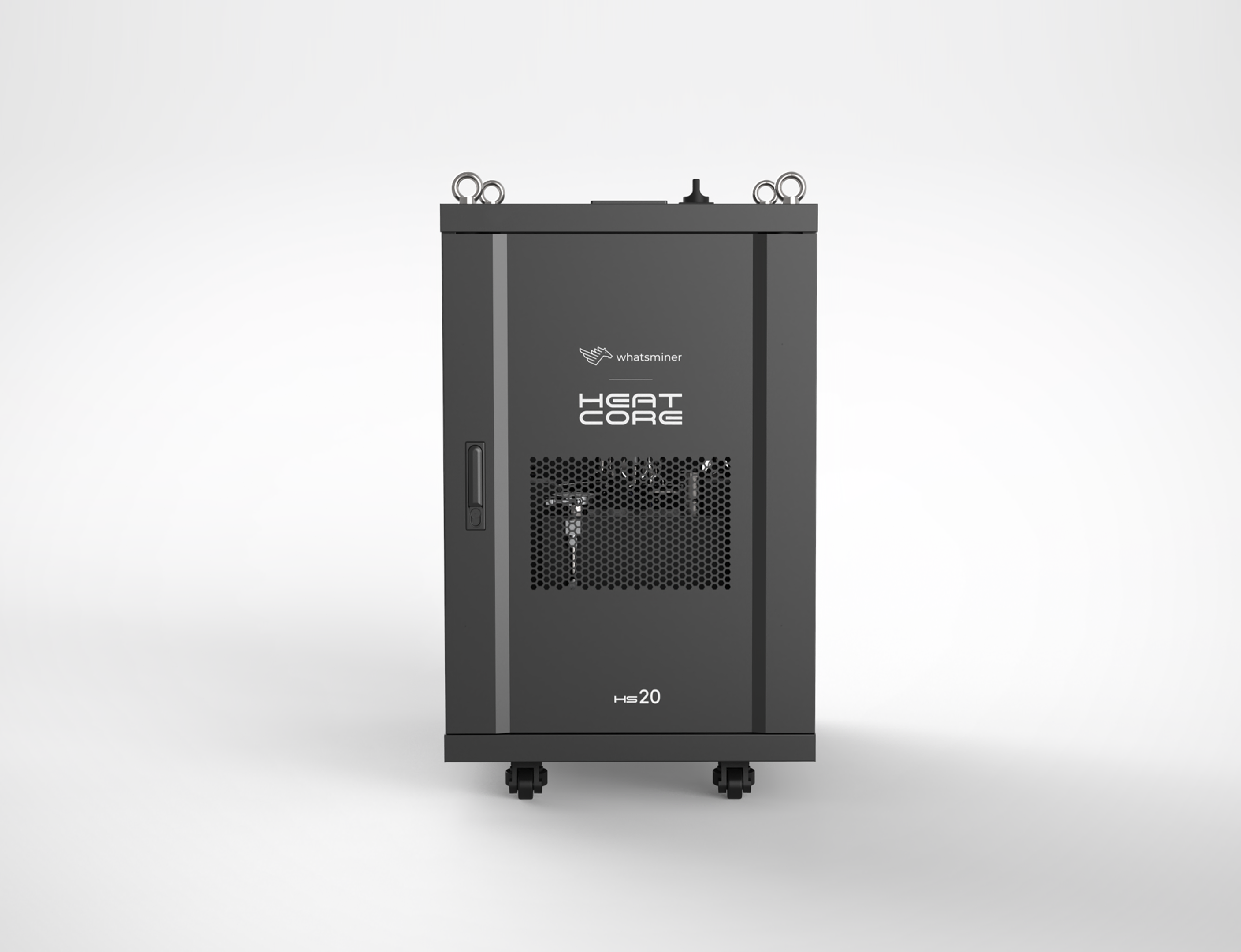

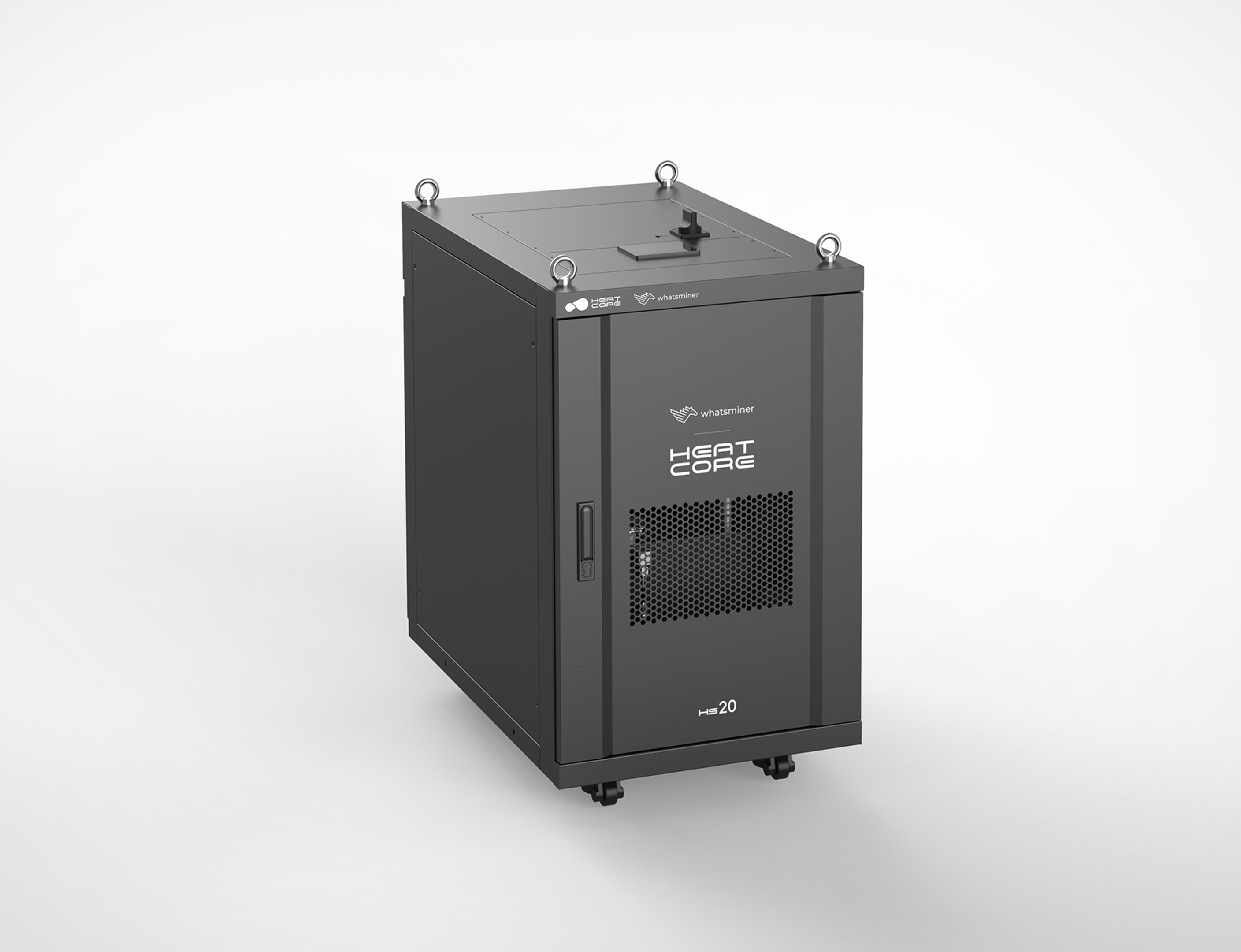

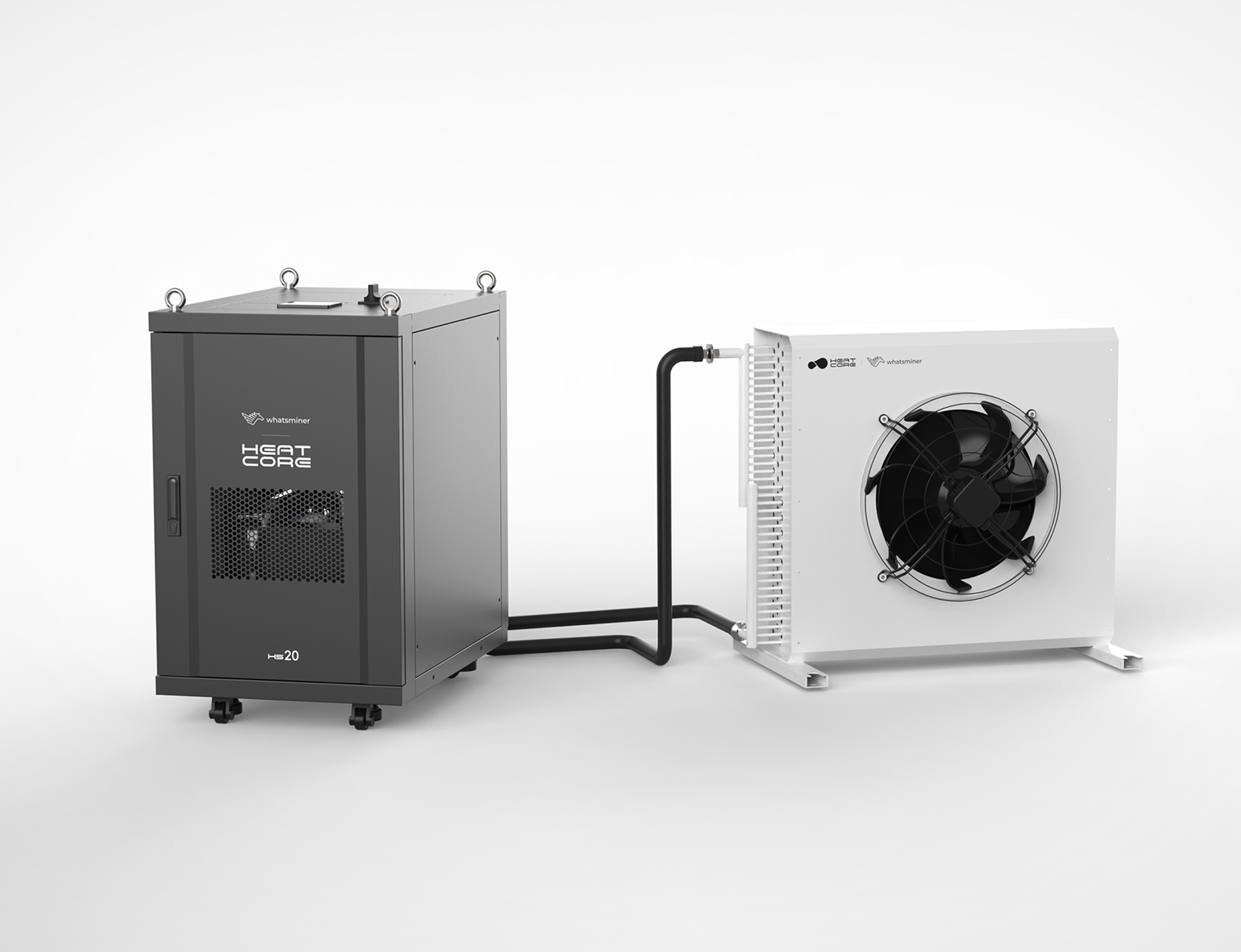

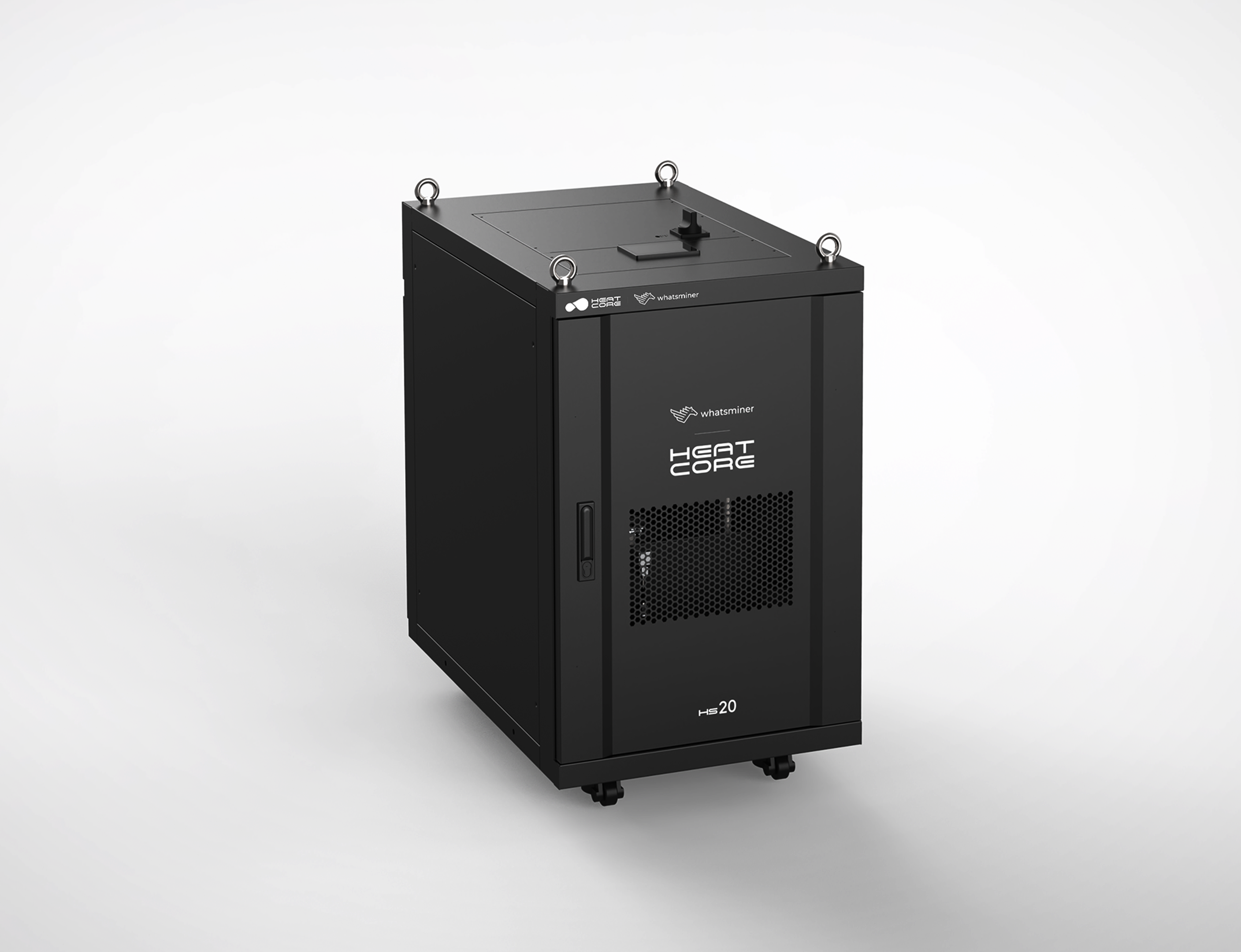

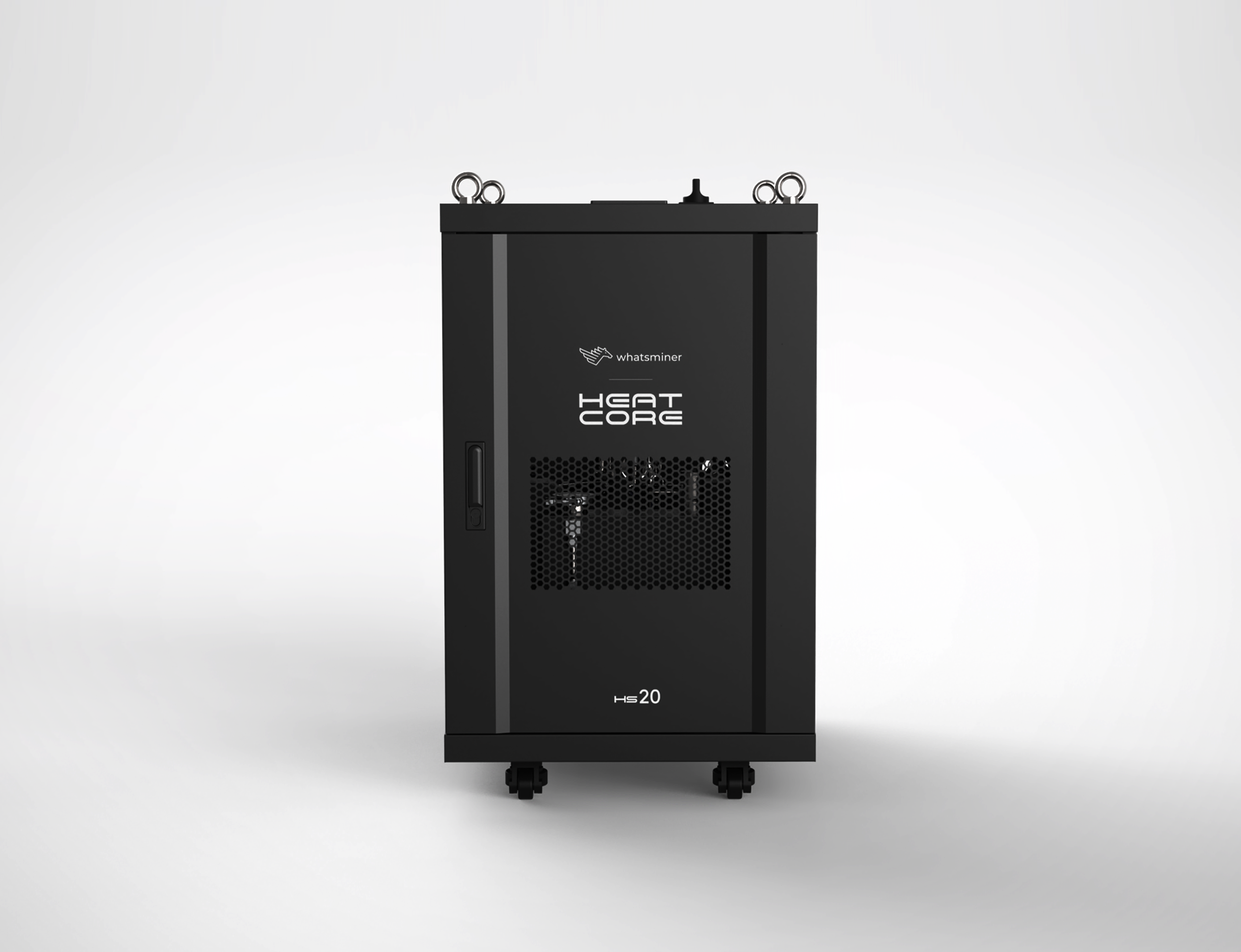

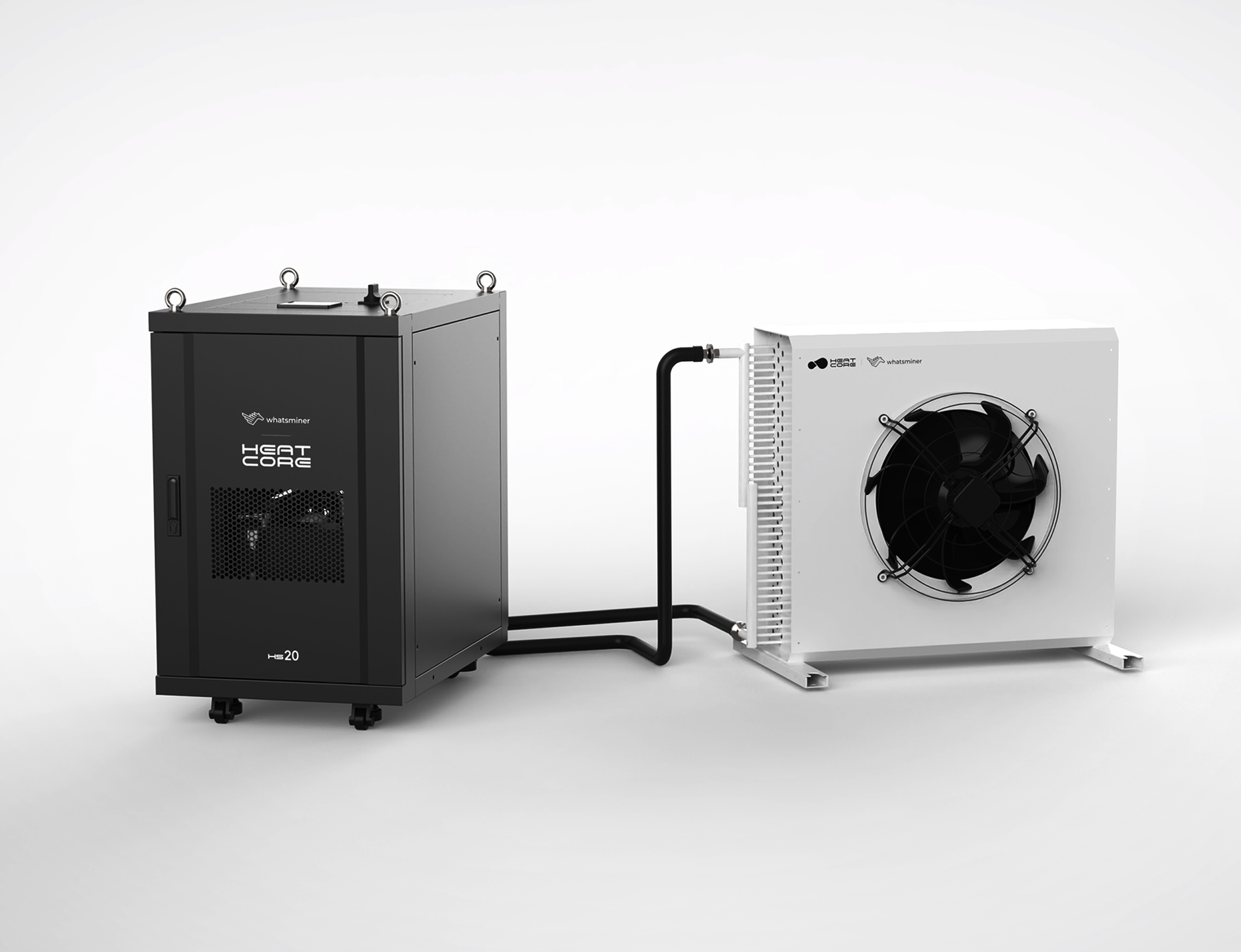

ABOUT  HS20  ↘

HS20 SPECIFICATION
CATEGORY DETAILS
Model HS20
Rack Capacity 2 Units M53/M63/M65 Series Miners
Main Components Included Smart Control System(CDU), PDU, etc.
Dimensions (LxWxH) 600x900x950mm
Dimensions(without dry cooler) (LxWxH) 1050x570x855mm
Net Weight/Operating Weight 180kg/244kg
Net Weight/Operating Weight(without dry cooler) 90kg/99kg
Dry Cooler Net Weight/Operating Weight 3-Ph/N/PE  380-480V 50/60Hz
Max. Power Consumption 22kW
Max. Output Temperature 80°C (after plate heat exchanger, up to 75°C)
Thermal Efficiency 95%
No. of Heat Exchanger 1
DRY COOLER
Outer Size(LxWxH) 955x570x895mm
Power 1kW
Input Power 3-Ph/N/PE  380-480V 50/60Hz
Net Weight 90kg
Cooling Capacity 20kW@35°C
Noise  52dB(A)@10m
EC Fan 1*500mm Fan
Electrical Code for the EU IEC 61439, IEC 60204

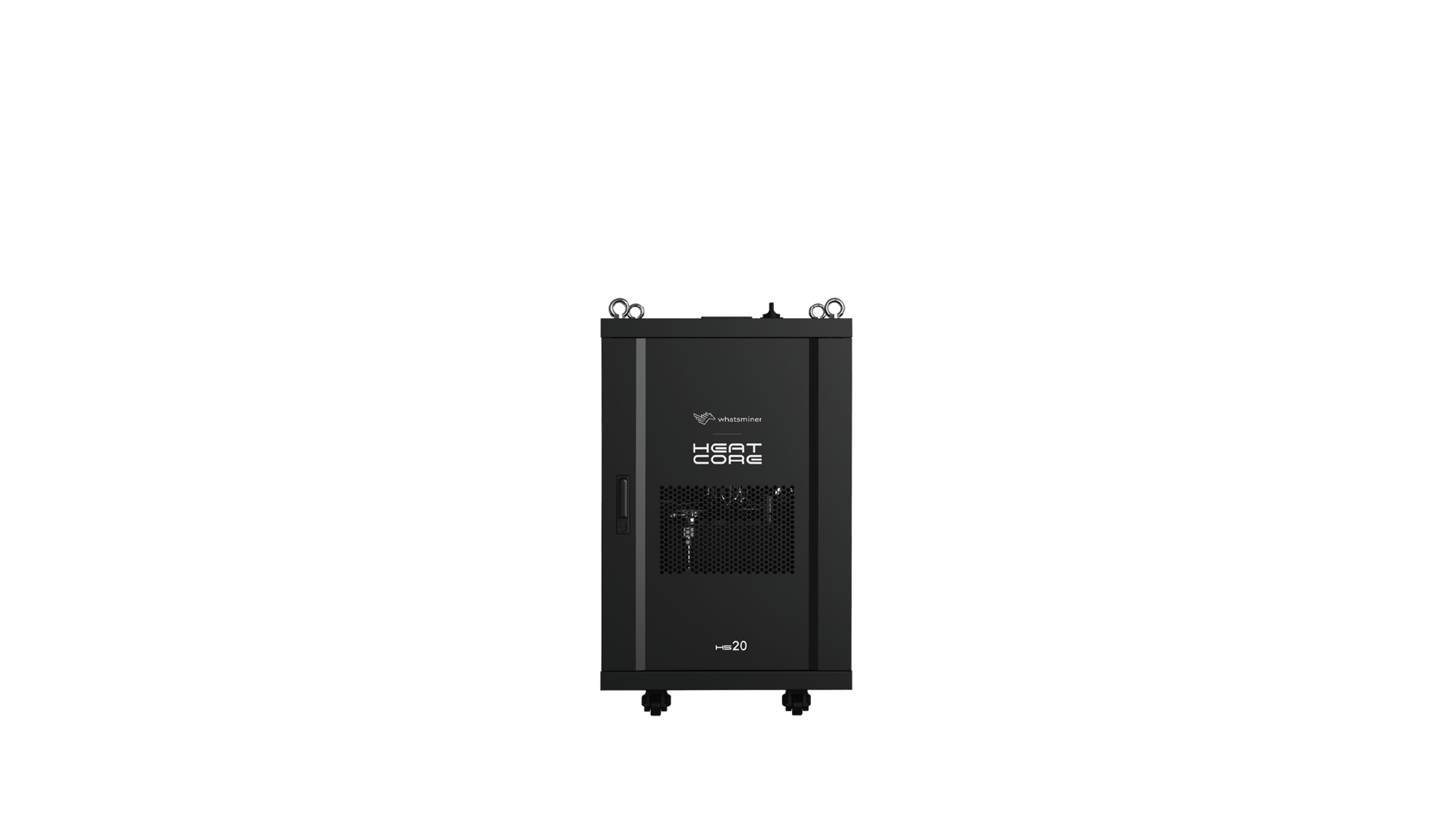

  HS 20

HS 20 SPECIFICATION
Category Details
Model HS05
Rack Capacity 1 Unit M64 series
Main Components Included Smart Control System(CDU), PDU, etc.
Dimensions (L x W x H)-mm 480x600x545mm
Dimensions(without dry cooler) (W x D x H)-mm 480x370x545mm
Net Weight/Operating Weight-kg 35 kg/ 50 kg
Net Weight/Operating Weight(without dry cooler)-kg 20kg/28kg
Input Power Single Ph/N/PE 220-240V 50/60Hz
Max Power Consumption 5.5 kW
Maximum Output Temperature 75
Thermal Efficiency 95%
No. of Heat Exchanger 1
DRY COOLER
Outer Size(L x W x H)-mm 480x230x545mm
Power 264W
Input power Single Ph/N/PE 220-240V 50/60Hz
Net Weight 15kg/22kg
Cooling Capacity 5kW@35°C
Noise  45dB(A)@10m
EC Fan 4*EC Fans
Electrical Code for the EU IEC 61439, IEC 60204

  HS20  System Operation Diagram

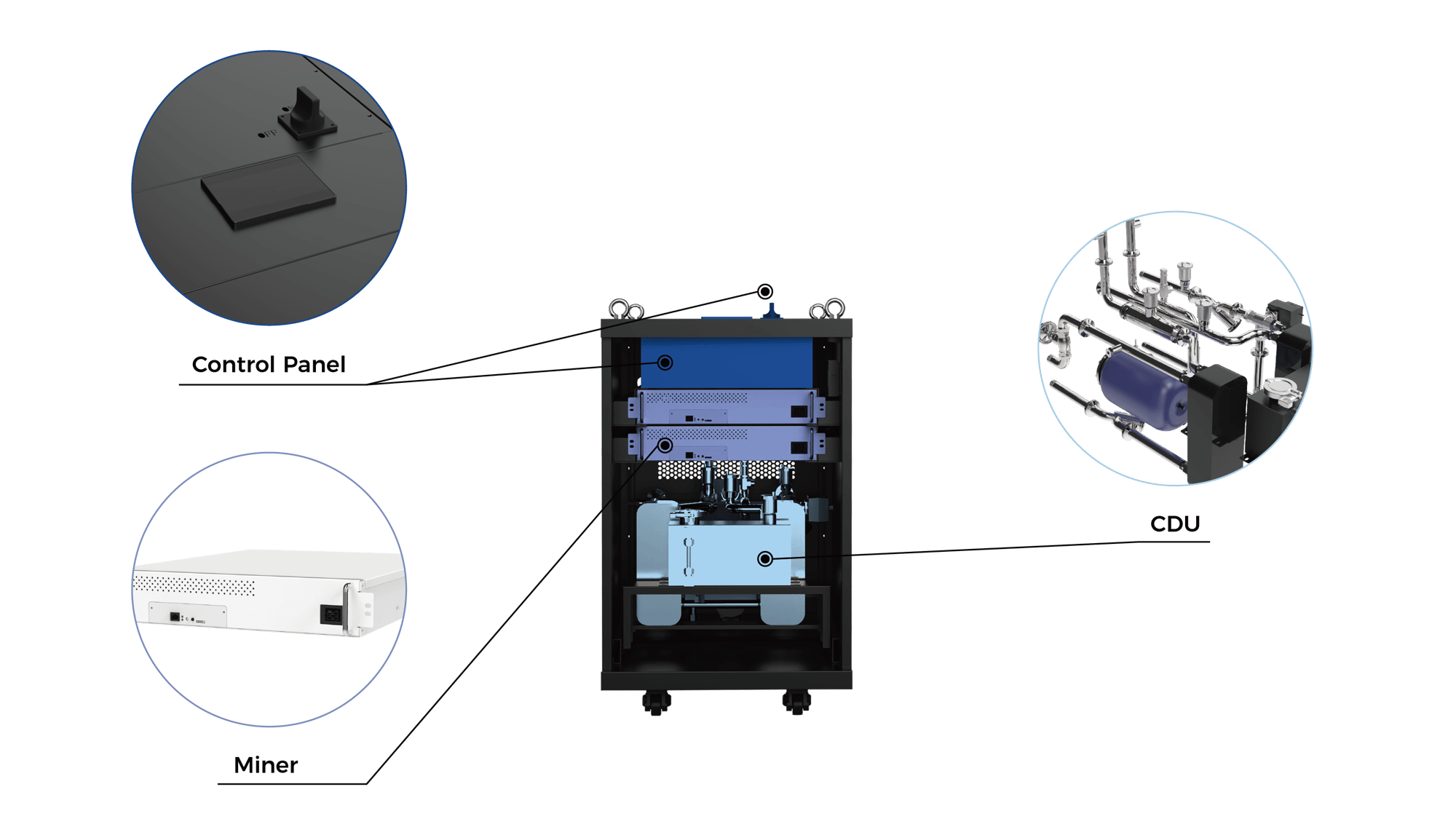

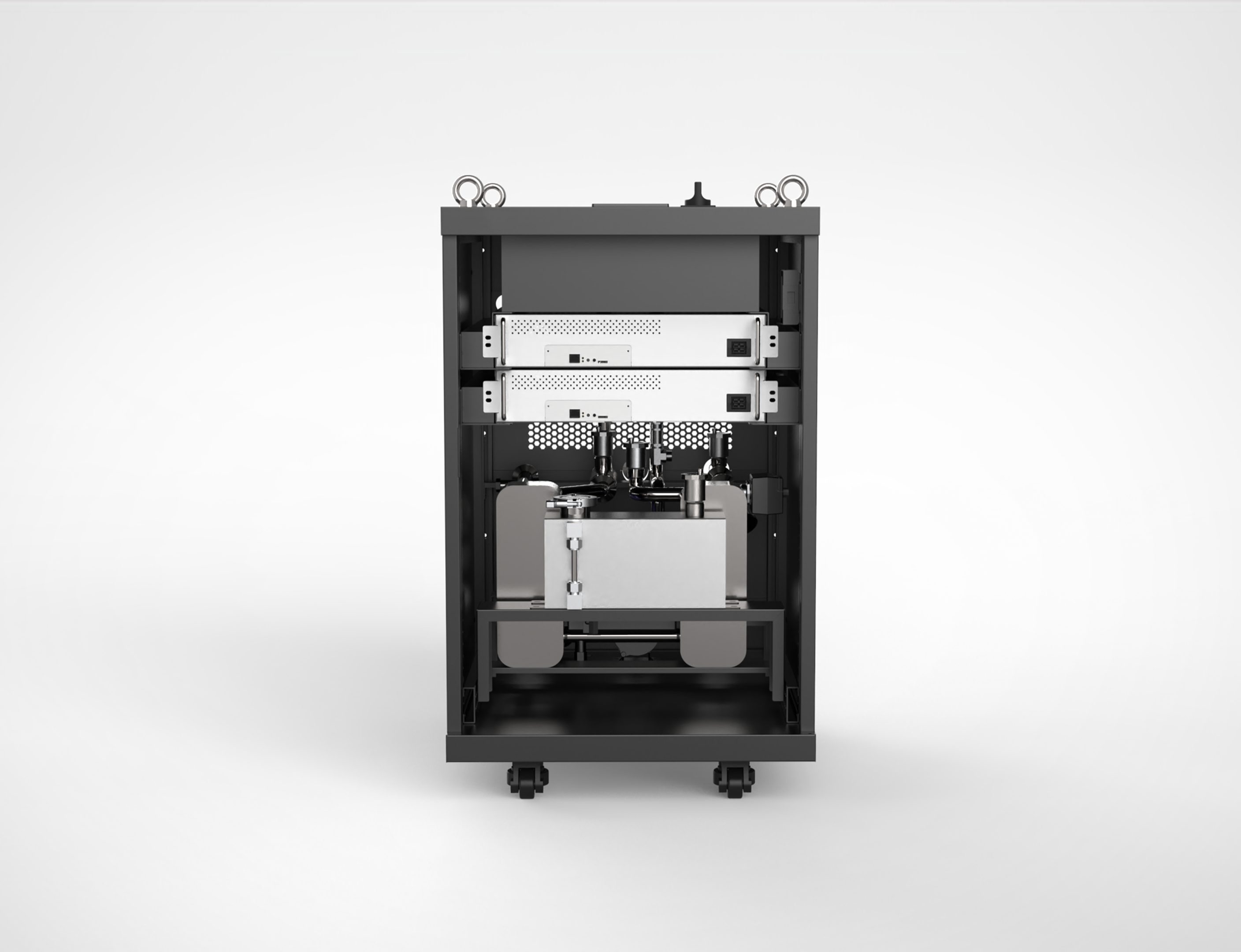

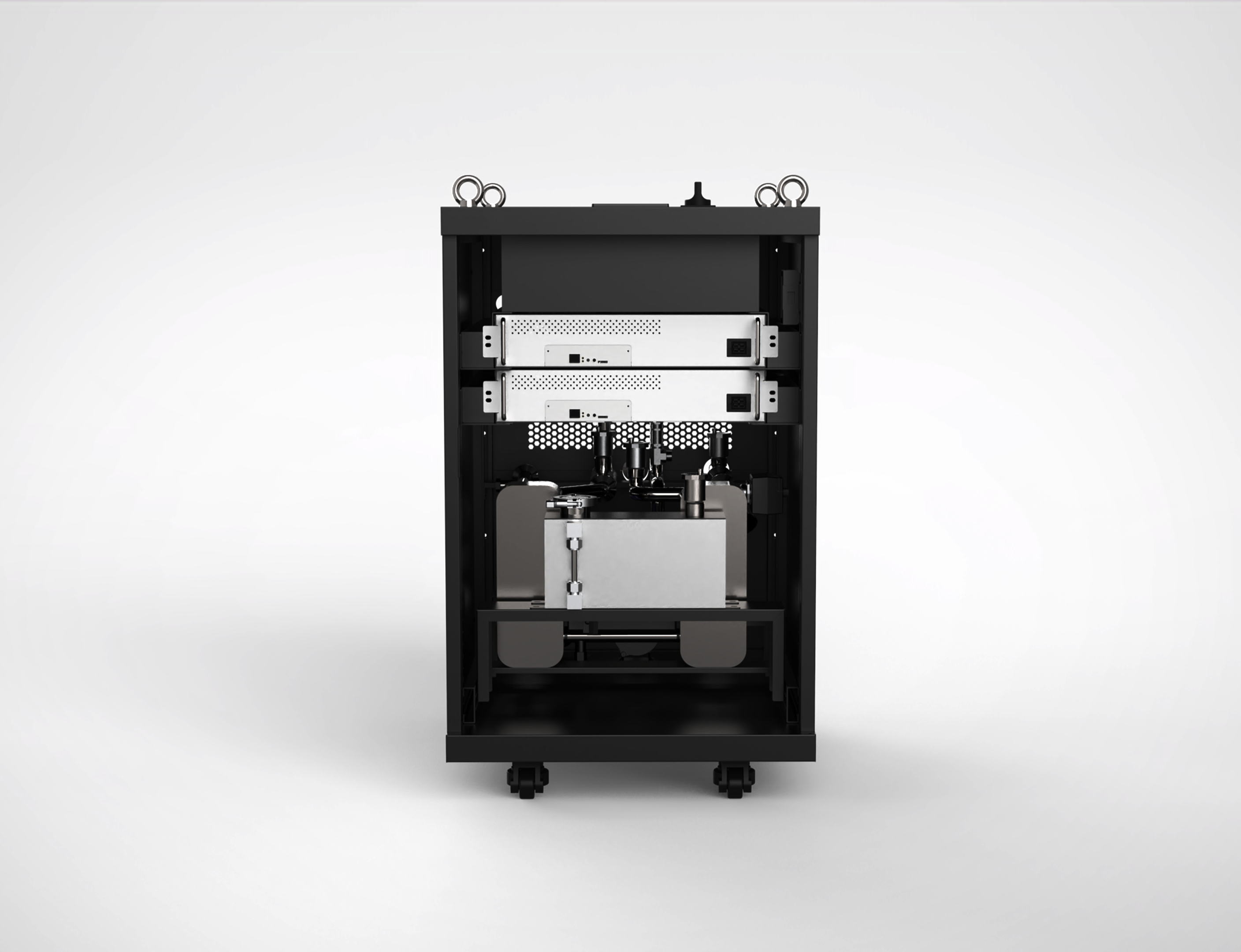

  HS20  Rack Internal Structure

资源 20@4x-2 资源 9@4x-4

HS 20

HS20 SPECIFICATION

Category Details
Model HS05
Rack Capacity 1 Unit M64 series
Main Components Included Smart Control System(CDU), PDU, etc.
Dimensions (L x W x H)-mm 480*600*545
Dimensions(without dry cooler) (W x D x H)-mm
Net Weight/Operating Weight-kg 35 kg/ 50 kg
   Net Weight/Operating Weight(without dry cooler)-kg
   Input power Single Ph/N/PE 200-240V 50/60Hz
   Max Power Consumption 6 kw
   Maximum output Temperature
   Thermal Efficiency 95%
   No. of heat exchanger 2
   Electrical Code for the US
   Electrical Code for the EU
