X SERIES

X series is our container solution. It is easy to move, plug and play. We have diverse size from 20-foot(1Mw~1.6Mw) to 40-foot(1.2MW dry cooler integrated, 2.4~3.6MW). The main power distribution cabinet is also integrated.

XS1000 & XS1200 & XS1600 & XS2400
X series is our containerized solution, designed for portability and plug-and-play. We have diverse size from 20-foot(1MW~1.6MW) to 40-foot(1.2MW dry cooler integrated, 2.4~3.6MW). The main power distribution cabinet is also integrated.

资源 30@4x
Outdoor Rapid Deployment

Pre-fabricated CDU, IT rack, electrical, and network systems in a 40/20 HQ container enable rapid on-site installation without new construction

资源 31@4x
Energy Efficient

Supports up to 20 Whatsminer servers per rack with hydro-cooling for low PUE (<1.05), zero water use, low noise, and reduced energy costs

资源 32@4x
Safe & Compliant

Fully compliant: UL-certified components, meets CSA standards and NEC/IEC regulations, CSA Field Evaluation supported.Water-electricity isolation design for safety

资源 33@4x
Intelligent O&M​

Miner inlet & outlet water temperature fluctuation within ±2°C.
Automated replenishment, leak detection, overpressure protection, and pressure differential within ±1 bar



XS1000 & XS1200 & XS1600 & XS2400
X series is our containerized solution, designed for portability and plug-and-play. We have diverse size from 20-foot(1MW~1.6MW) to 40-foot(1.2MW dry cooler integrated, 2.4~3.6MW). The main power distribution cabinet is also integrated.

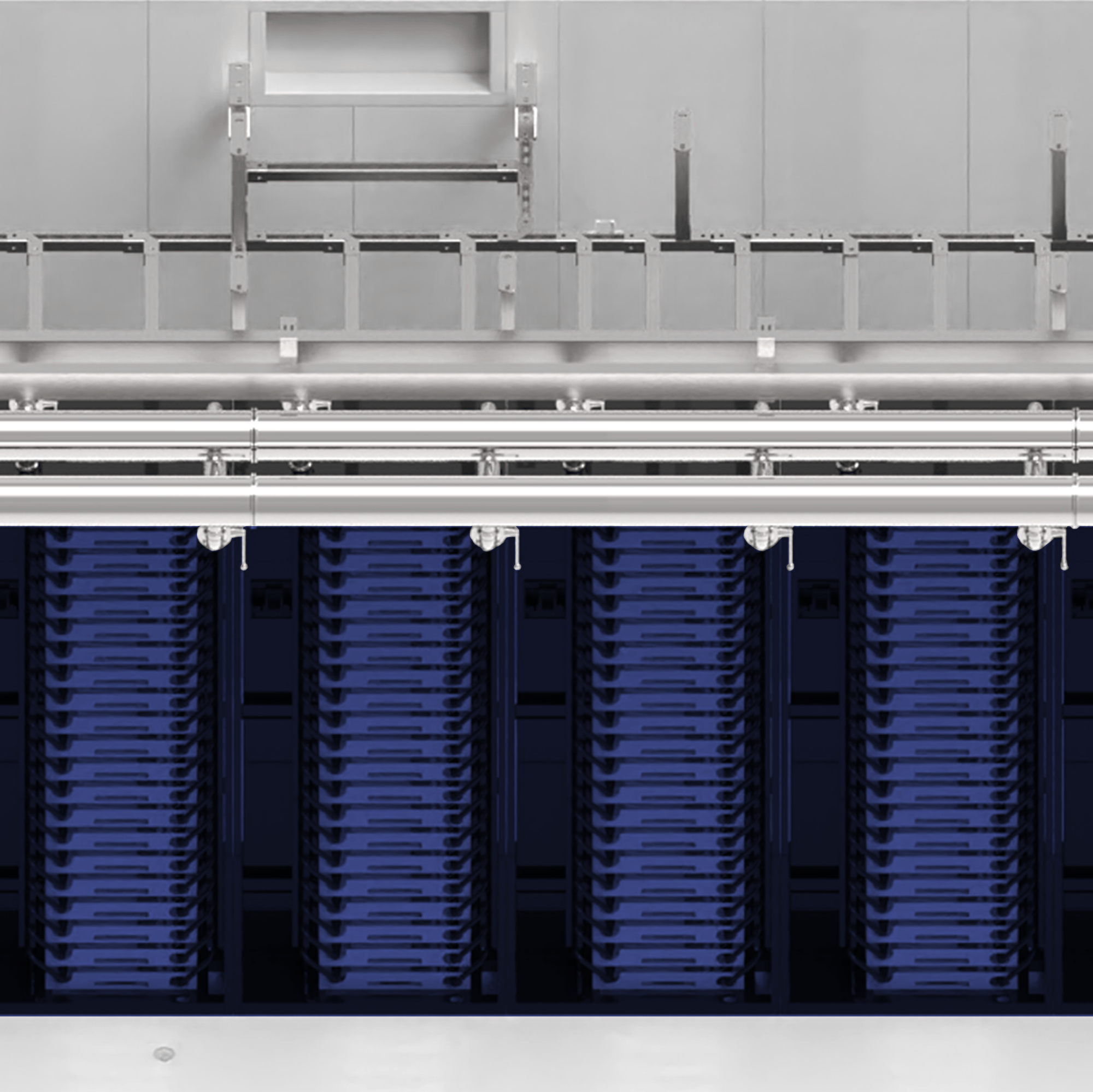

n柜

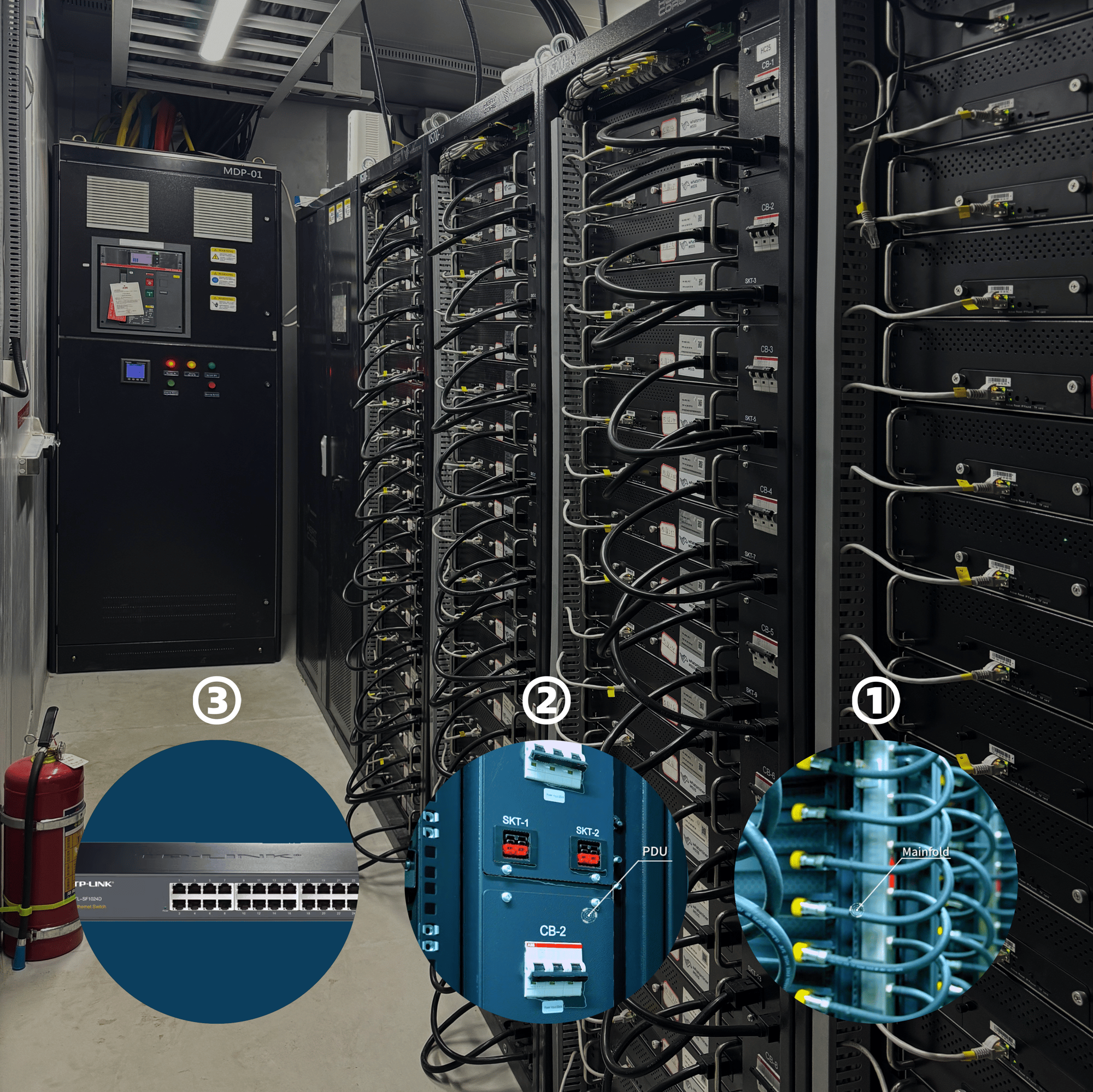

RACK

① Manifold & Quick Connector
② PDU
③ Server Slots (including 1U space for access layer swtich)



Scalability & High-Density Space
It features a modular design for easier production, repair, and future expansion.
Each N-Rack integrates 2U Server Slots, PDU, Manifold, Switch, and supports up to 20 servers.

Premium Quality for Reliability
With the rack constructed from Q235 steel, manifold from 304 Stainless steel, branch hoses from EPDM material, the it rack is designed for premium high strength and corrosion- resistance.

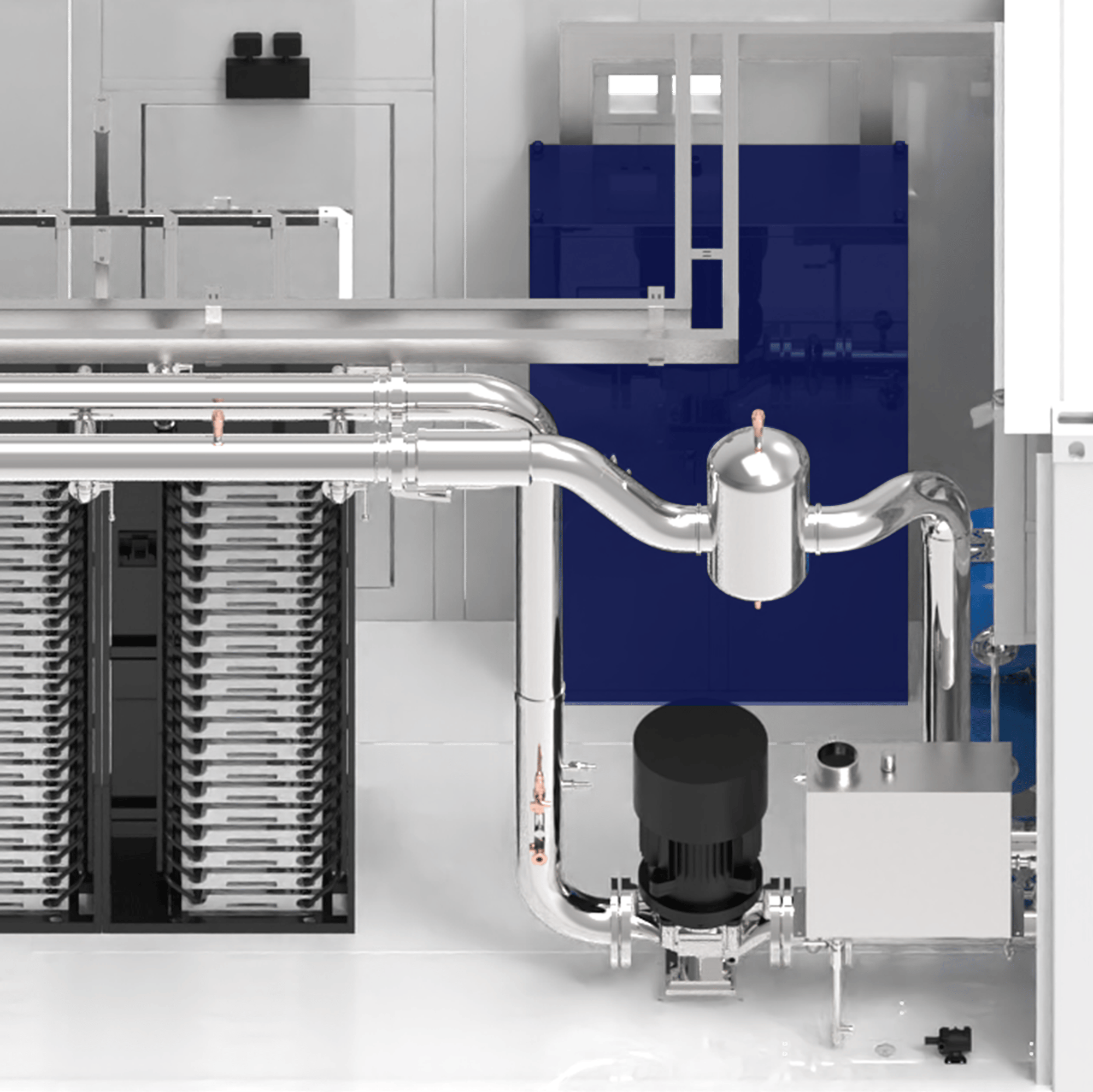

cdu

CDU

① Coolant Distribution Unit (pump，expansion tank, filling tank, air vent valve, sensors, Y Strainer etc)



Stable Thermal & Pressure Control
Innovative PLC-based control logic ensures automatic coolant replenishment, temperature fluctuation (within ±2℃) and supply-return pressure difference (within 1.0 bar) control, guaranteeing stable server operation.

O&M with Visibility & Serviceability
With the touchscreen HMI（Human Machine Interface ) and HeatCore Cloud, operators could have easy access to set critical data(pressure difference, target temperature, pump), monitor the trend curve , get notified for the alarms.

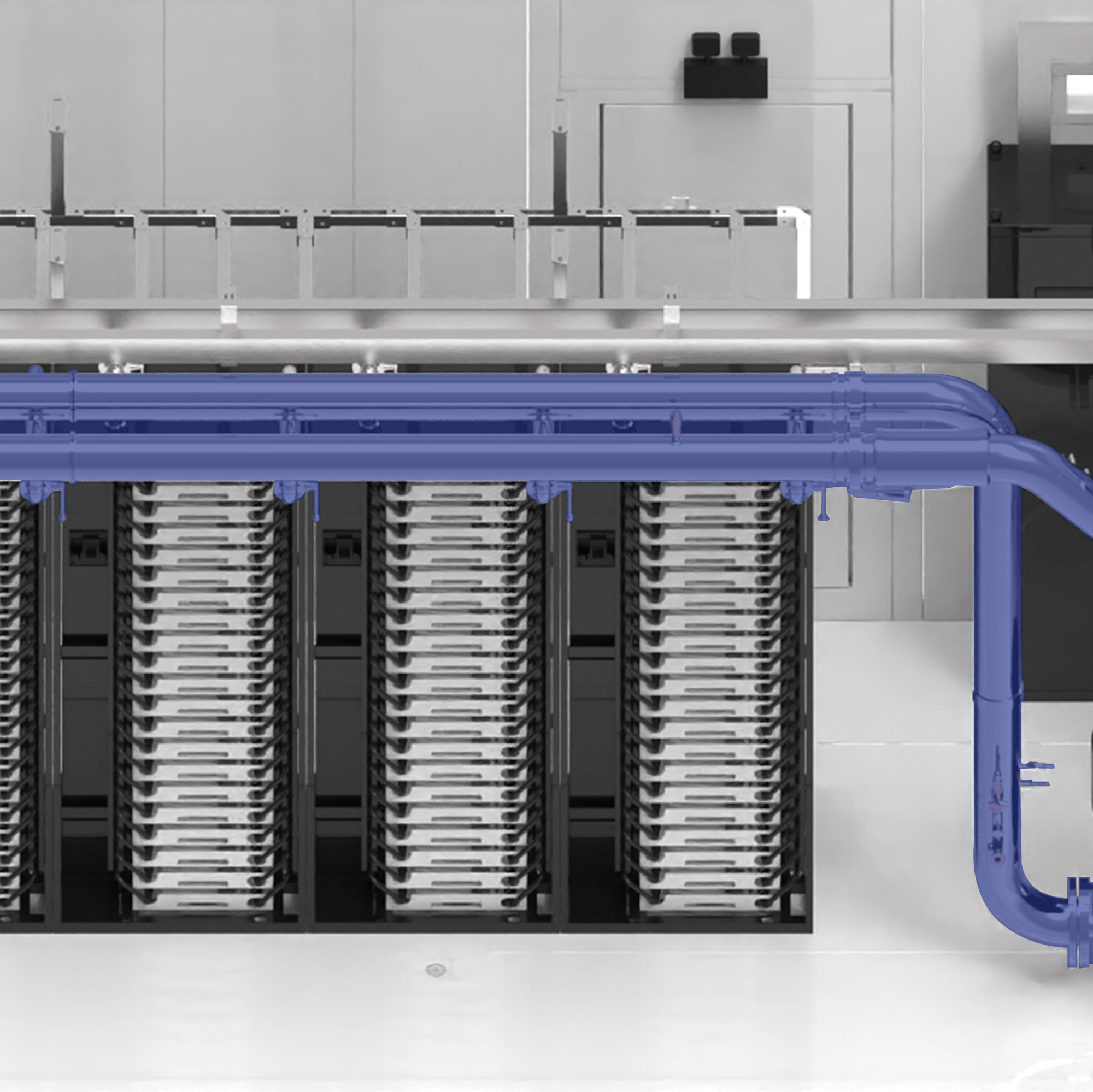

管路

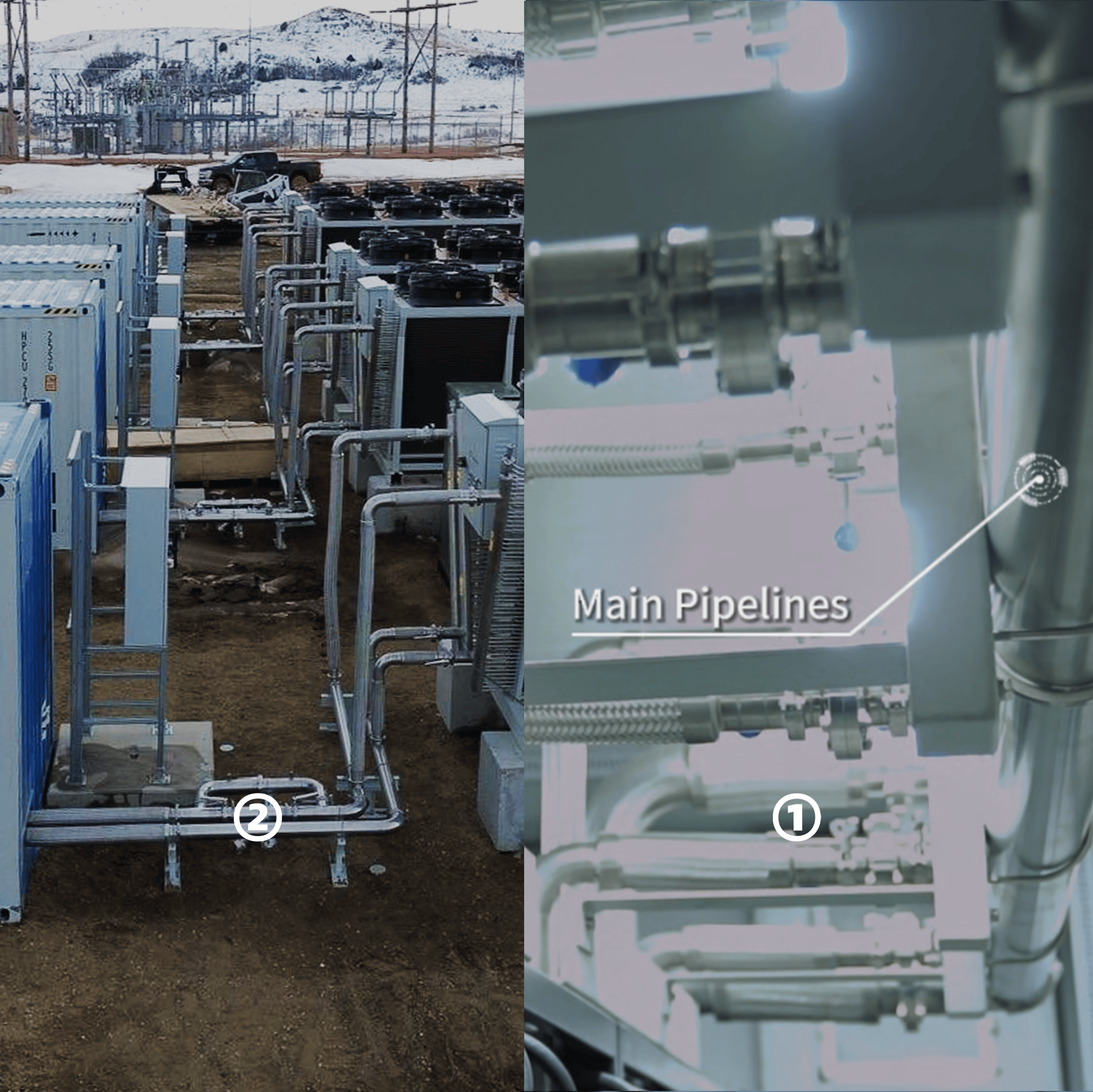

CONNECTION PIPELINE

Connection Pipeline Including:
① Connection Between CDU and Server Rack
② Connection Between CDU and Dry Cooler



Piping: Prefabricated High Quality Material & Reliable Design
The main pipeline is constructed with sanitary-grade 304 stainless steel. Fluid simulation analysis is applied to ensures uniform flow distribution across branches

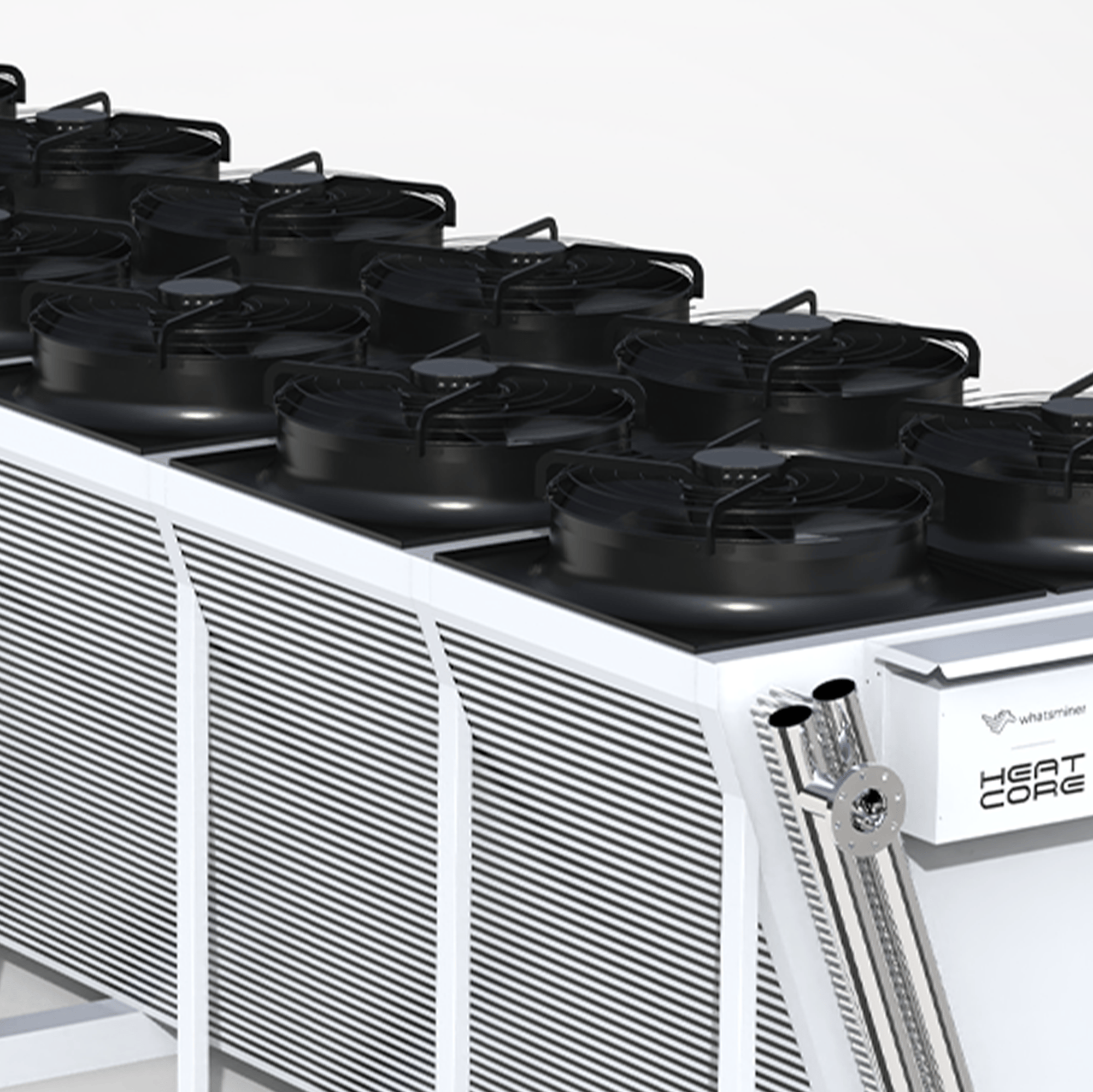

dc

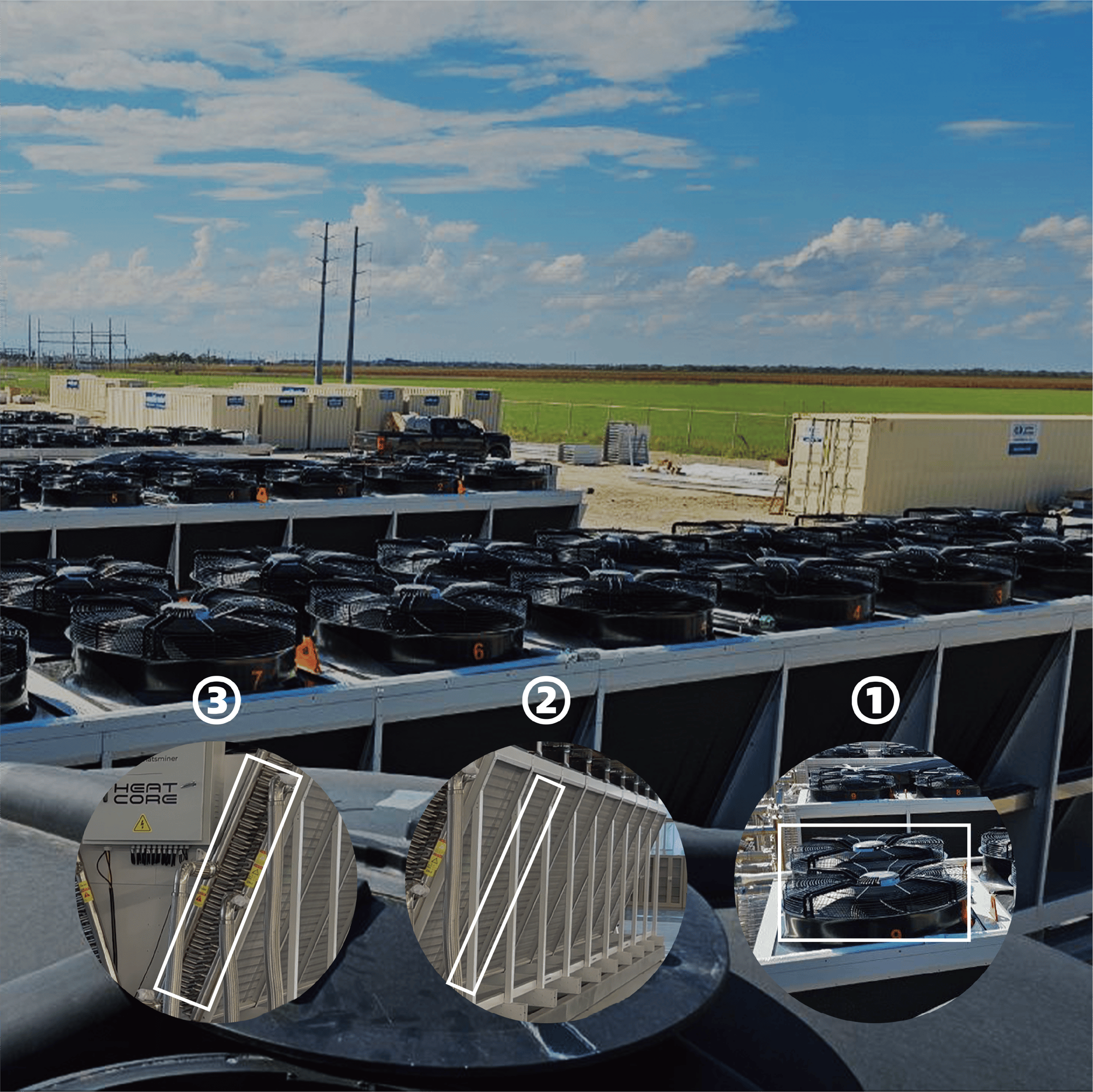

DRY COOLER

① Fans
② Fins
③ Coil Tube



Zero or Reduced Water Consumption
environmentally sustainable and ideal for regions with water scarcity or strict regulations.

Corrosion-Resistant Structure Design
constructed with high-grade Type 304L stainless steel tubing and aluminum fins as standard.

Pre-Mounted & Wired Design
Fans, motors are pre-wired at the factory to meet local standard such as UL, CE,  reducing costs associated with field wiring. Each fan is also allocated with an independent electrical protection.

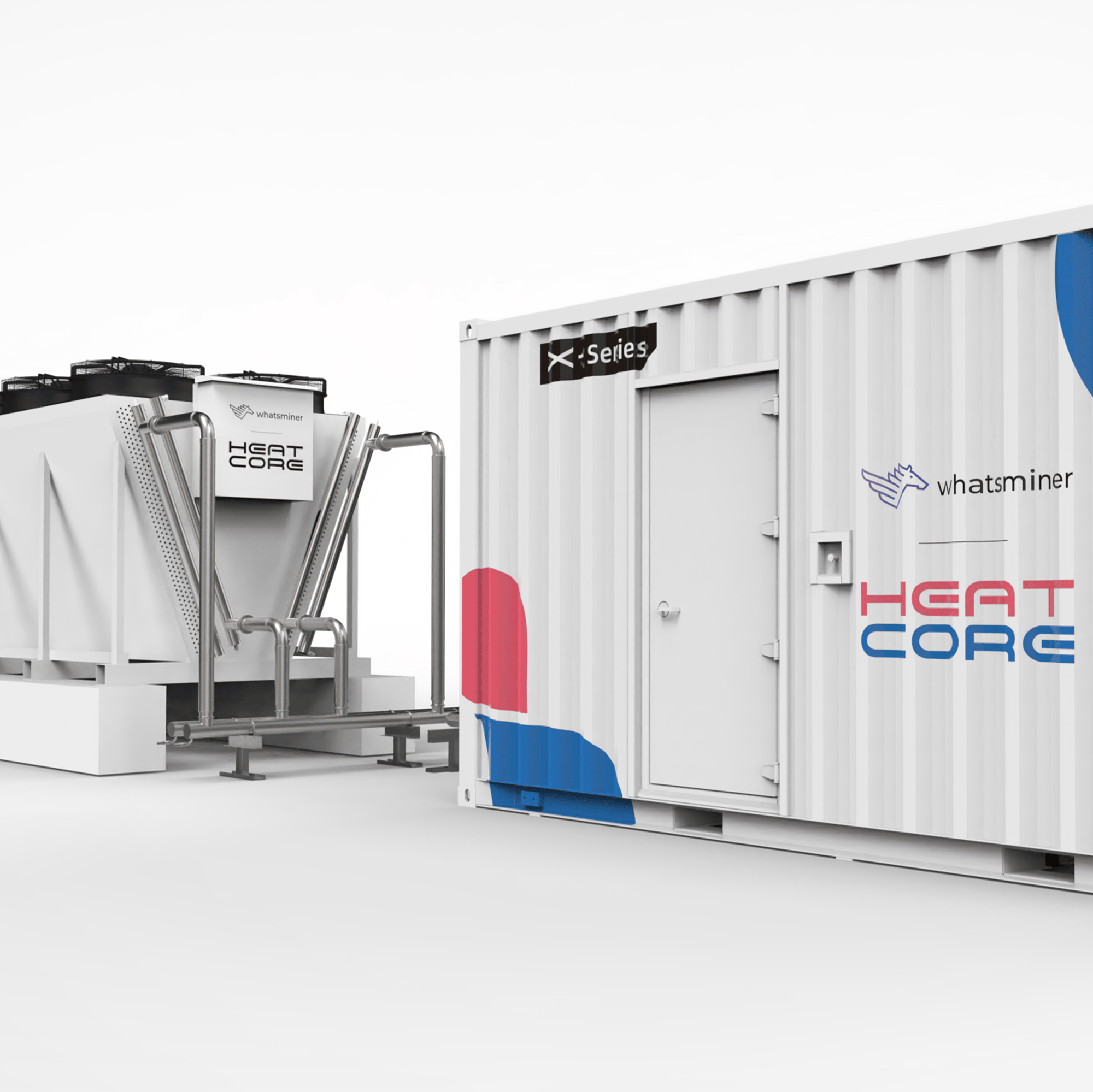

其他

OTHER KEY INFRASTRUCTURE

① Power Supply (main switchboards with ACB,  power meter integrated)
② Escape Door and Main Entrance Door
③ Security Camera Survalence
④ Lighting Protection and Gounding System
⑤ Network System
⑥ Smoke and Fire Alarm
⑦ Emergency Lighting



可选项-1

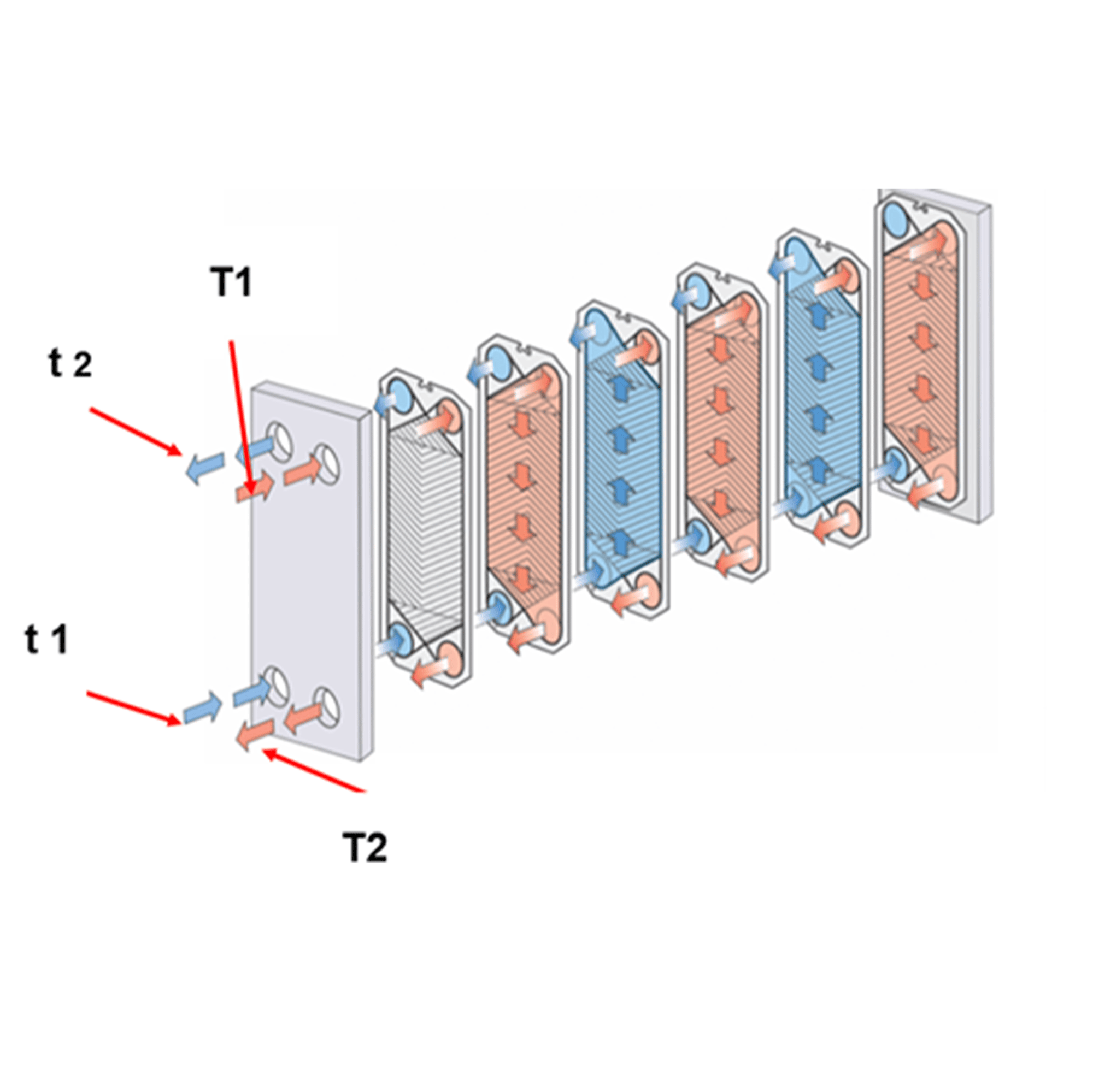

PHE(OPTIONAL)

① Support Cutomization Case By Case

Rack

CDU

Connection Pipeline

Dry Cooler

Other Key Infrastructure

PHE(optional)

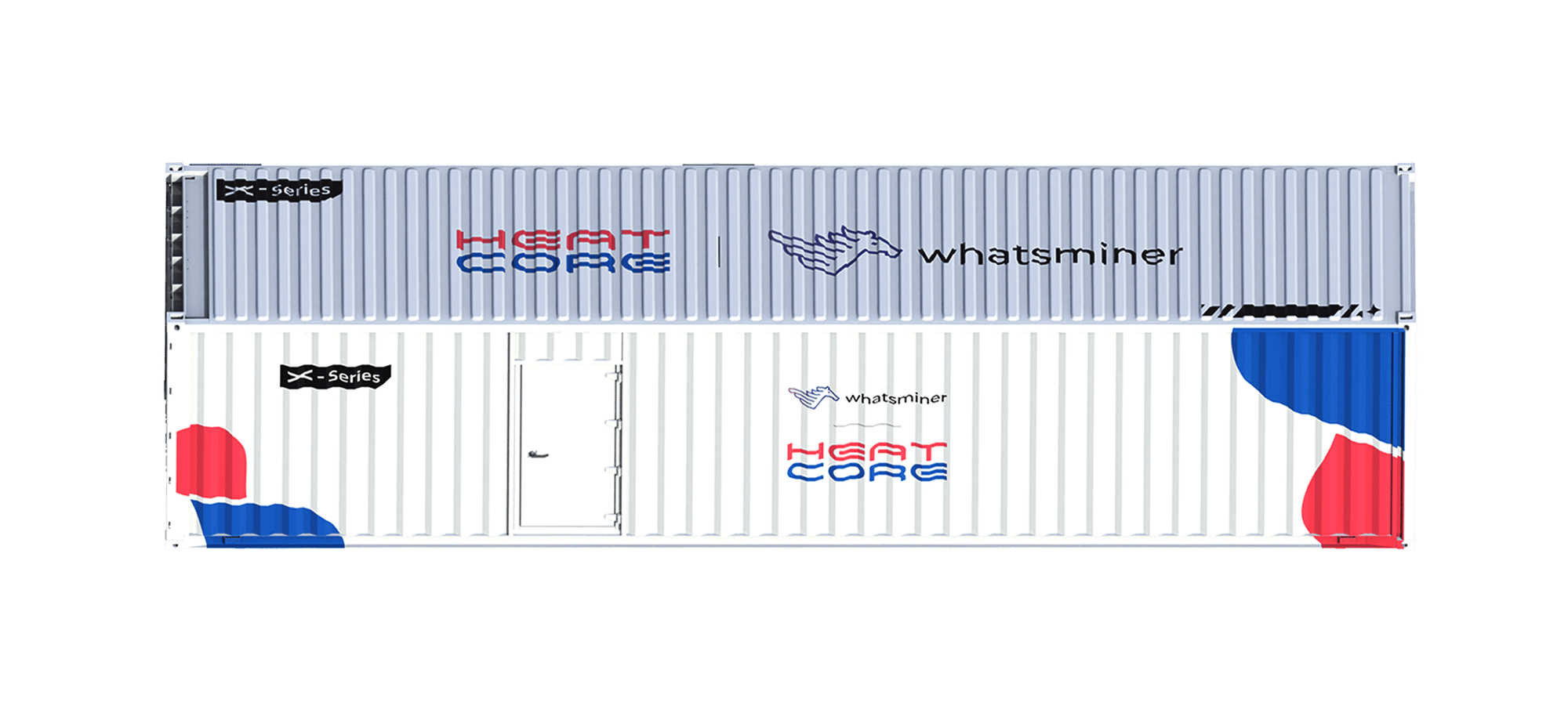

ABOUT  XS1200  ↘

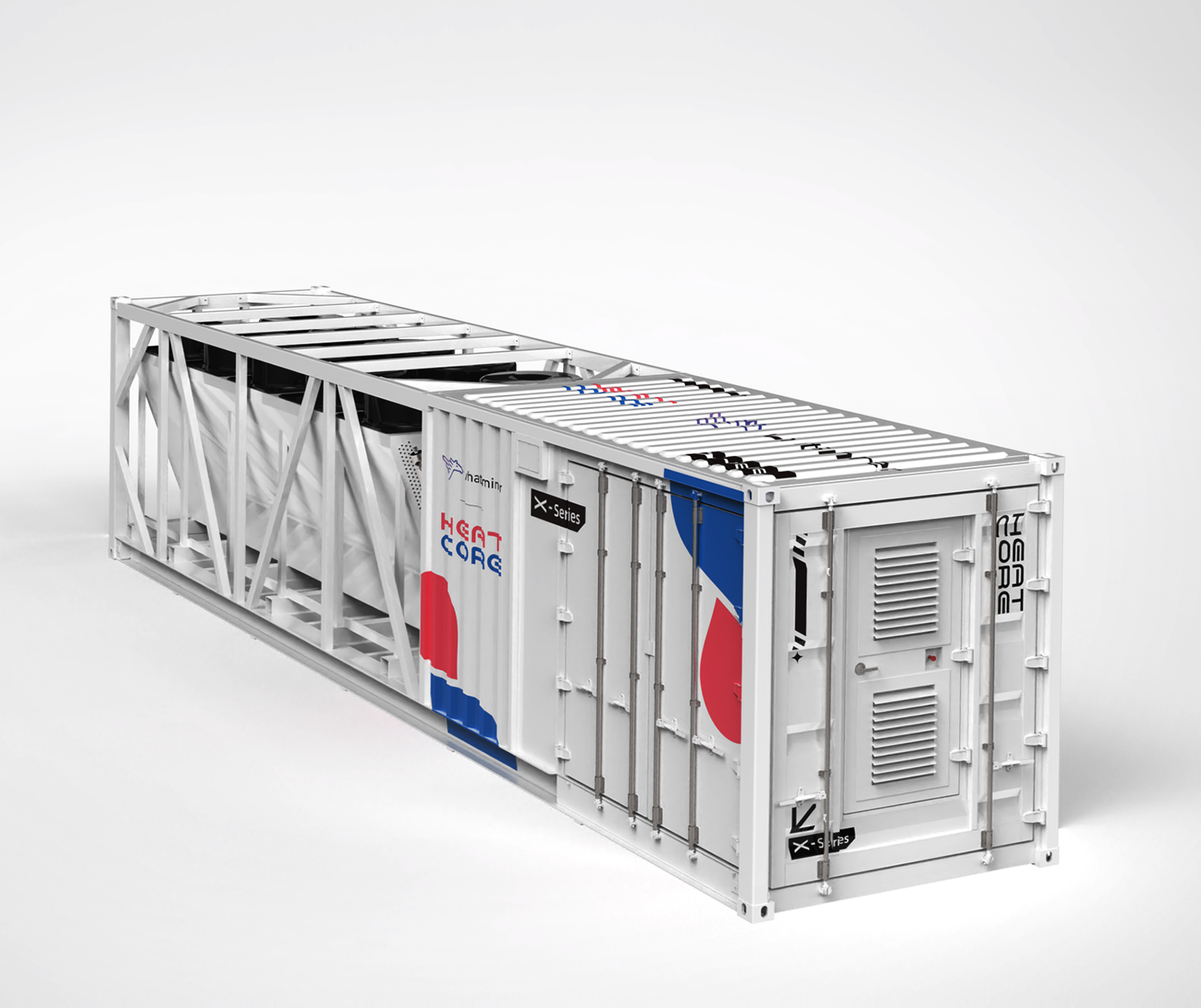

1200-3

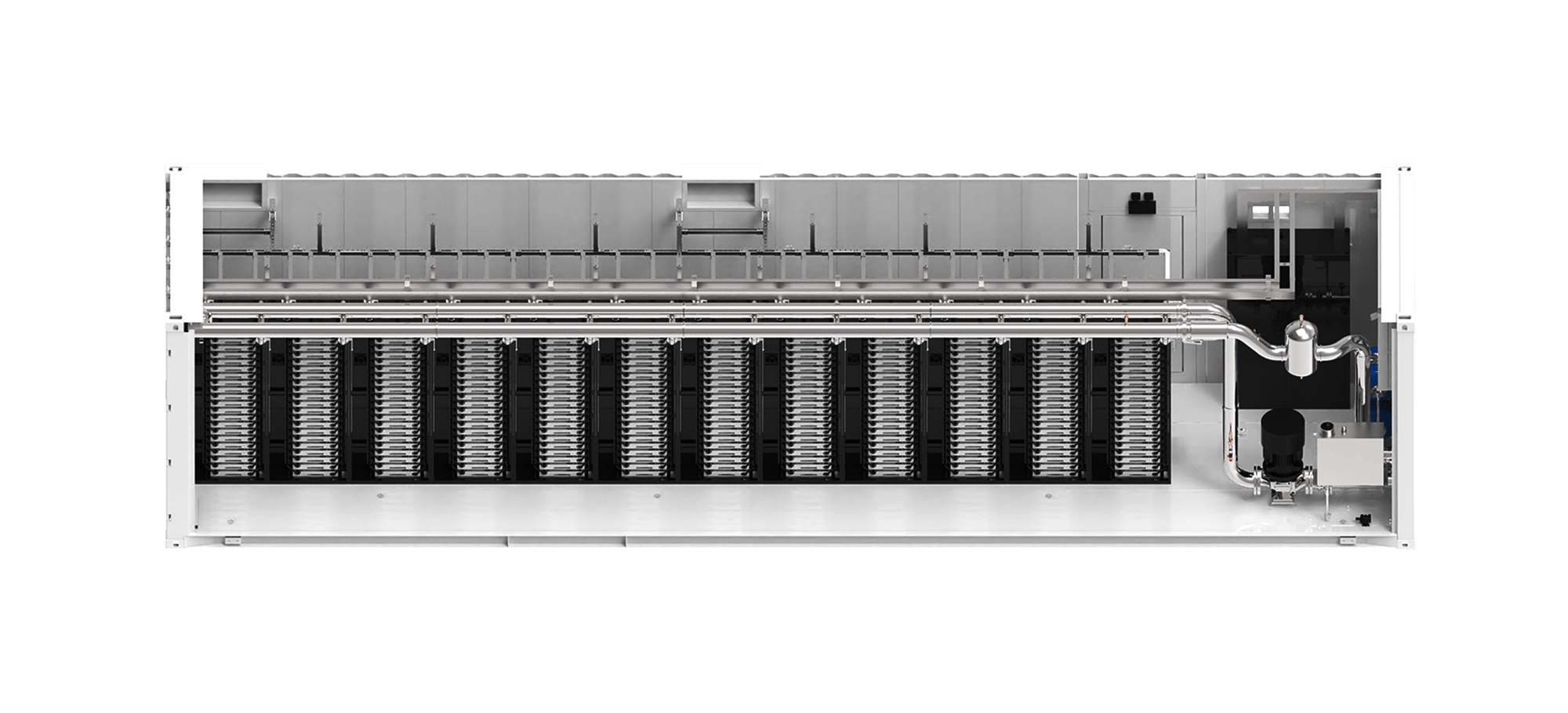

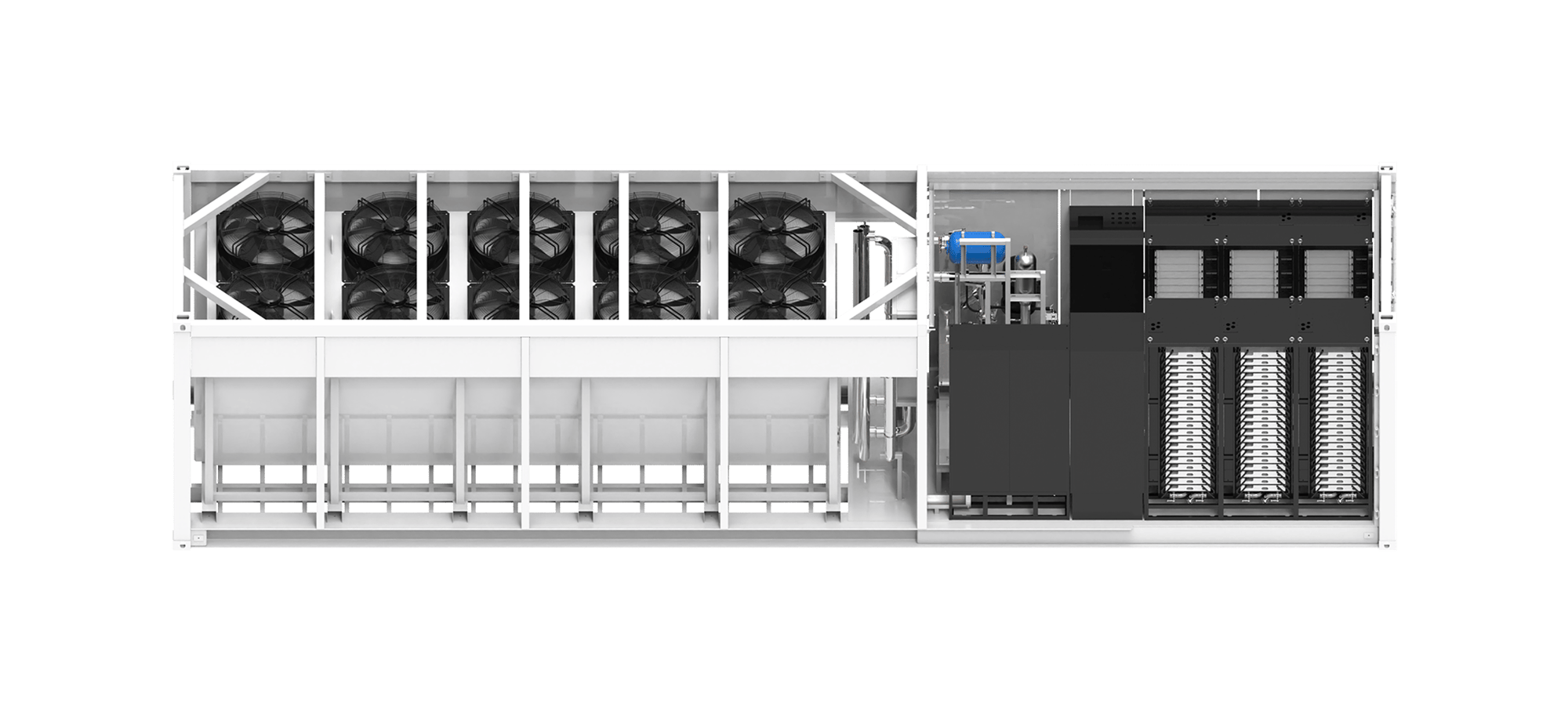

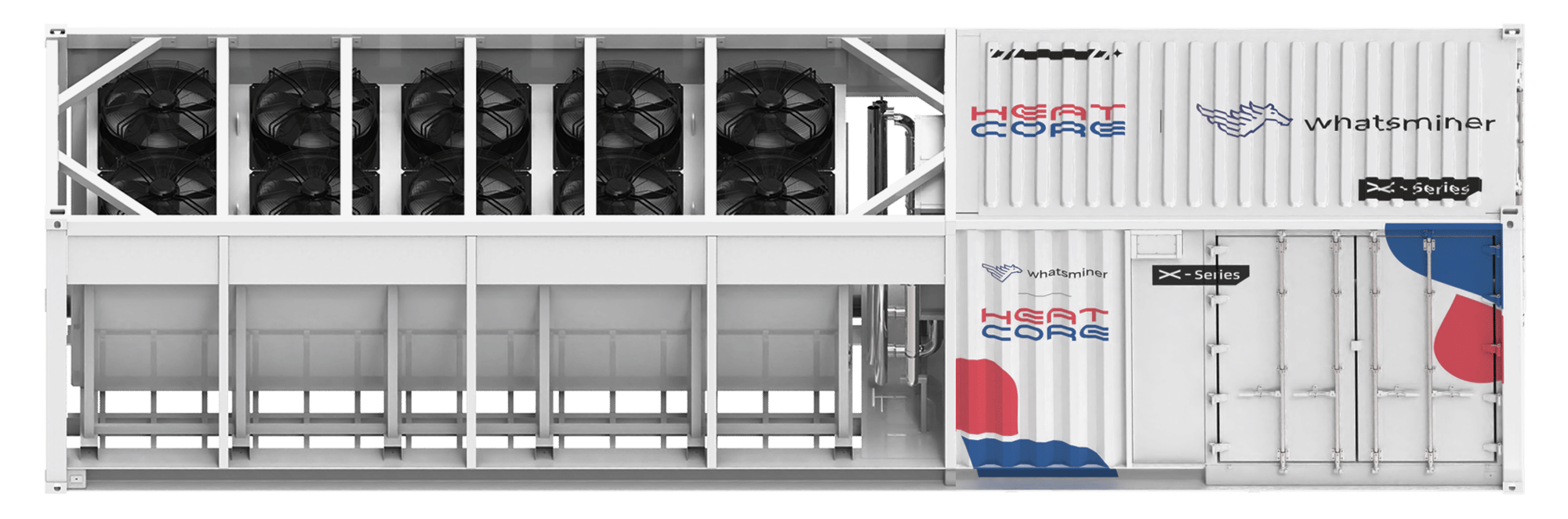

XS1200  Rack Internal Structure

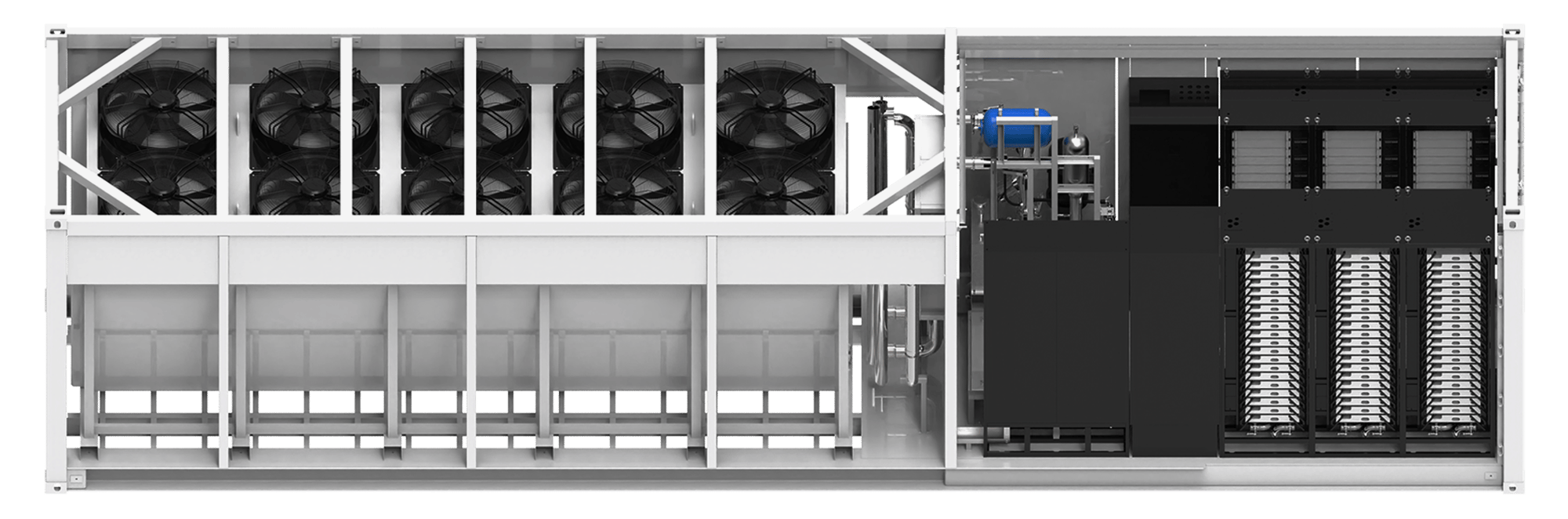

内部-1 外部-1
CATEGORY DETAILS
Model XS1200
Container‘s Capacity 120 units
Main Components Included Smart Control System(CDU)/Switchboard/6*IT Rack/Dry Cooler
Container‘s Size 40ft-HQ
Container‘s Net Weight/Operating Weight 14000kg/18200kg
Input Power 3-Ph/PE 380-480V 50/60Hz
Max. Power Consumption 1256kW
Max. Output Temperature 75°C
Thermal Efficiency 95%
Heat Exchangers Customized on Demand
Dry Coolers Customized on Demand
Pipe System Customized on Demand
Electrical Code for the US NFPA 70, UL508A, UL2755, UL50E, UL891
Electrical Code for the EU IEC 61439, IEC 60204
Certification CE or CSA Field Evaluation
Note: Customizable Design According to Specific Requirements​​

XS 1000 & XS 1200 & XS 1600 & XS 1200



Outdoor Rapid Deployment​

Pre-fabricated CDU, IT rack, electrical, and network systems in a 40/20 HQ container enable rapid on-site installation without new construction

Energy Efficient​

Supports up to 20 Whatsminer servers per rack with hydro-cooling for low PUE (<1.05), zero water use, low noise, and reduced energy costs.

Safe & Compliant​

Fully compliant: UL-certified components, meets CSA standards and NEC/IEC regulations, CSA Field Evaluation supported.
Water-electricity isolation design for safety

Intelligent O&M​

Miner inlet & outlet water temperature fluctuation within ±2°C.
Automated replenishment, leak detection, overpressure protection, and pressure differential within ±1 bar

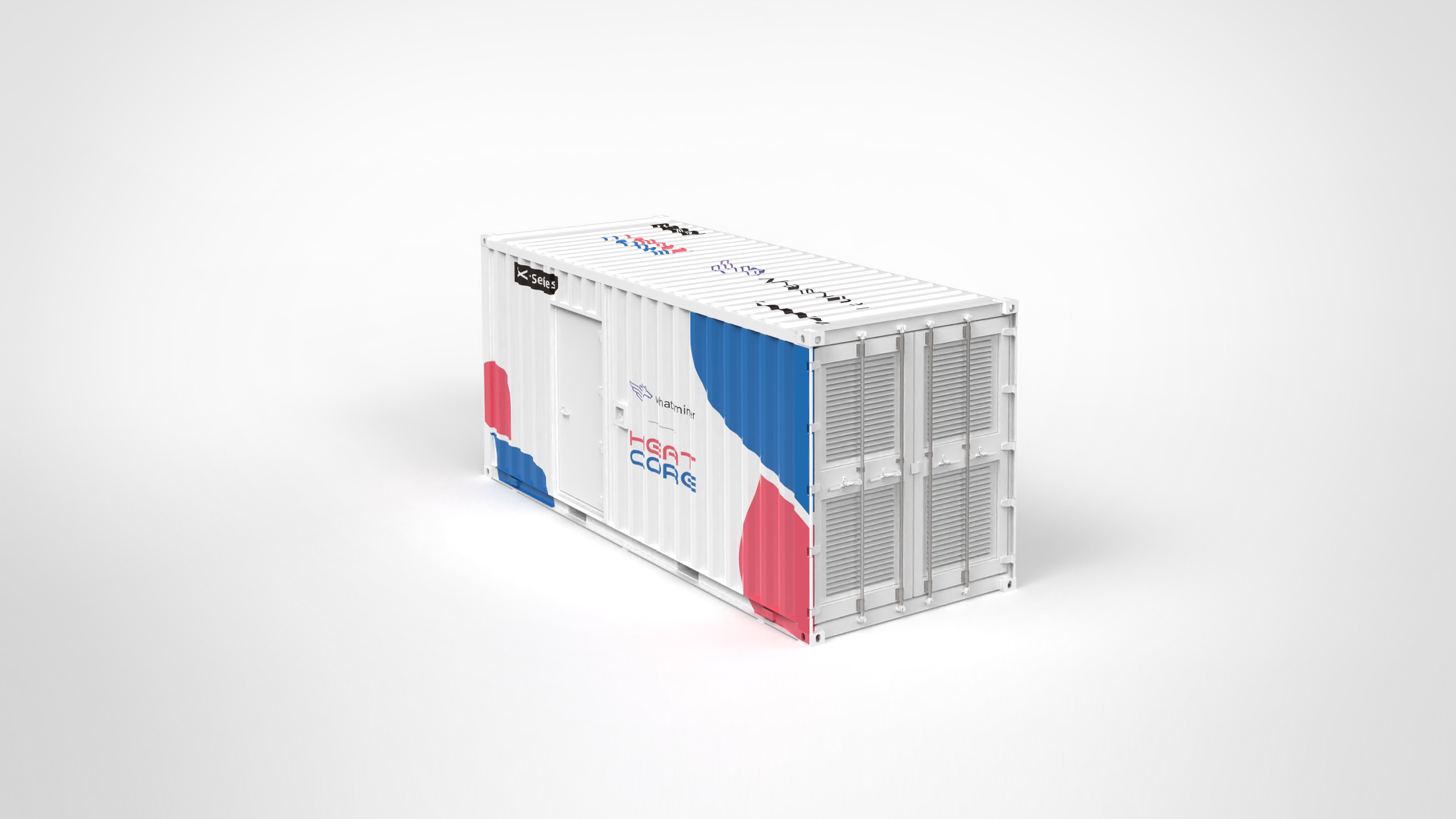

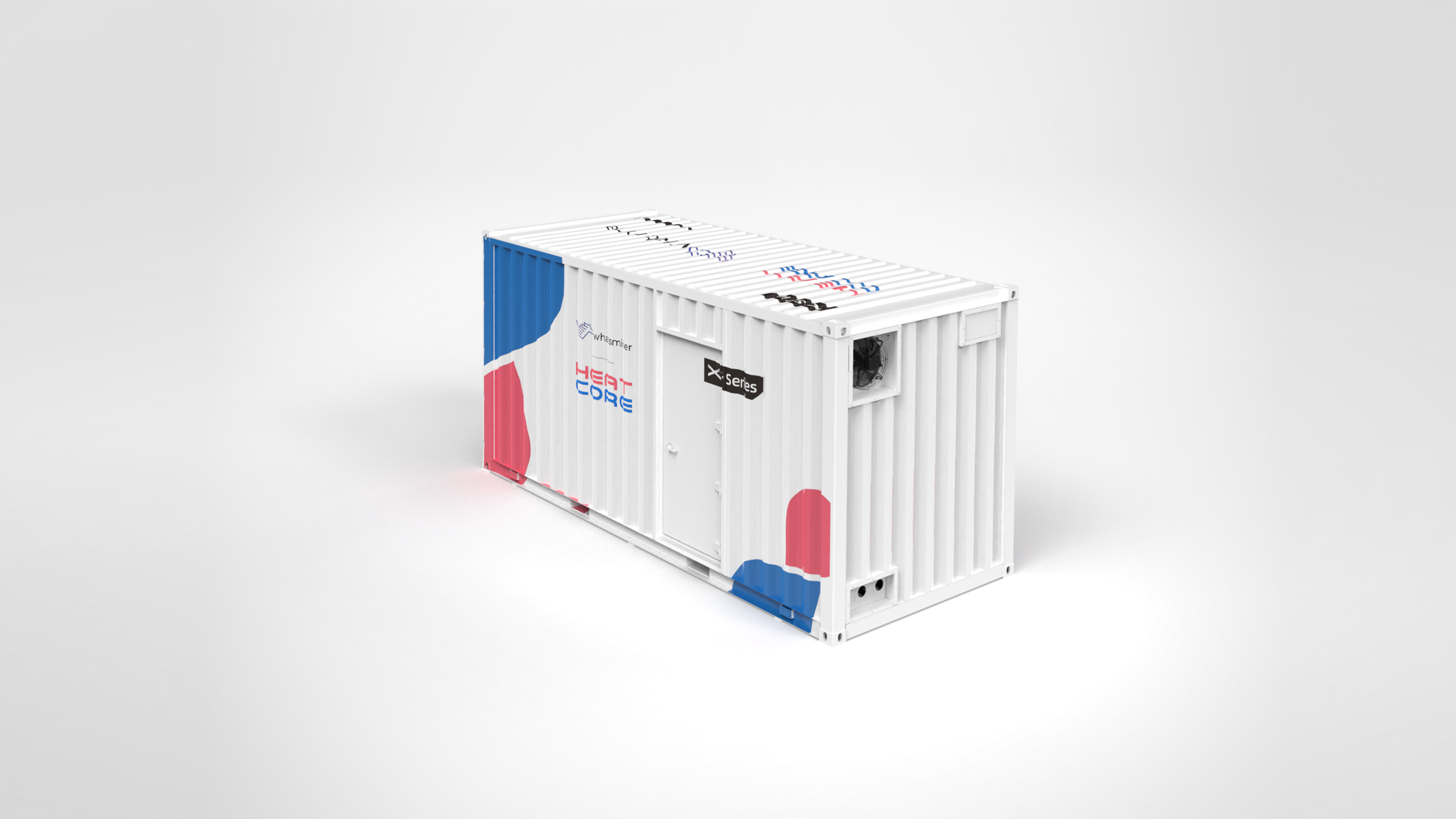

1-Apr-07-2025-12-34-38-7147-PM
2-Apr-07-2025-12-34-57-8379-PM
1-Apr-07-2025-12-34-38-7147-PM
2-Apr-07-2025-12-34-57-8379-PM
XS1000 SPECIFICATION

Category Details
Model HS05
Rack Capacity 1 Unit M64 series
Main Components Included Smart Control System(CDU), PDU, etc.
Dimensions (L x W x H)-mm 480*600*545
Dimensions(without dry cooler) (W x D x H)-mm
Net Weight/Operating Weight-kg 35 kg/ 50 kg
   Net Weight/Operating Weight(without dry cooler)-kg
   Input power Single Ph/N/PE 200-240V 50/60Hz
   Max Power Consumption 6 kw
   Maximum output Temperature
   Thermal Efficiency 95%
   No. of heat exchanger 2
   Electrical Code for the US
   Electrical Code for the EU

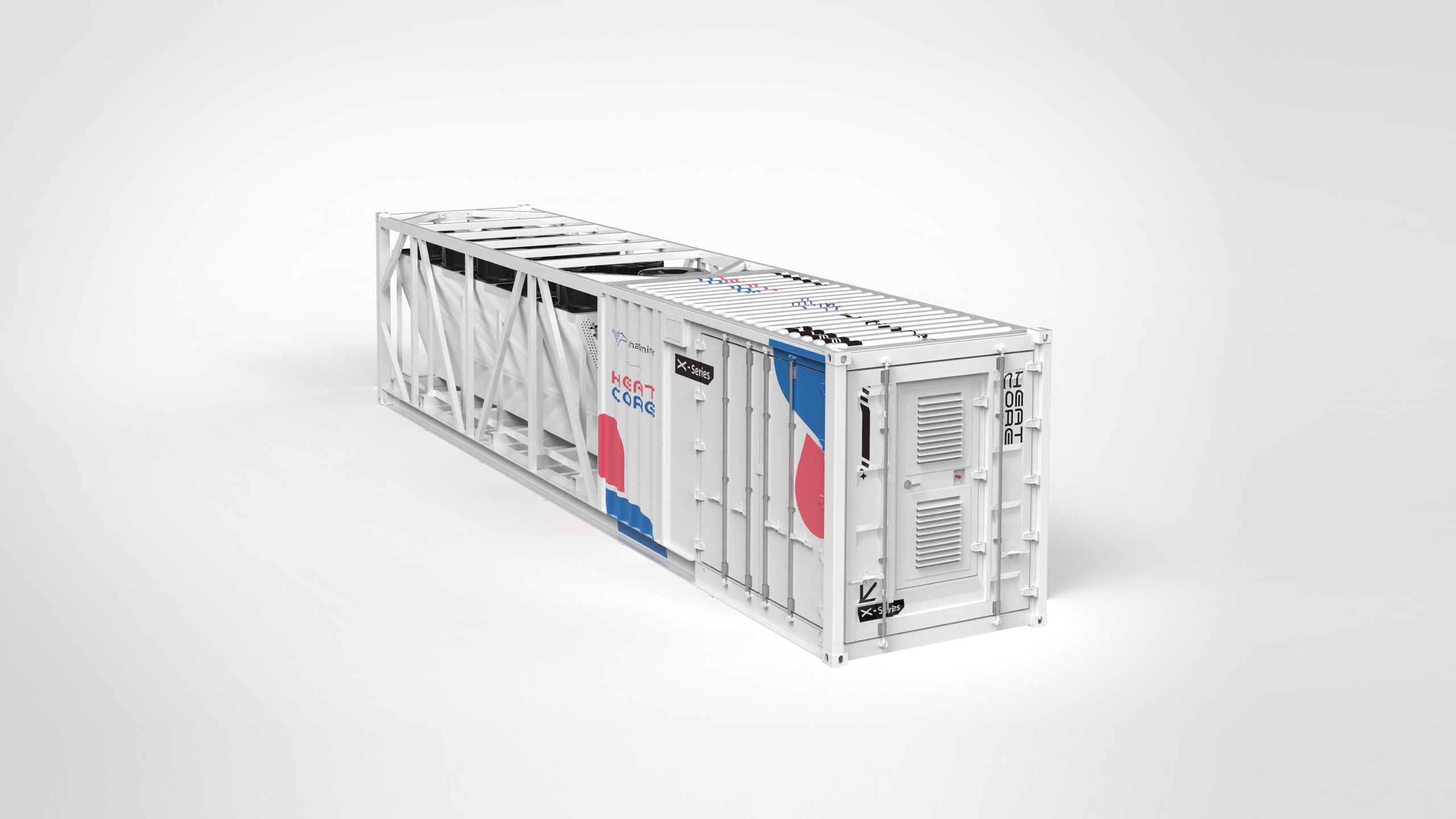

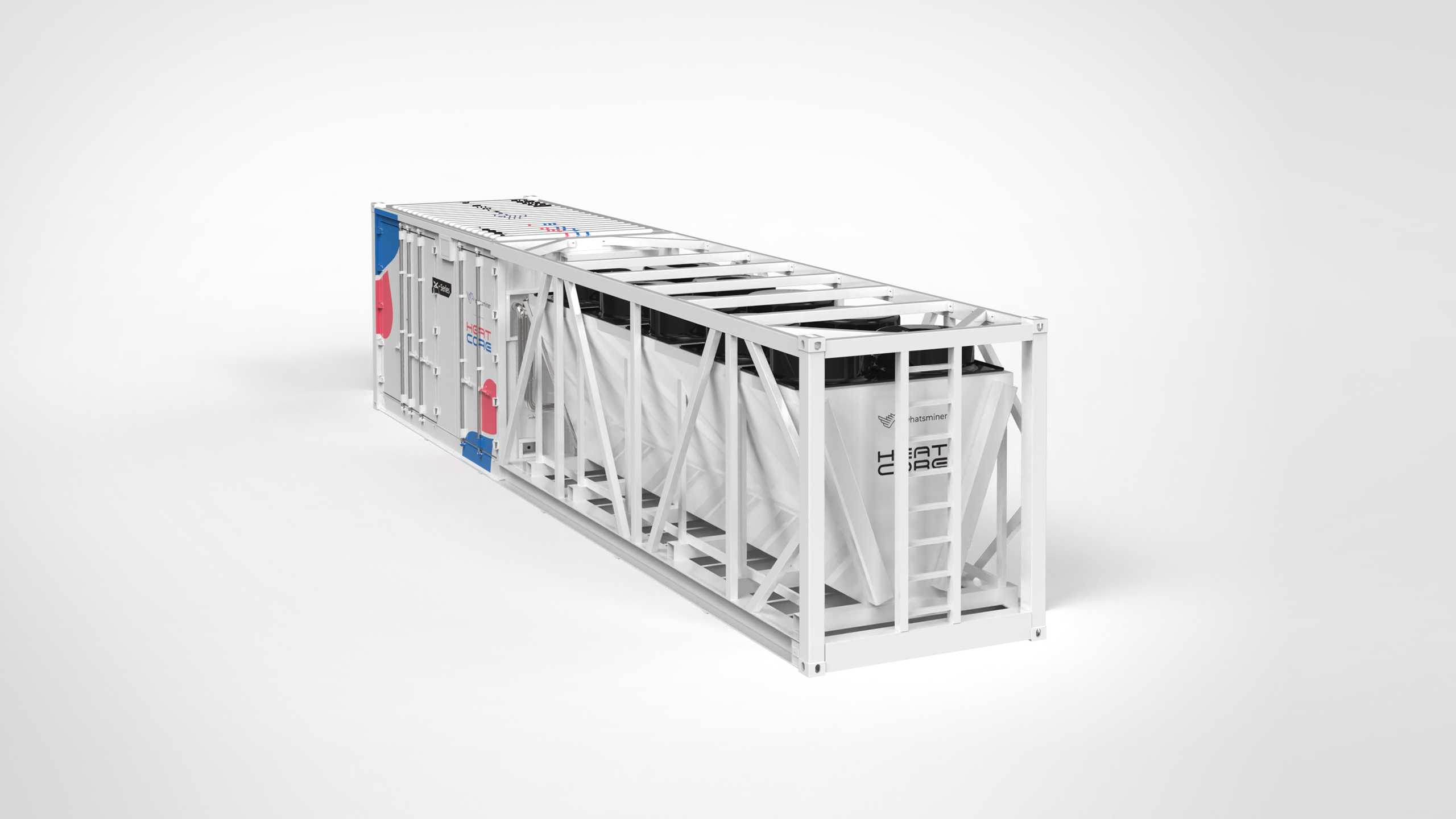

XS 1200

1-Apr-07-2025-01-53-33-8471-PM
2-Apr-07-2025-01-53-52-2147-PM
1-Apr-07-2025-01-53-33-8471-PM
2-Apr-07-2025-01-53-52-2147-PM
XS1200 SPECIFICATION

Category Details
Model HS05
Rack Capacity 1 Unit M64 series
Main Components Included Smart Control System(CDU), PDU, etc.
Dimensions (L x W x H)-mm 480*600*545
Dimensions(without dry cooler) (W x D x H)-mm
Net Weight/Operating Weight-kg 35 kg/ 50 kg
   Net Weight/Operating Weight(without dry cooler)-kg
   Input power Single Ph/N/PE 200-240V 50/60Hz
   Max Power Consumption 6 kw
   Maximum output Temperature
   Thermal Efficiency 95%
   No. of heat exchanger 2
   Electrical Code for the US
   Electrical Code for the EU





XS 1600

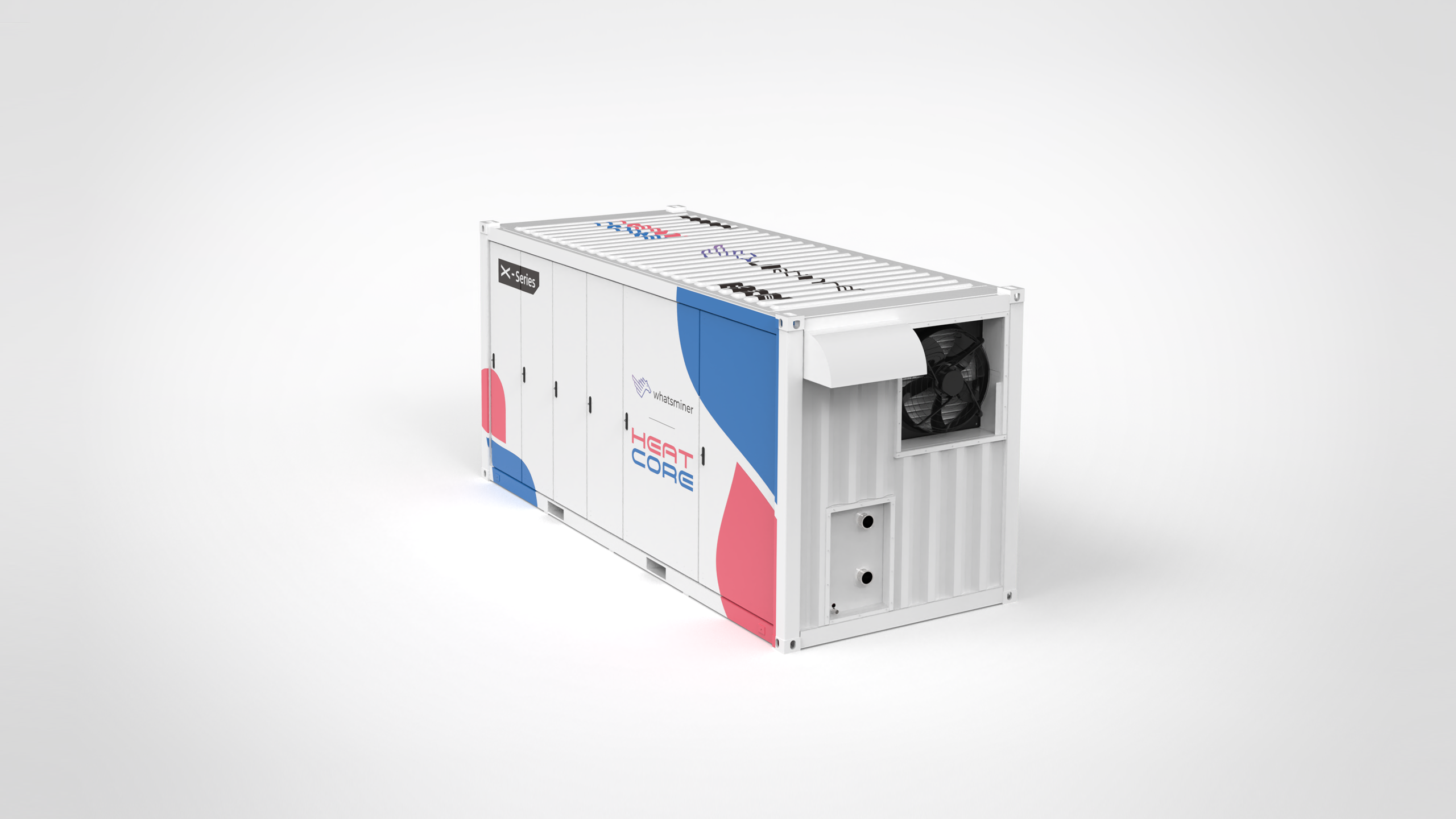

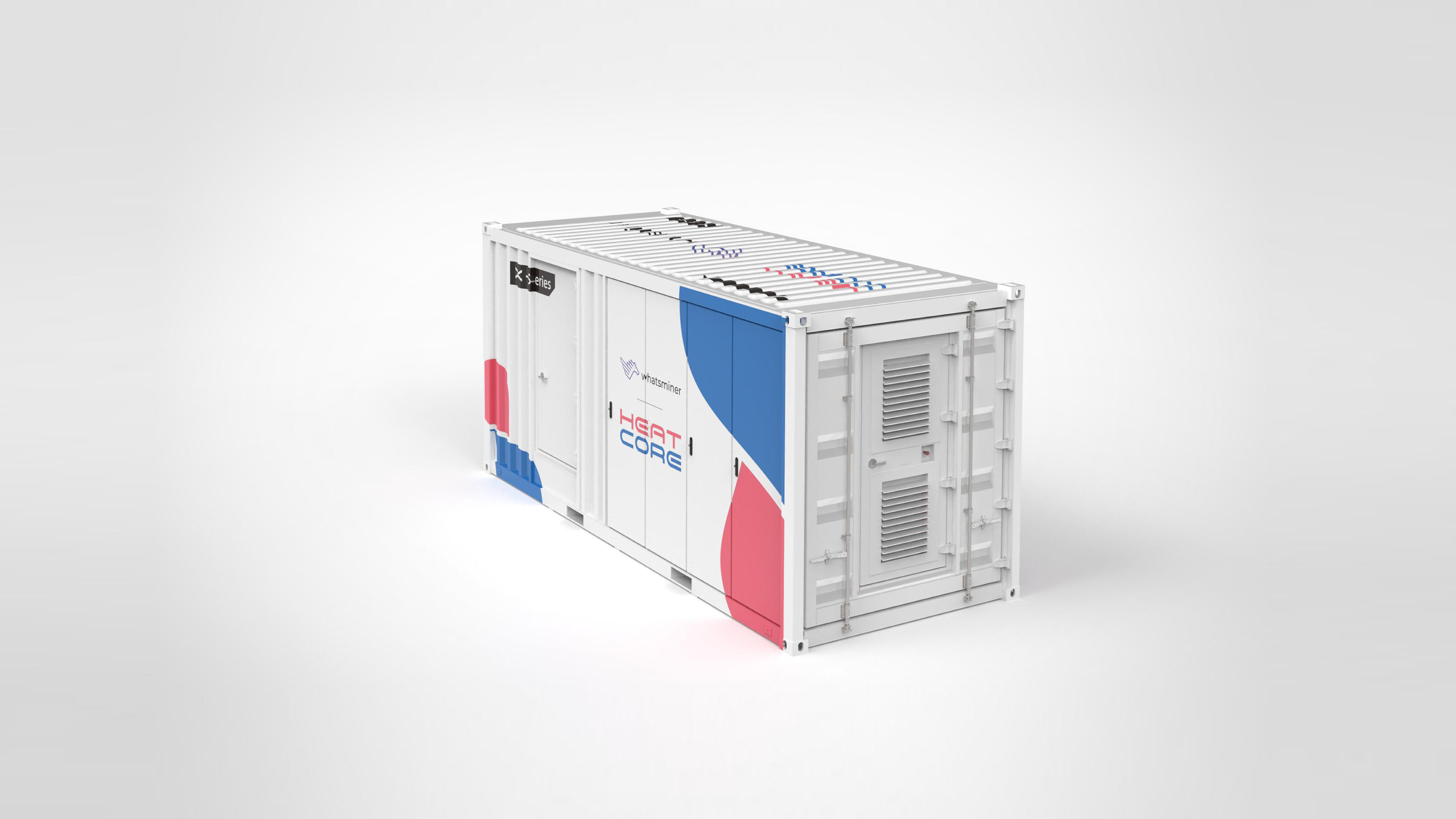

1-Apr-07-2025-12-35-27-0450-PM
2-Apr-07-2025-12-35-38-4811-PM
1-Apr-07-2025-12-35-27-0450-PM
2-Apr-07-2025-12-35-38-4811-PM
XS1600 SPECIFICATION

Category Details
Model HS05
Rack Capacity 1 Unit M64 series
Main Components Included Smart Control System(CDU), PDU, etc.
Dimensions (L x W x H)-mm 480*600*545
Dimensions(without dry cooler) (W x D x H)-mm
Net Weight/Operating Weight-kg 35 kg/ 50 kg
   Net Weight/Operating Weight(without dry cooler)-kg
   Input power Single Ph/N/PE 200-240V 50/60Hz
   Max Power Consumption 6 kw
   Maximum output Temperature
   Thermal Efficiency 95%
   No. of heat exchanger 2
   Electrical Code for the US
   Electrical Code for the EU

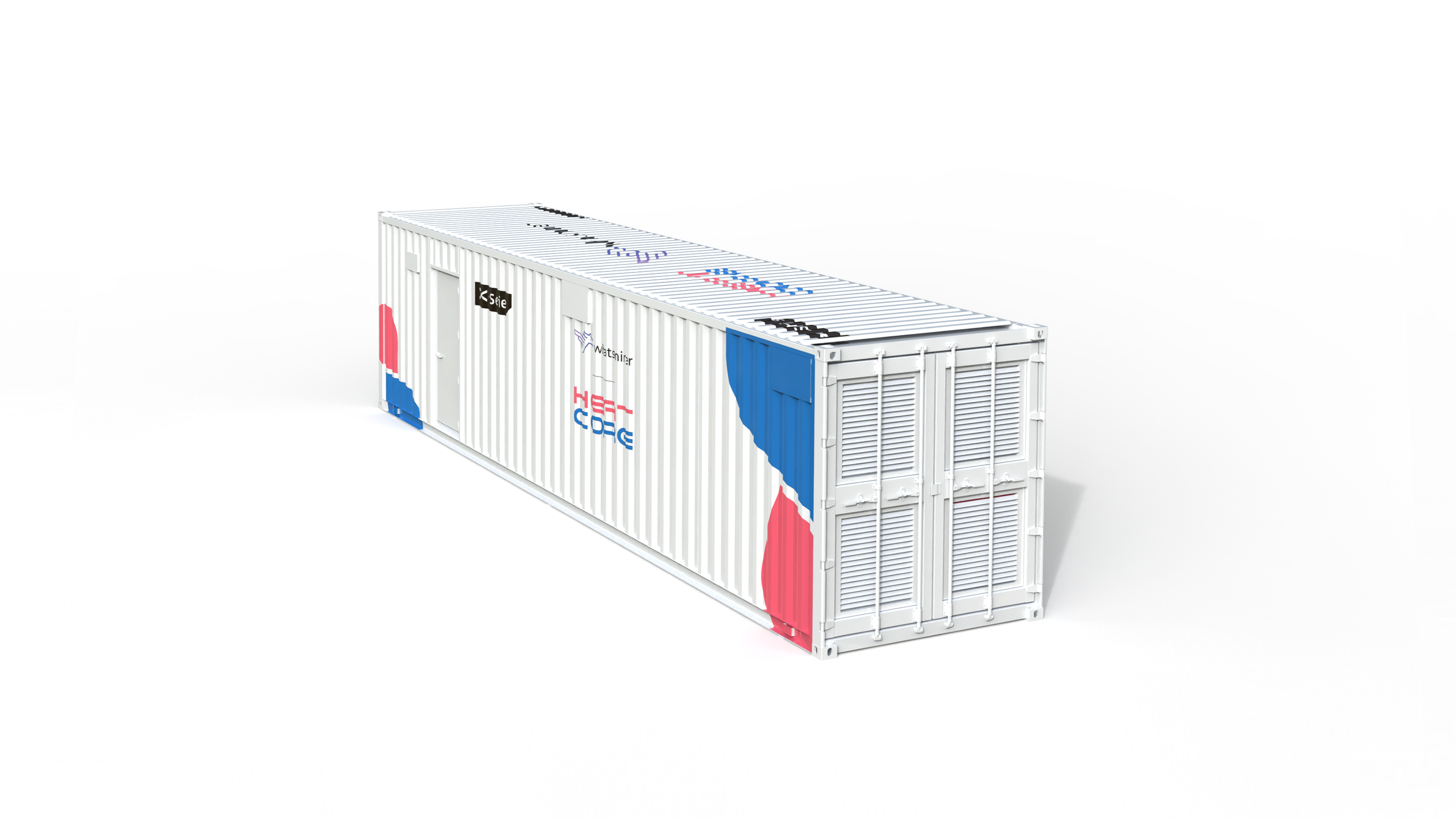

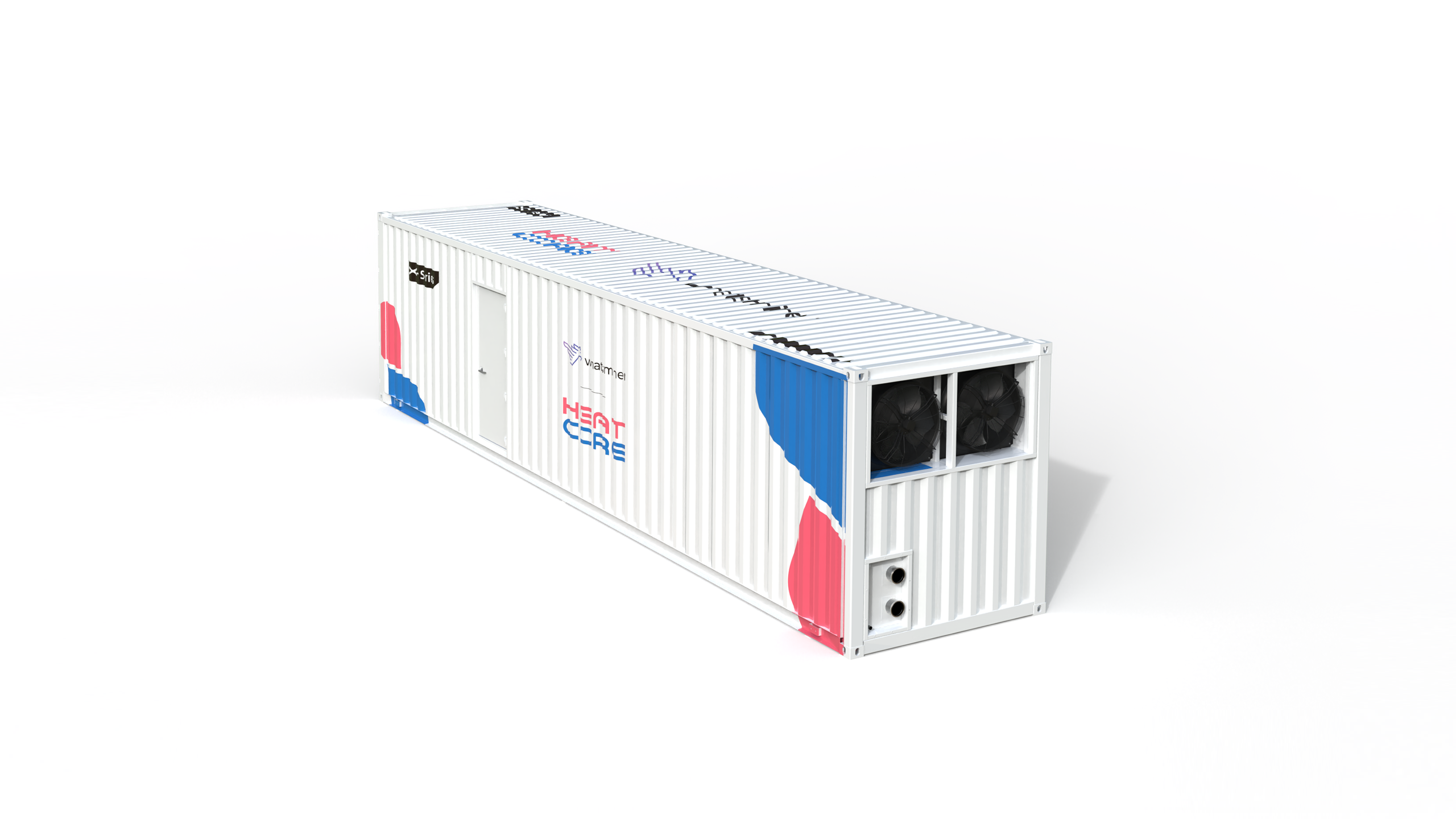

XS 2400

1-Apr-07-2025-12-36-12-3950-PM
2-Apr-07-2025-12-36-30-5866-PM
1-Apr-07-2025-12-36-12-3950-PM
2-Apr-07-2025-12-36-30-5866-PM
XS2400 SPECIFICATION

Category Details
Model HS05
Rack Capacity 1 Unit M64 series
Main Components Included Smart Control System(CDU), PDU, etc.
Dimensions (L x W x H)-mm 480*600*545
Dimensions(without dry cooler) (W x D x H)-mm
Net Weight/Operating Weight-kg 35 kg/ 50 kg
   Net Weight/Operating Weight(without dry cooler)-kg
   Input power Single Ph/N/PE 200-240V 50/60Hz
   Max Power Consumption 6 kw
   Maximum output Temperature
   Thermal Efficiency 95%
   No. of heat exchanger 2
   Electrical Code for the US
   Electrical Code for the EU





ABOUT  XS1000  ↘

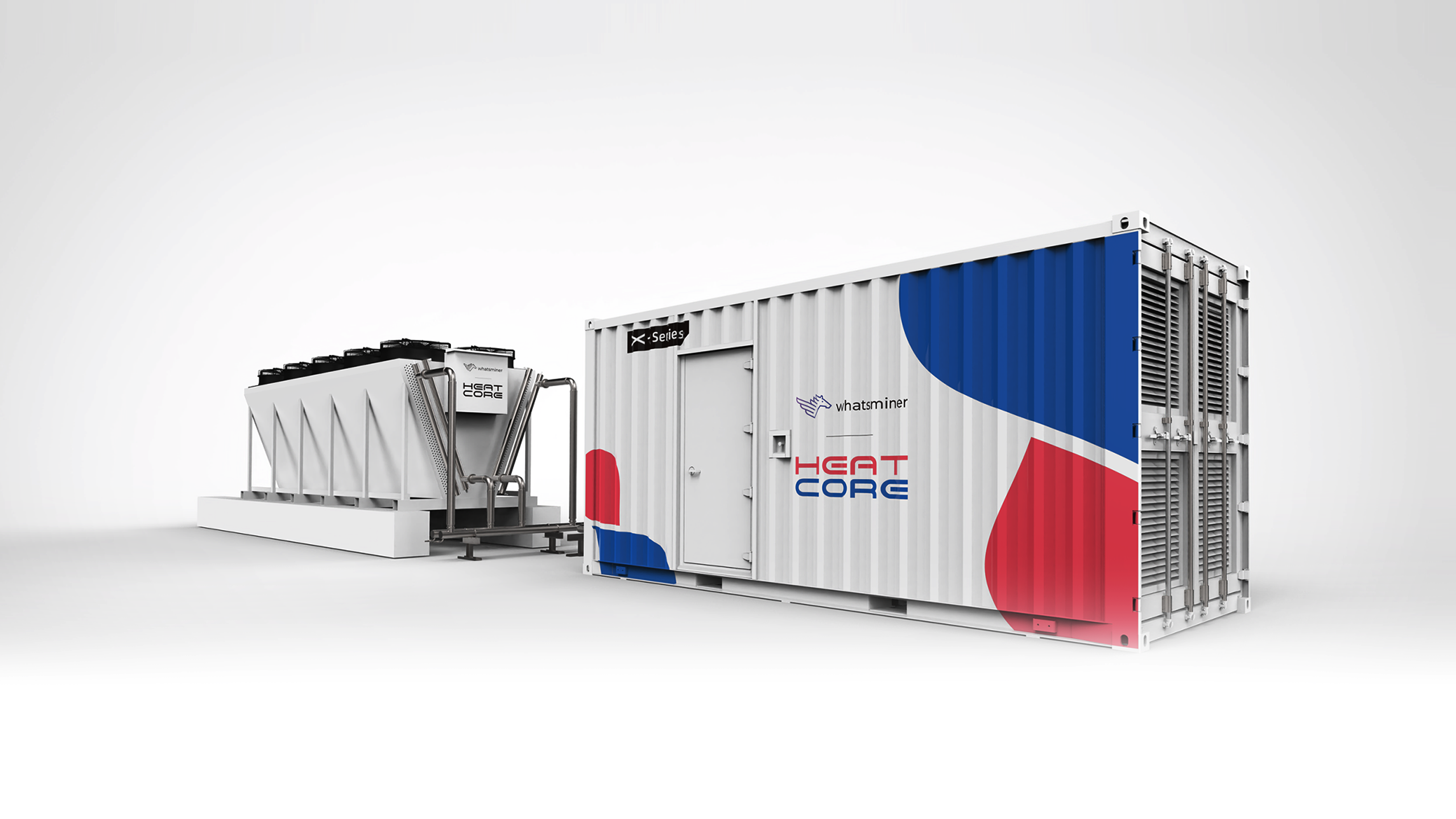

XS1600+dc1600.1-恢复的

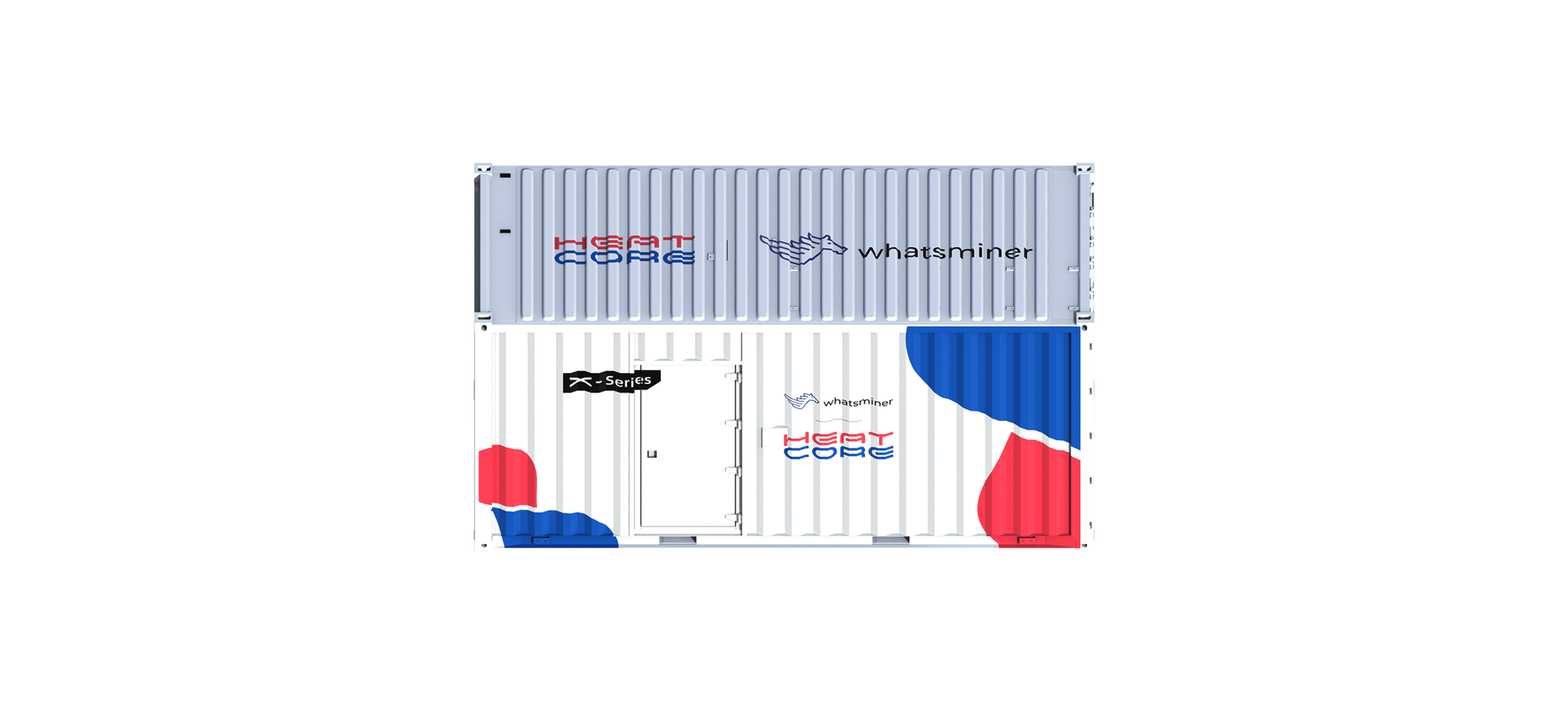

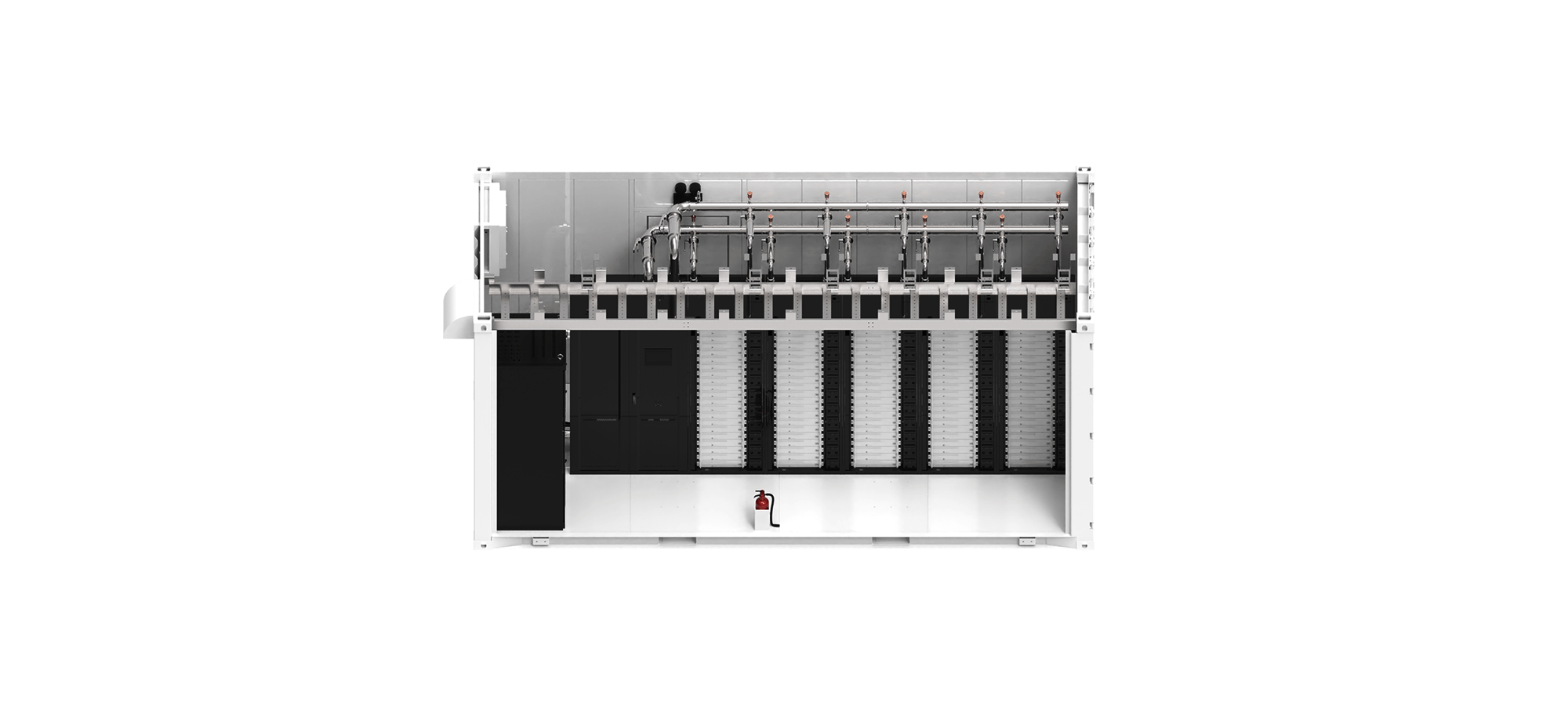

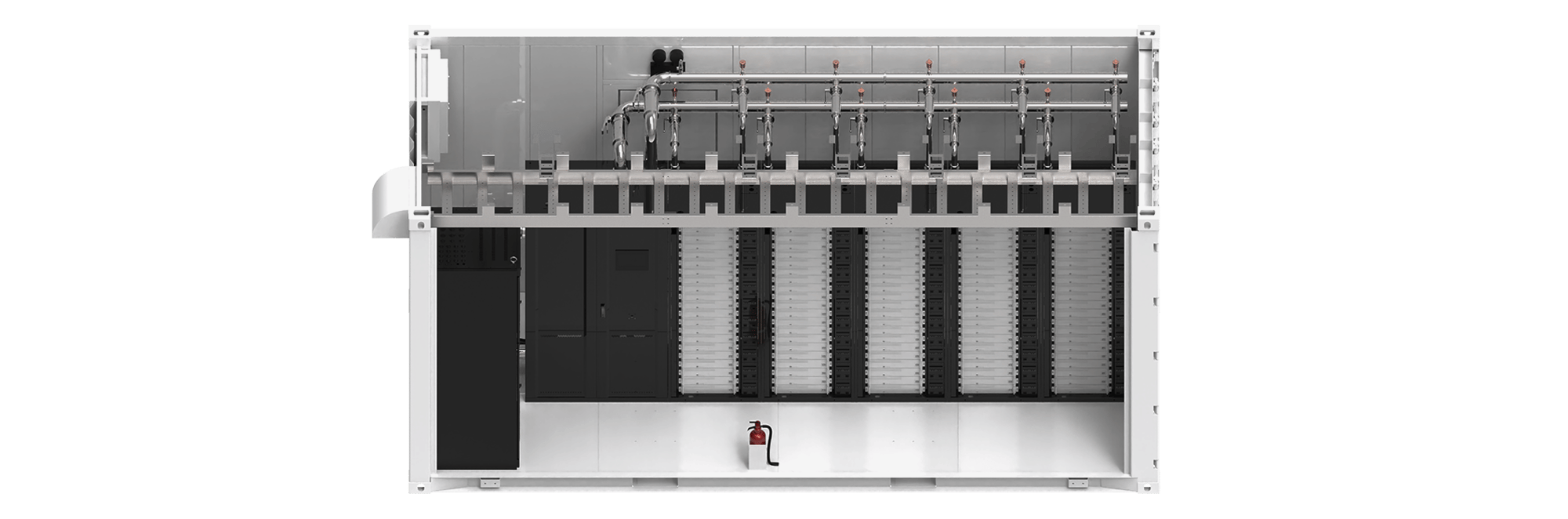

XS1000  Rack Internal Structure

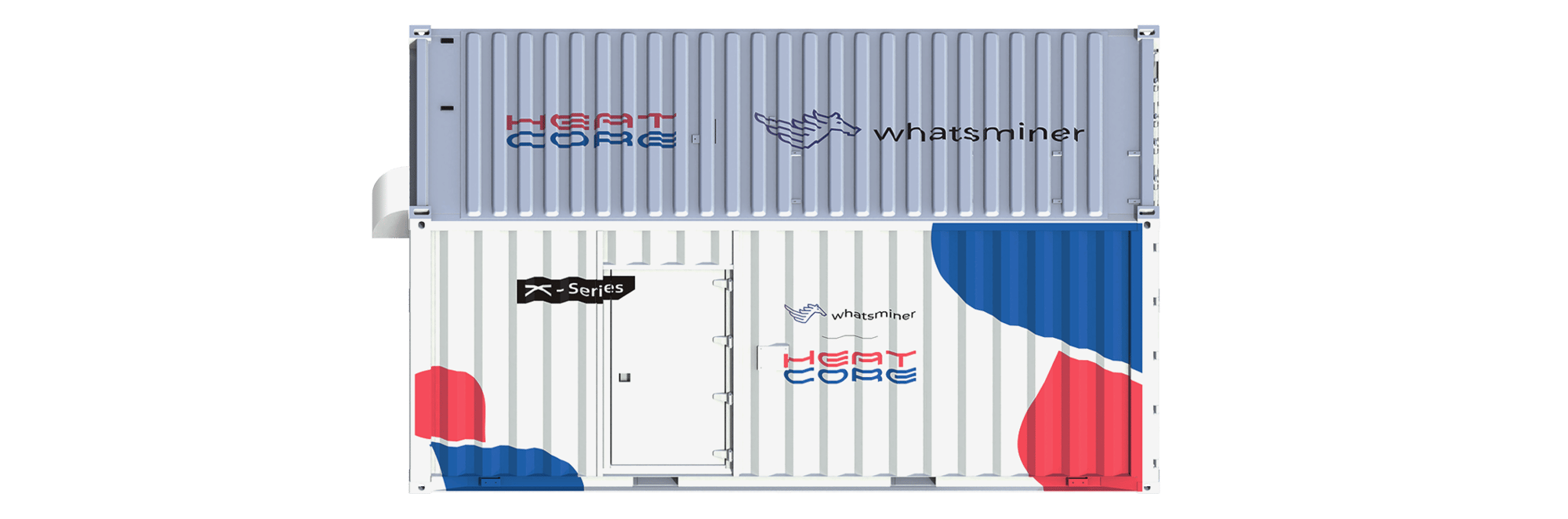

内部-2 外部-2



CATEGORY DETAILS
Model XS1000
Container‘s Capacity 100 units
Main Components Included Smart Control System(CDU)/Switchboard/5*IT Rack/Dry Cooler
Container‘s Size 20ft-HQ
Container‘s Net Weight/Operating Weight 5000kg/8050kg
Input Power 3-Ph/PE 380-480V 50/60Hz
Max. Power Consumption 1050kW
Max. Output Temperature 75°C
Thermal Efficiency 95%
Heat Exchangers Customized on Demand
Dry Coolers Customized on Demand
Pipe System Customized on Demand
Electrical Code for the US NFPA 70, UL508A, UL2755, UL50E, UL891
Electrical Code for the EU IEC 61439, IEC 60204
Certification CE or CSA Field Evaluation
Note: Customizable Design According to Specific Requirements​​

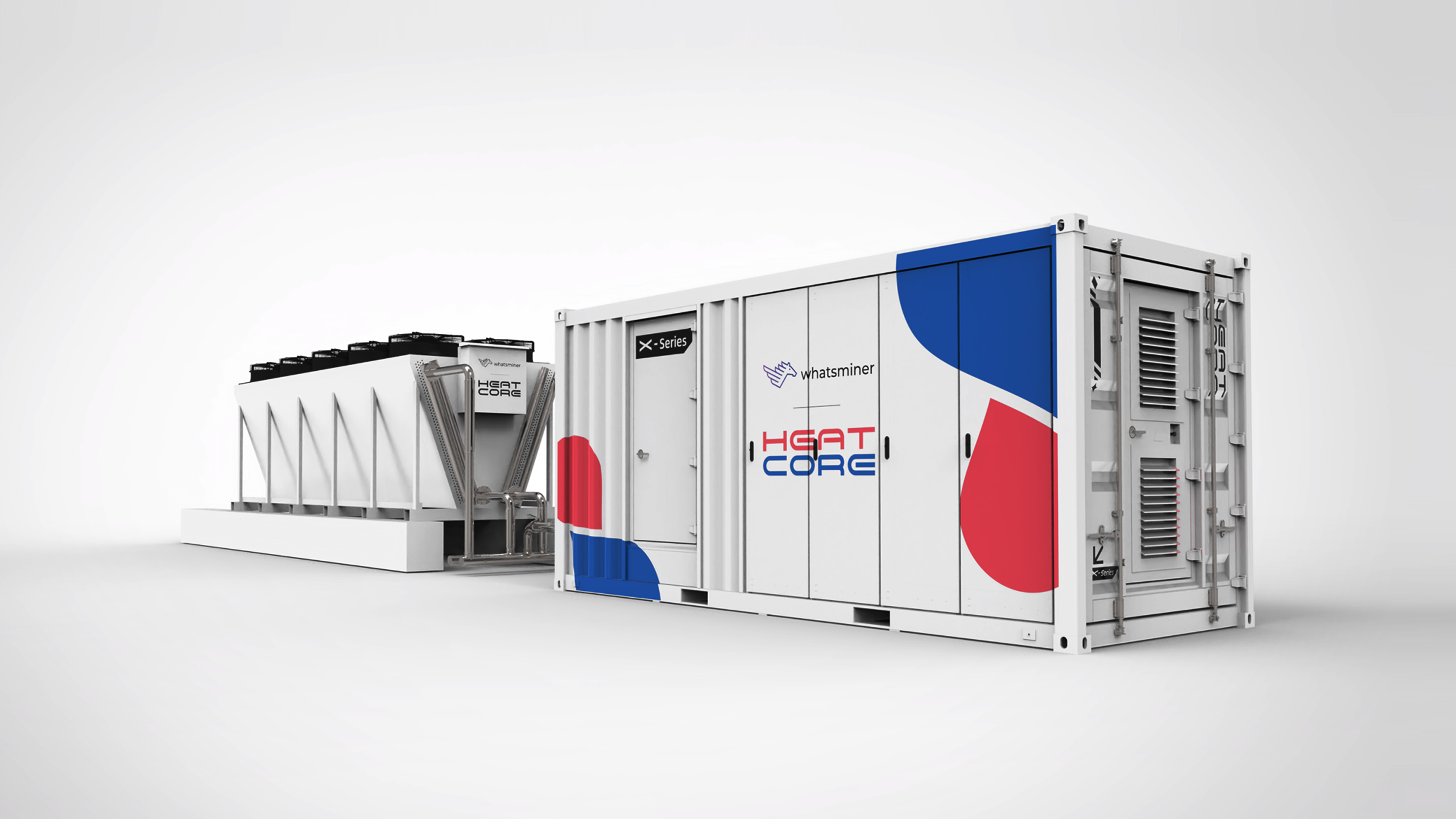

ABOUT  XS1600  ↘

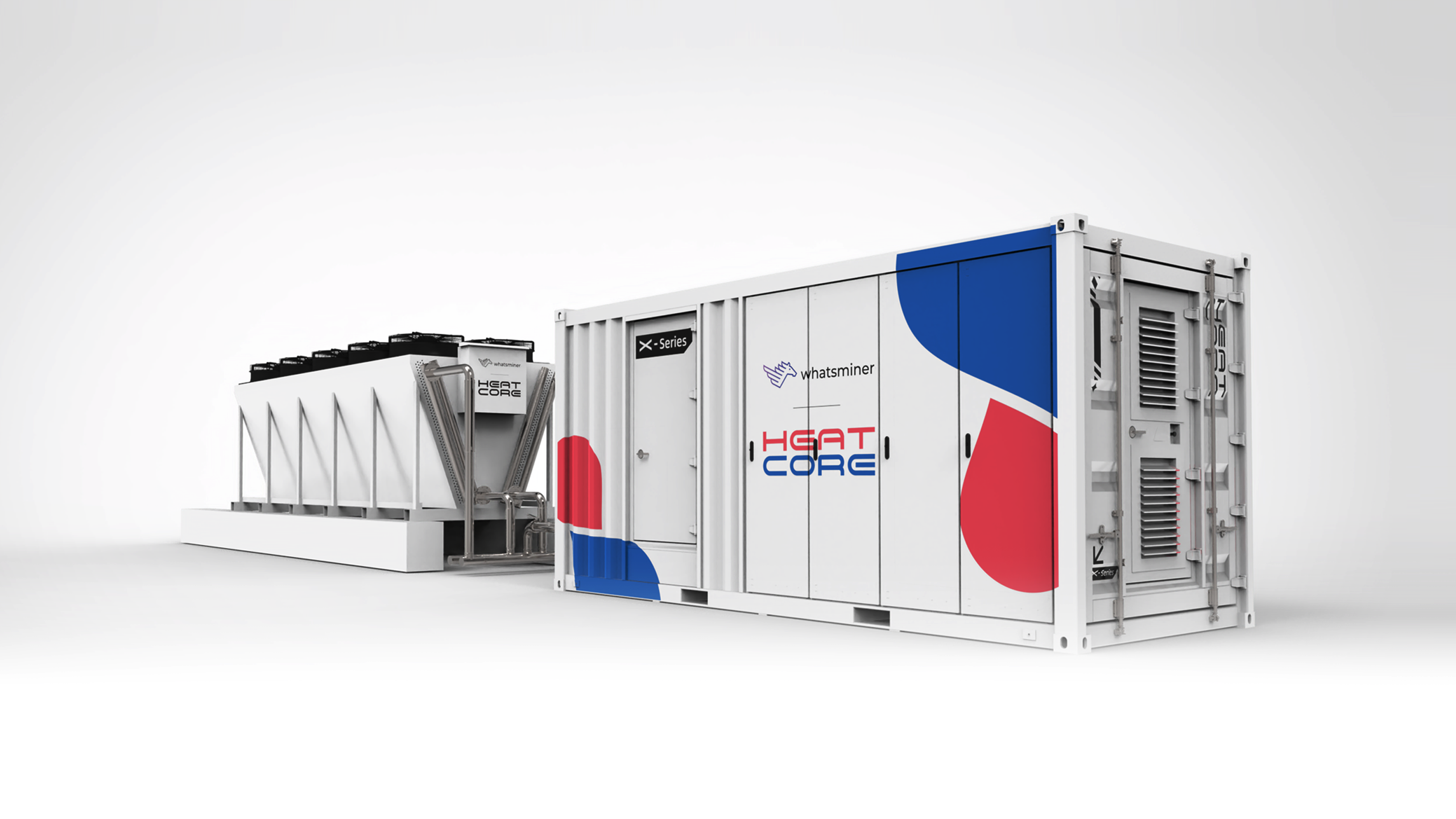

XS1600+dc1600.1-恢复的-1

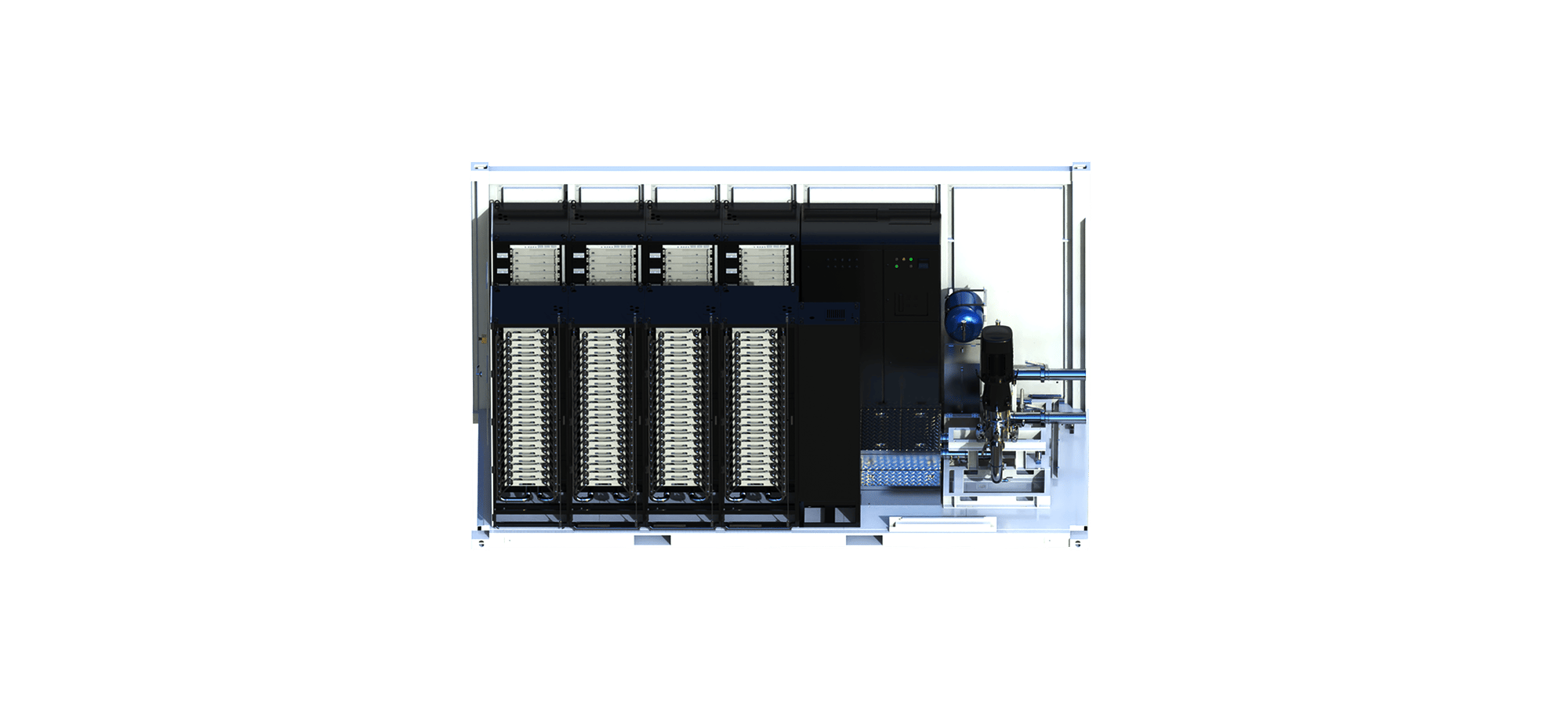

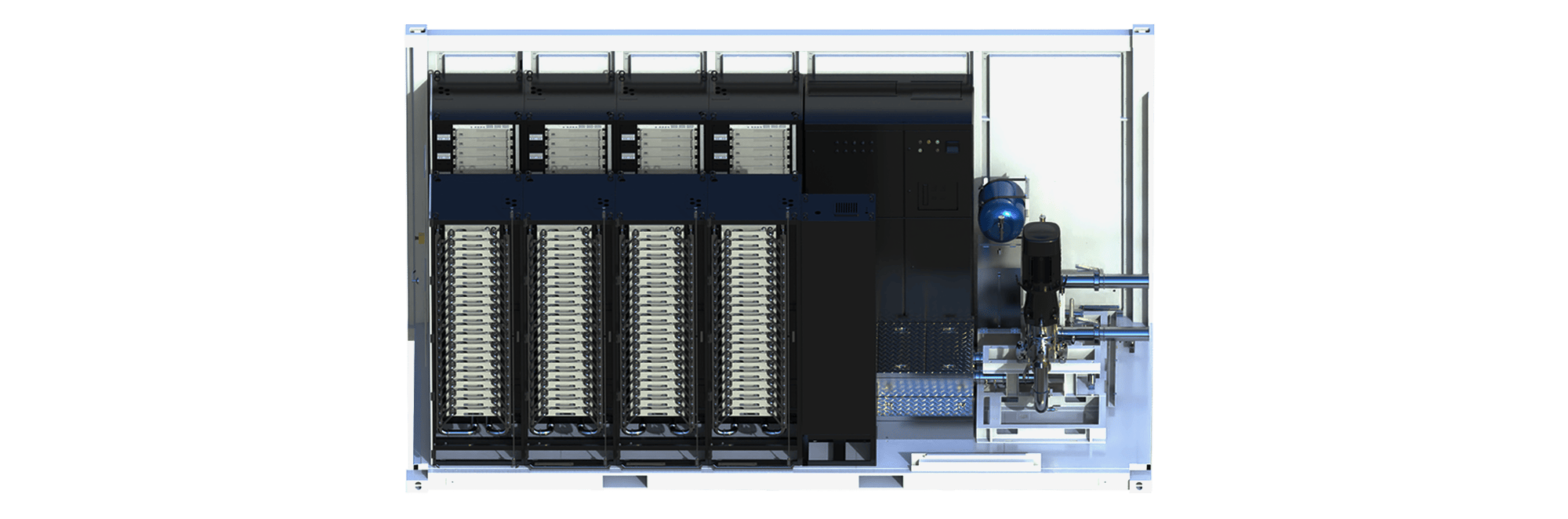

XS1600  Rack Internal Structure

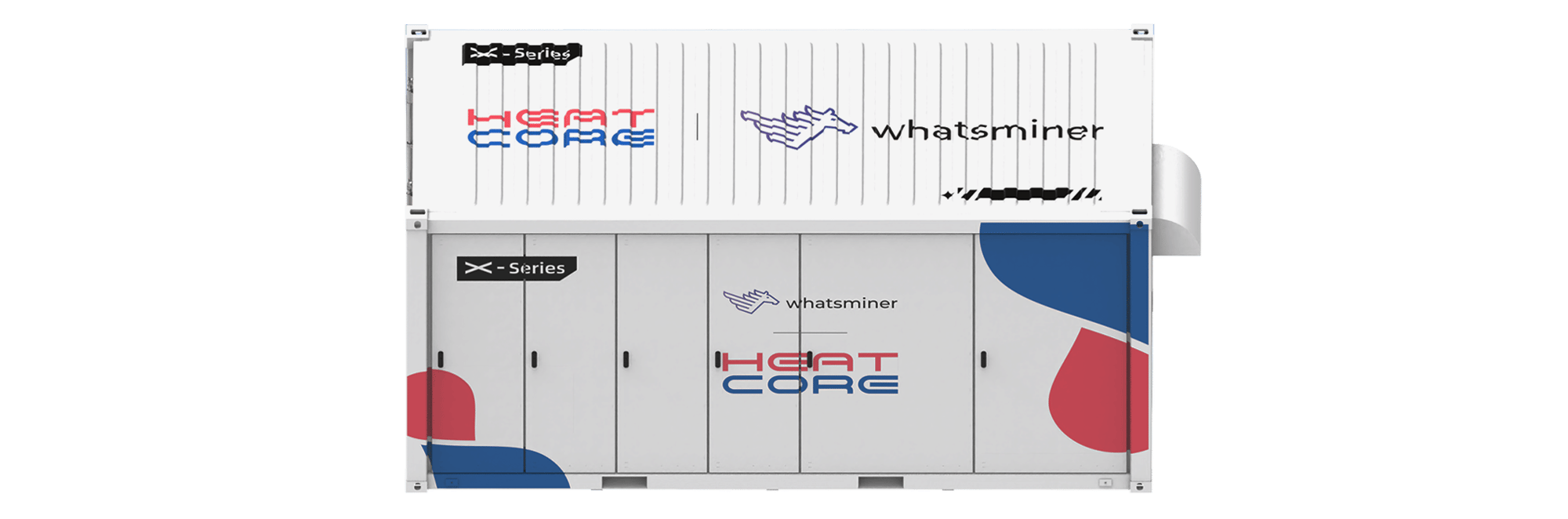

内部-3 外部-3



CATEGORY DETAILS
Model XS1600
Container‘s Capacity 160 units
Main Components Included Smart Control System(CDU)/Switchboard/8*IT Rack/Dry Cooler
Container‘s Size 20ft-HQ
Container‘s Net Weight/Operating Weight 8000kg/12670kg
Input Power 3-Ph/PE 380-480V 50/60Hz
Max. Power Consumption 1656kW
Max. Output Temperature 75°C
Thermal Efficiency 95%
Heat Exchangers Customized on Demand
Dry Coolers Customized on Demand
Pipe System Customized on Demand
Electrical Code for the US NFPA 70, UL508A, UL2755, UL50E, UL891
Electrical Code for the EU IEC 61439, IEC 60204
Certification CE or CSA Field Evaluation
Note: Customizable Design According to Specific Requirements​​

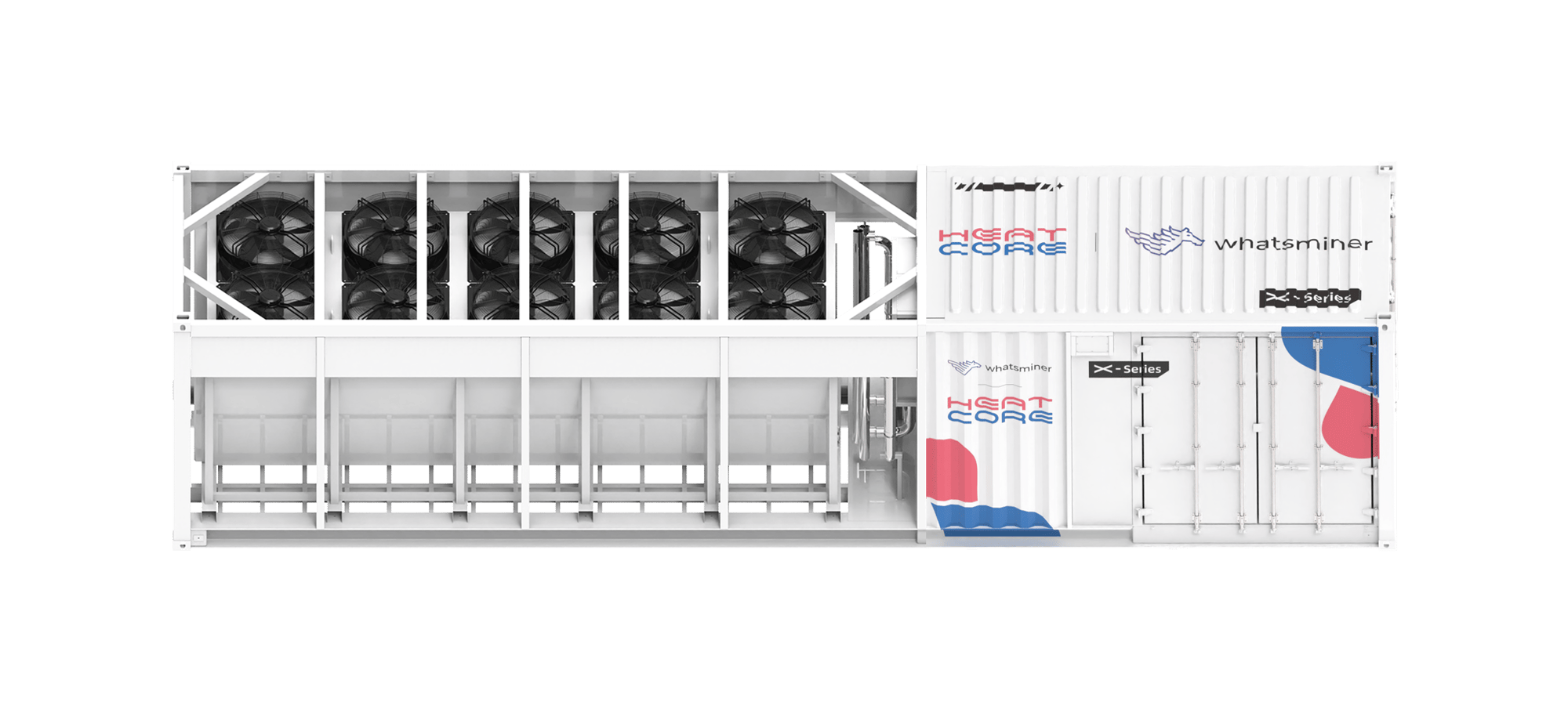

ABOUT  XS2400  ↘

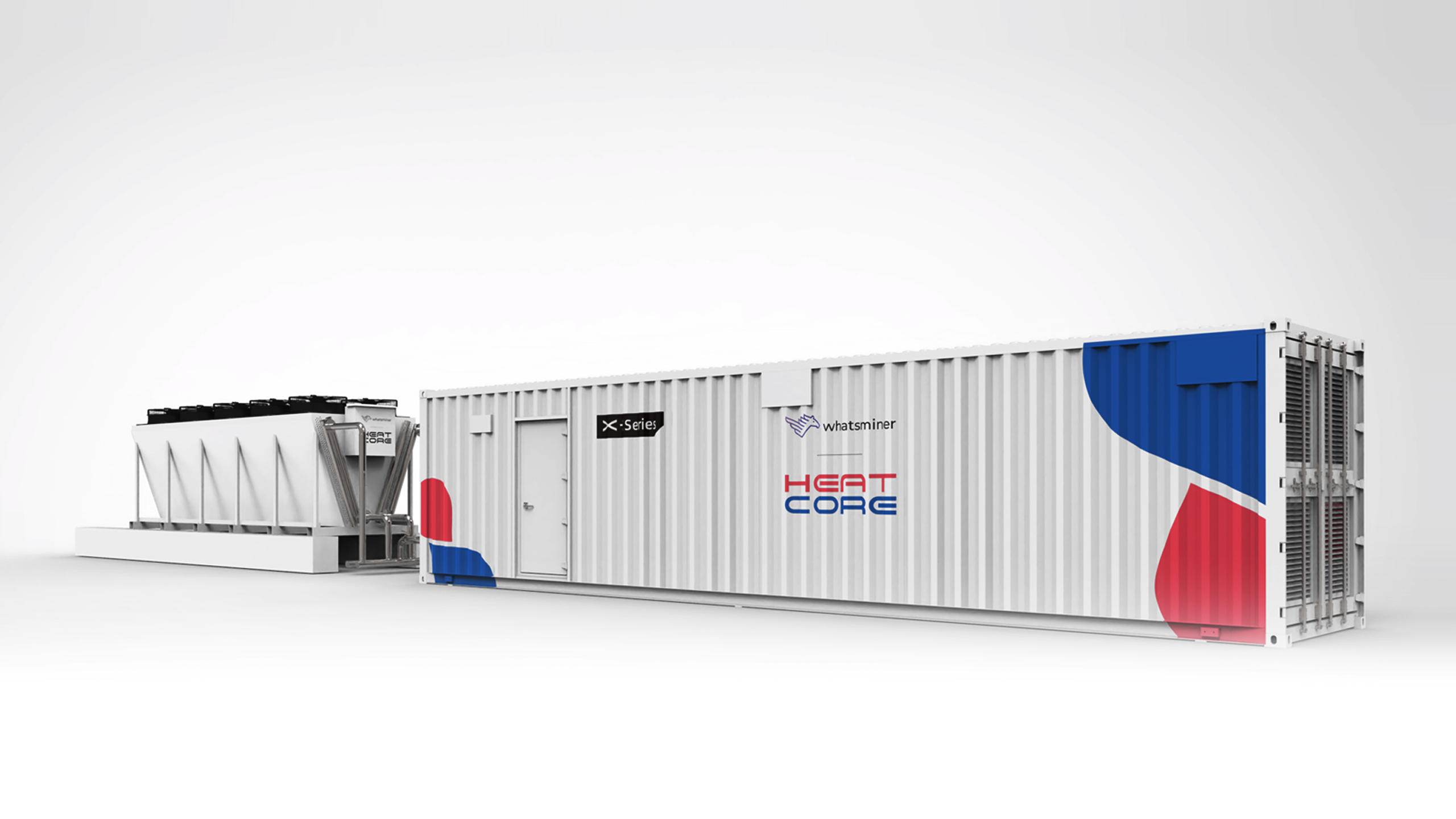

XS1600+dc1600.1-恢复的-3

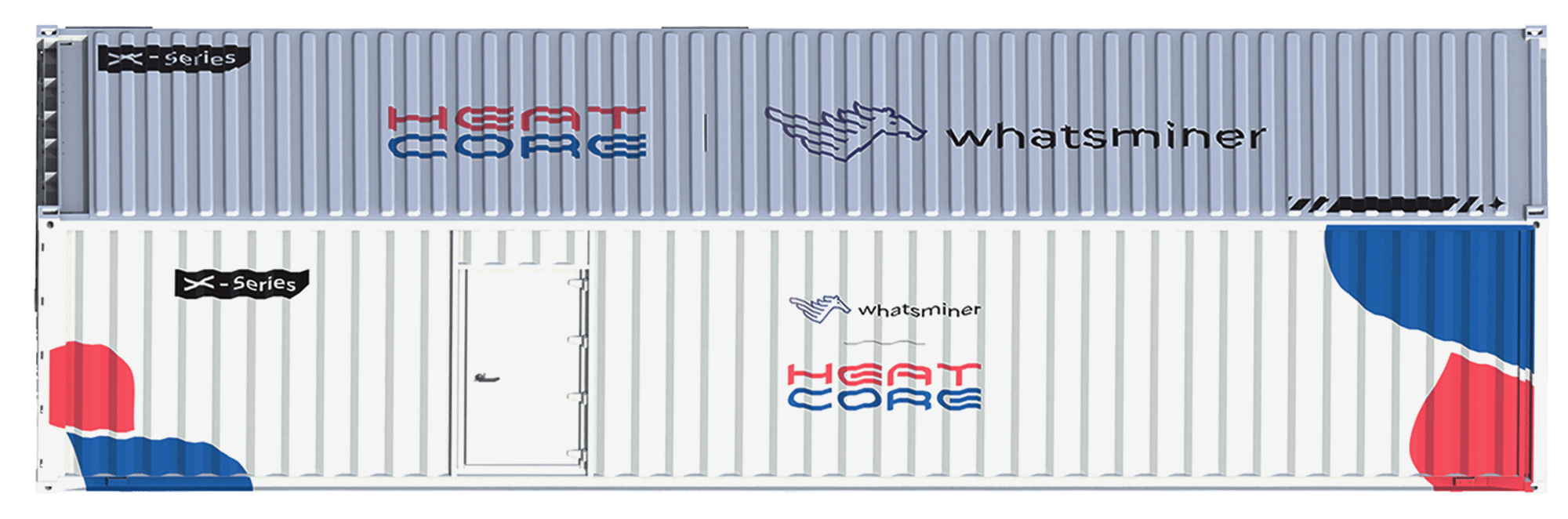

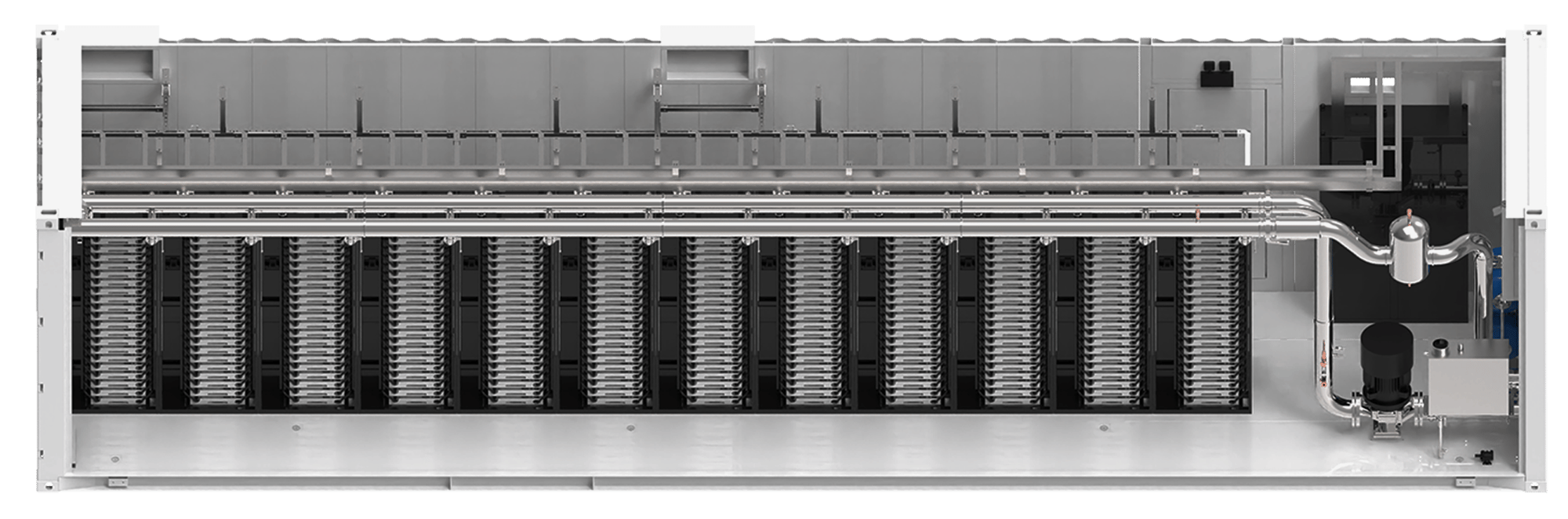

XS2400  Rack Internal Structure

内部-4 外部-4



CATEGORY DETAILS
Model XS2400
Container‘s Capacity 240 units
Main Components Included Smart Control System(CDU)/Switchboard/12*IT Rack/Dry Cooler
Container‘s Size 40ft-HQ
Container‘s Net Weight/Operating Weight 12000kg/19200kg
Input Power 3-Ph/PE  380-480V 50/60Hz
Max. Power Consumption 2488kW
Max. Output Temperature 75°C
Thermal Efficiency 95%
Heat Exchangers Customized on Demand
Dry Coolers Customized on Demand
Pipe System Customized on Demand
Electrical Code for the US NFPA 70, UL508A, UL2755, UL50E, UL891
Electrical Code for the EU IEC 61439, IEC 60204
Certification CE or CSA Field Evaluation
Note: Customizable Design According to Specific Requirements​​
XS 1200
Category Details
Model HS05
Rack Capacity 1 Unit M64 series
Main Components Included Smart Control System(CDU), PDU, etc.
Dimensions (L x W x H)-mm 480*600*545
Dimensions(without dry cooler) (W x D x H)-mm
Net Weight/Operating Weight-kg 35 kg/ 50 kg
   Net Weight/Operating Weight(without dry cooler)-kg
   Input power Single Ph/N/PE 200-240V 50/60Hz
   Max Power Consumption 6 kw
   Maximum output Temperature
   Thermal Efficiency 95%
   No. of heat exchanger 2
   Electrical Code for the US
   Electrical Code for the EU

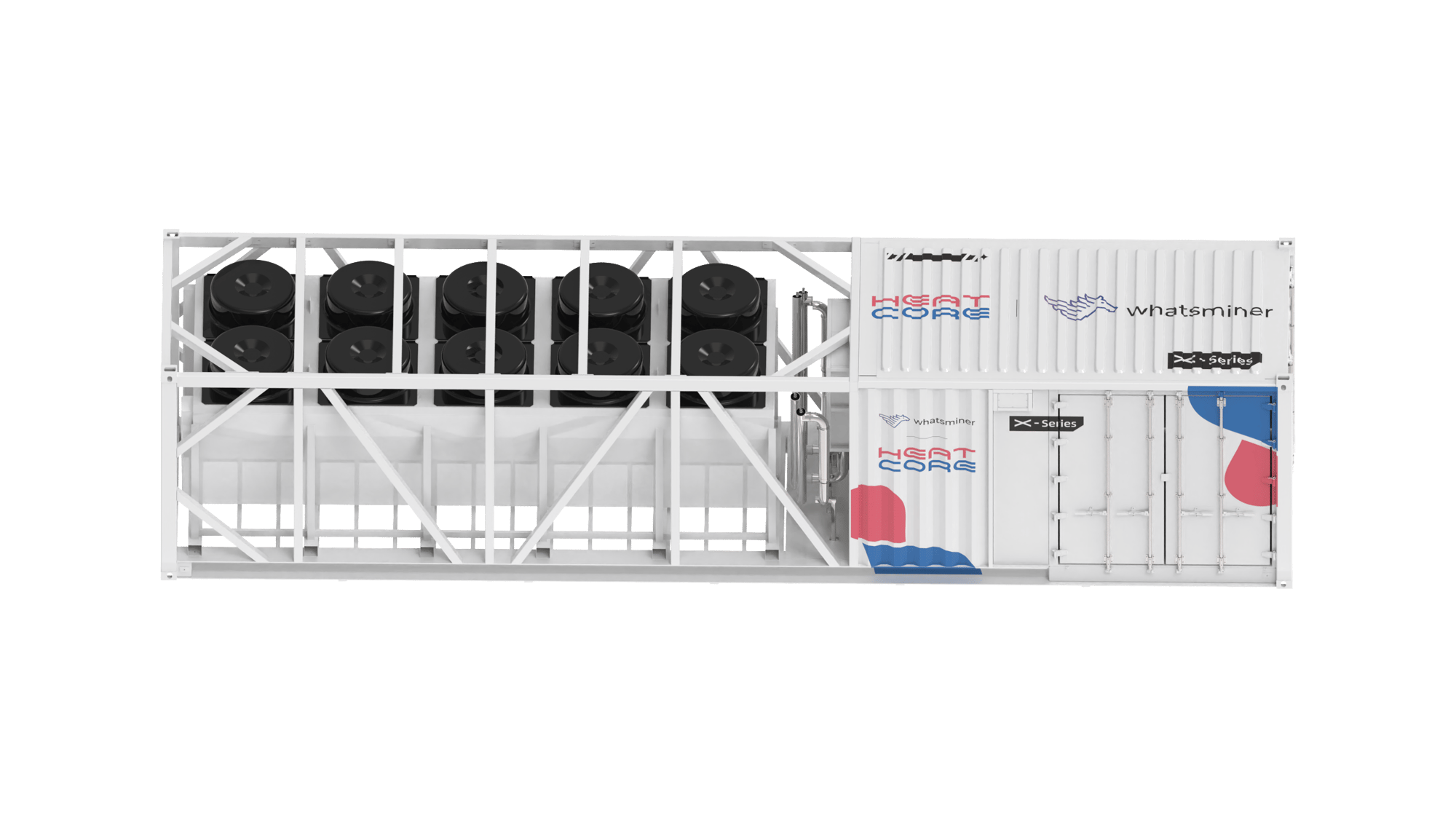

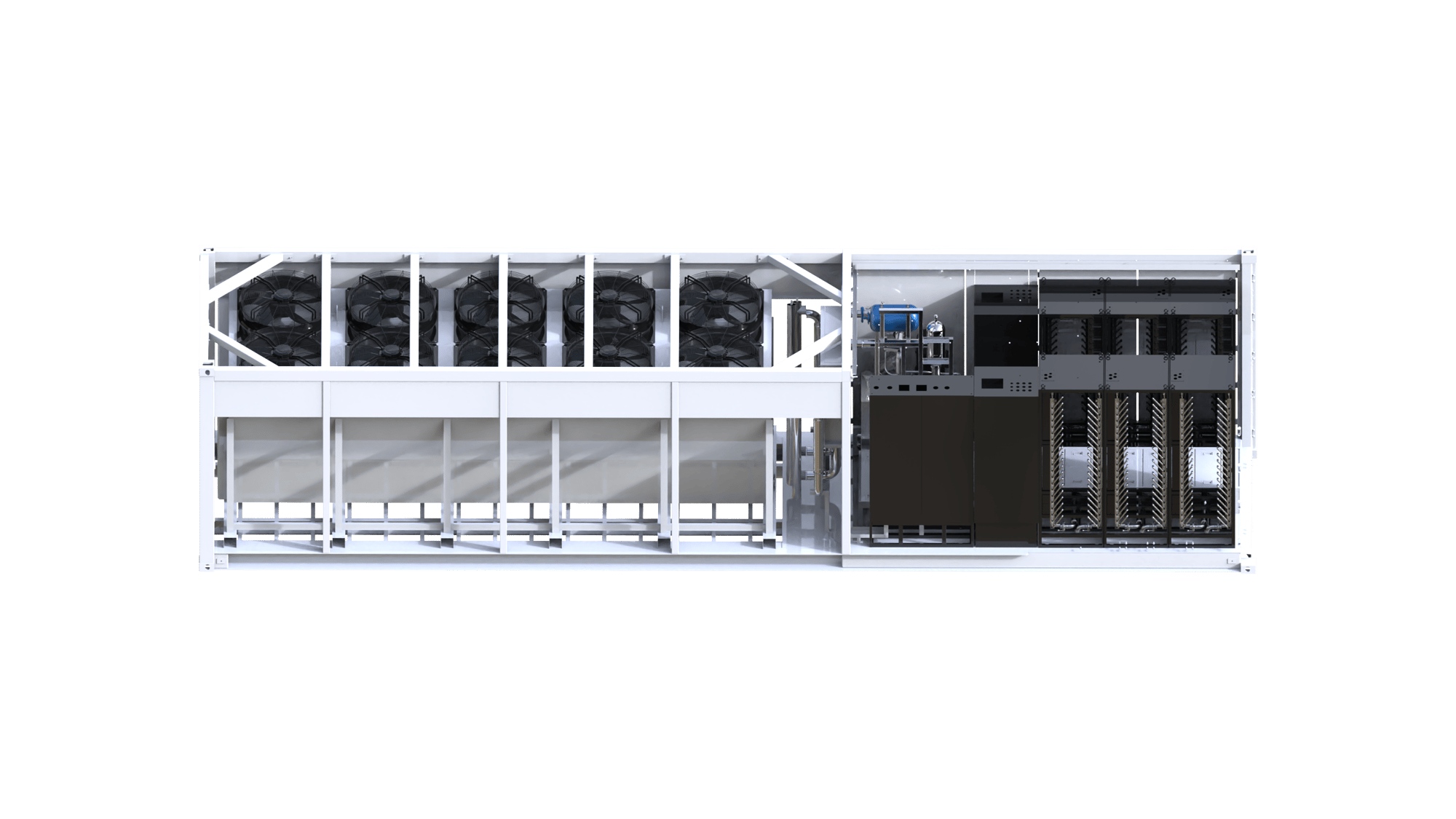

xs1200透视图 xs1200-细节图1.3
n柜

N-RACK

MANIFOLD

Scalability & High-Density Space
It features a modular design for easier production, repair, and future expansion.



PDU

Each N-Rack integrates 2U Server Slots, PDU, Manifold, Switch, and supports up to 20 servers.



SERVER SLOTS (including 1 U space for access layer swtich)

Premium Quality for Reliability
With the rack constructed from Q235 steel, manifold from 304 Stainless steel, branch hoses from EPDM material, the it rack is designed for premium high strength and corrosion- resistance.

tab_img

CDU

MANIFOLD

Scalability & High-Density Space
It features a modular design for easier production, repair, and future expansion.



PDU

Each N-Rack integrates 2U Server Slots, PDU, Manifold, Switch, and supports up to 20 servers.



SERVER SLOTS (including 1 U space for access layer swtich)

Premium Quality for Reliability
With the rack constructed from Q235 steel, manifold from 304 Stainless steel, branch hoses from EPDM material, the it rack is designed for premium high strength and corrosion- resistance.

tab_img

CONNECTION PIPELINE

Being part of the HubSpot community has helped me grow not only as a marketer, but as a business professional. I love being able to immediately apply takeaways and advice from my fellow HUG members and integrate them into my own marketing practice after each meet up.

tab_img

DRY COOLER

Being part of the HubSpot community has helped me grow not only as a marketer, but as a business professional. I love being able to immediately apply takeaways and advice from my fellow HUG members and integrate them into my own marketing practice after each meet up.

tab_img

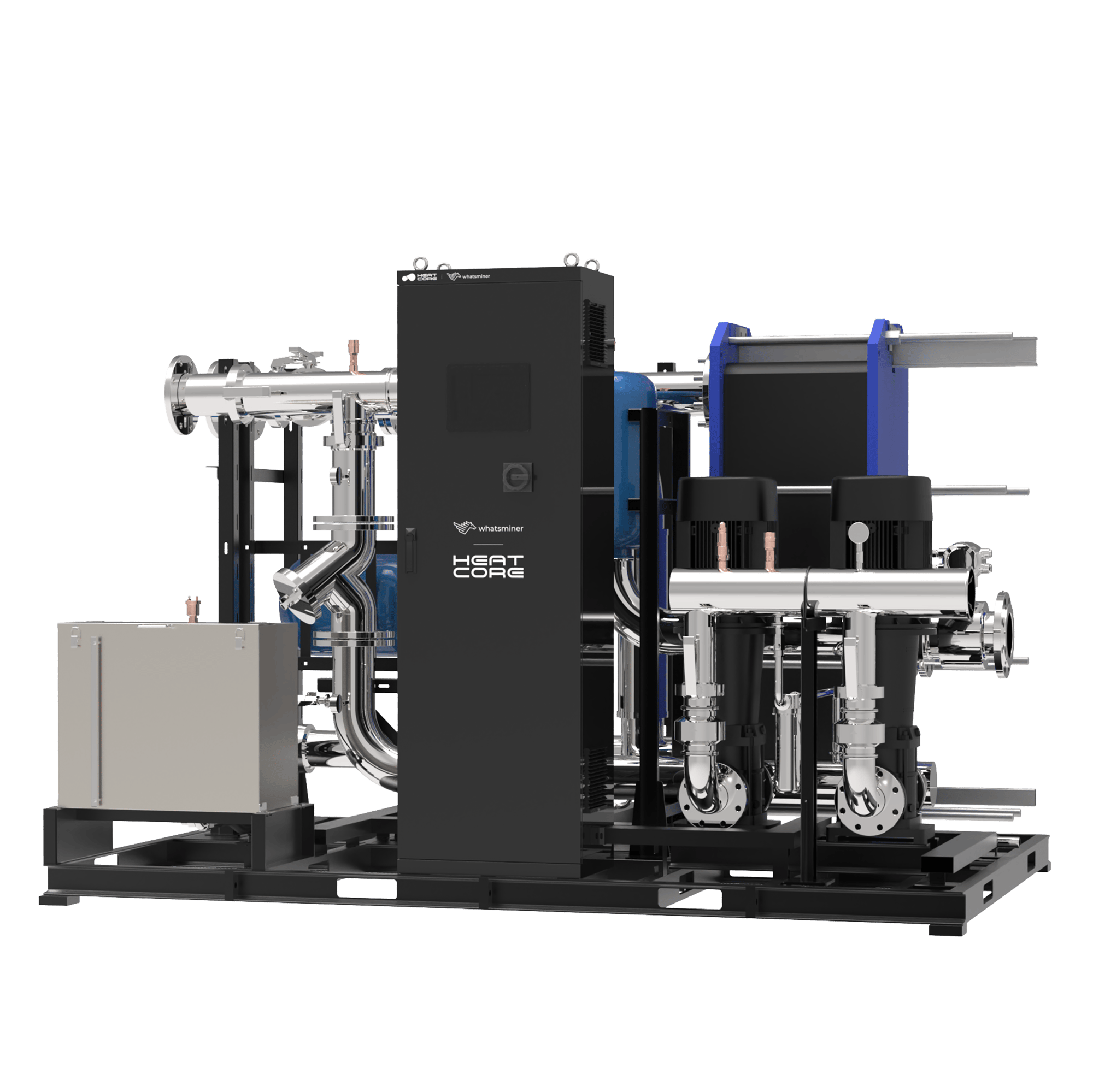

HEAT UtTILIZATION MODULE

Being part of the HubSpot community has helped me grow not only as a marketer, but as a business professional. I love being able to immediately apply takeaways and advice from my fellow HUG members and integrate them into my own marketing practice after each meet up.

tab_img

OTHER KEY INFRASTRUCTURE

Being part of the HubSpot community has helped me grow not only as a marketer, but as a business professional. I love being able to immediately apply takeaways and advice from my fellow HUG members and integrate them into my own marketing practice after each meet up.

N-Rack

CDU

Connection Pipeline

Dry Cooler

Heat Utilization Module

Other key Infrastructure

Notes:

1.The hydro cooling container and dry cooler could be placed on level ground. The ground should be hardened to support a minimum load of 35 tons to ensure stability.

2.Suitable for altitudes ≤2000 meters. For altitudes above 1000 meters, account for a capacity reduction of approximately 1% for transformers and switches per additional 100 meters.

3.Operates in temperatures from -25°C to 45°C and relative humidity of 10%RH to 85%RH(non-condensing).

4.The ambient temperature of the HeatCore hydro cooling container does not equate to the Whatsminer M6X hydro server’s operating environment temperature.

5.Liquid coolant is pure water (or distilled water)+ special corrosion inhibitor, In environments below 0°C, consider antifreeze(select a ratio according to a freezing point).

6.Regular maintenance and inspections are required to prevent corrosion or scaling, extending equipment lifespan.

7.Ensure at least 4-6 meters of air inlet space on both long sides of the dry cooler to maintain efficient heat dissipation.
