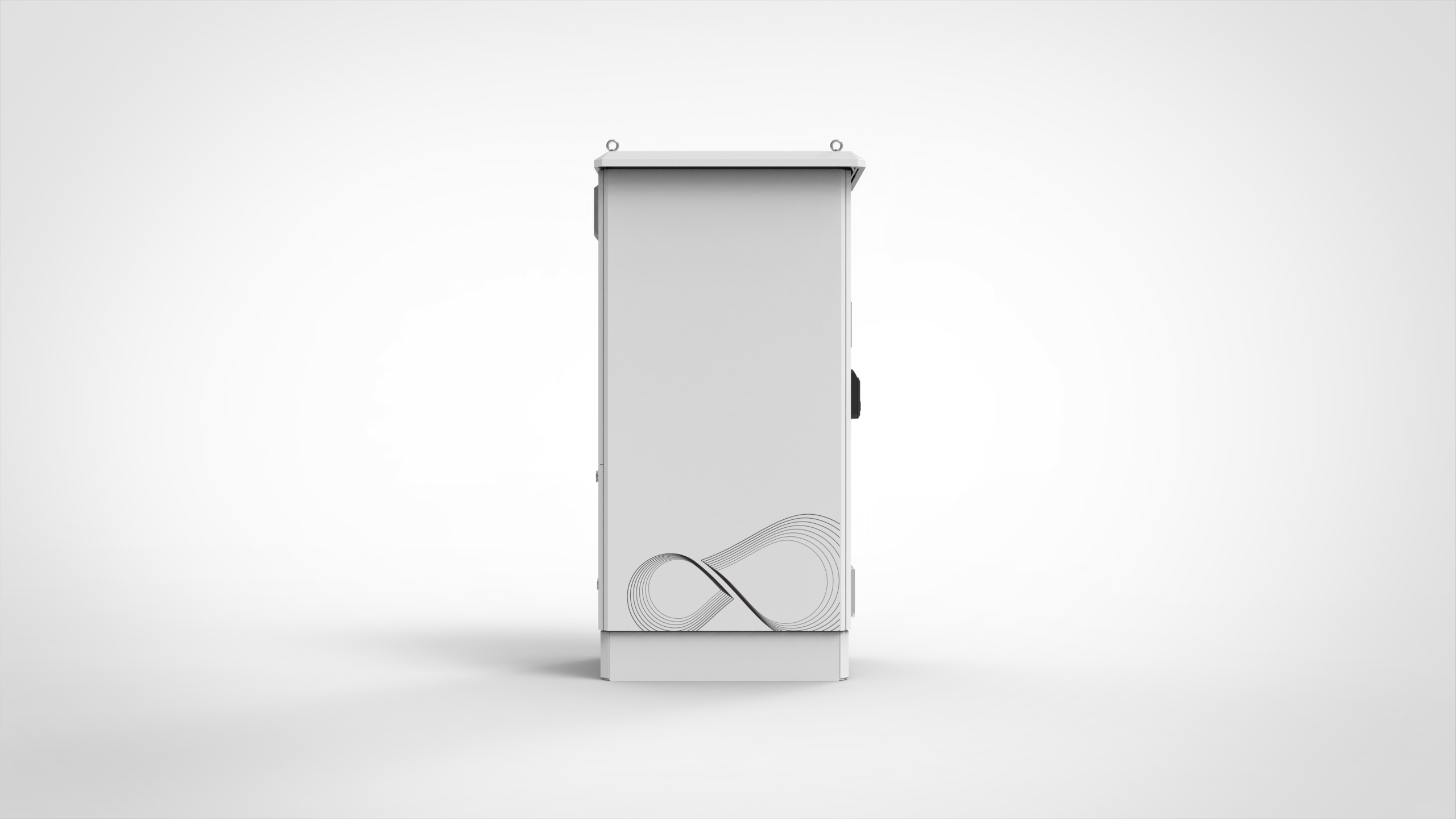

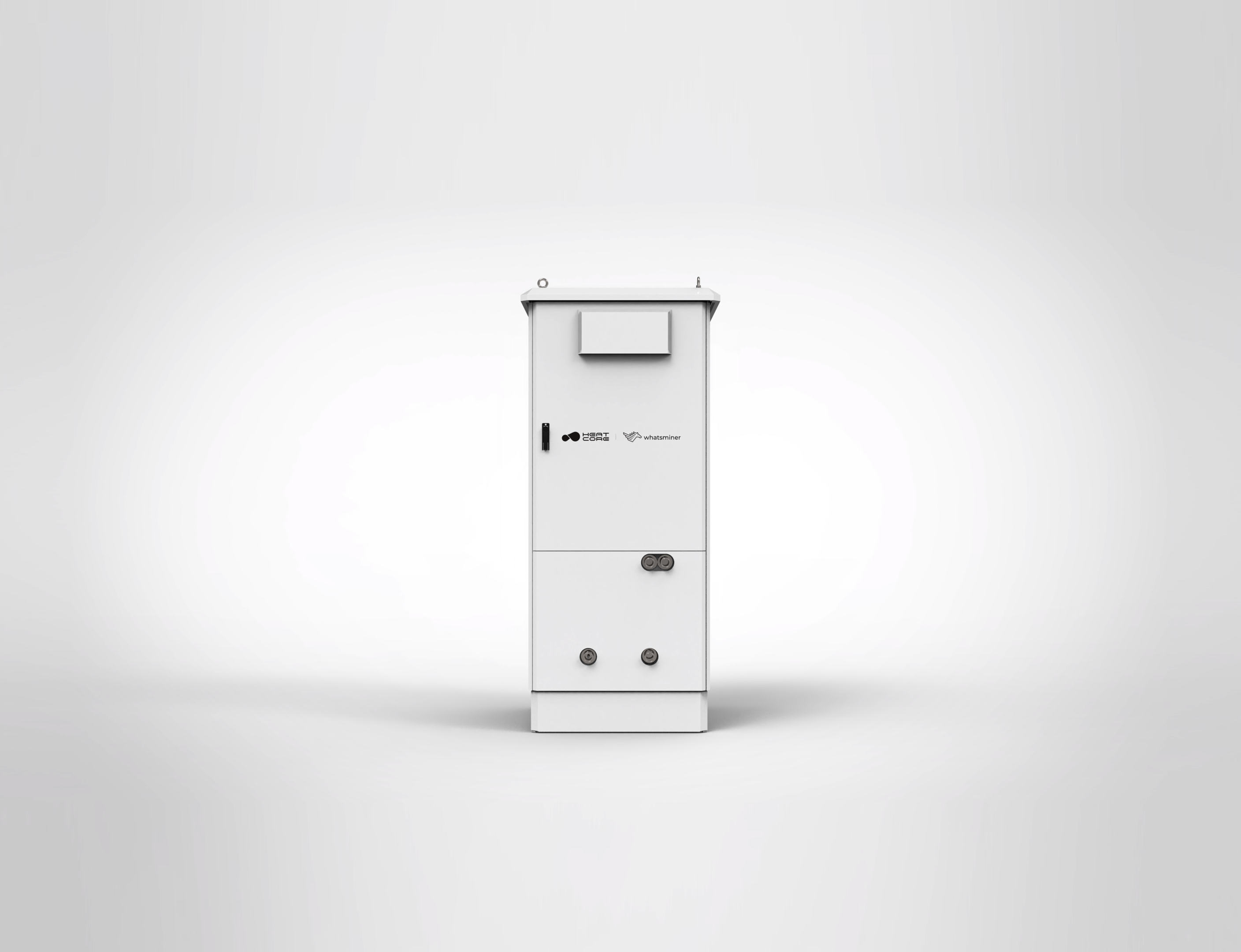

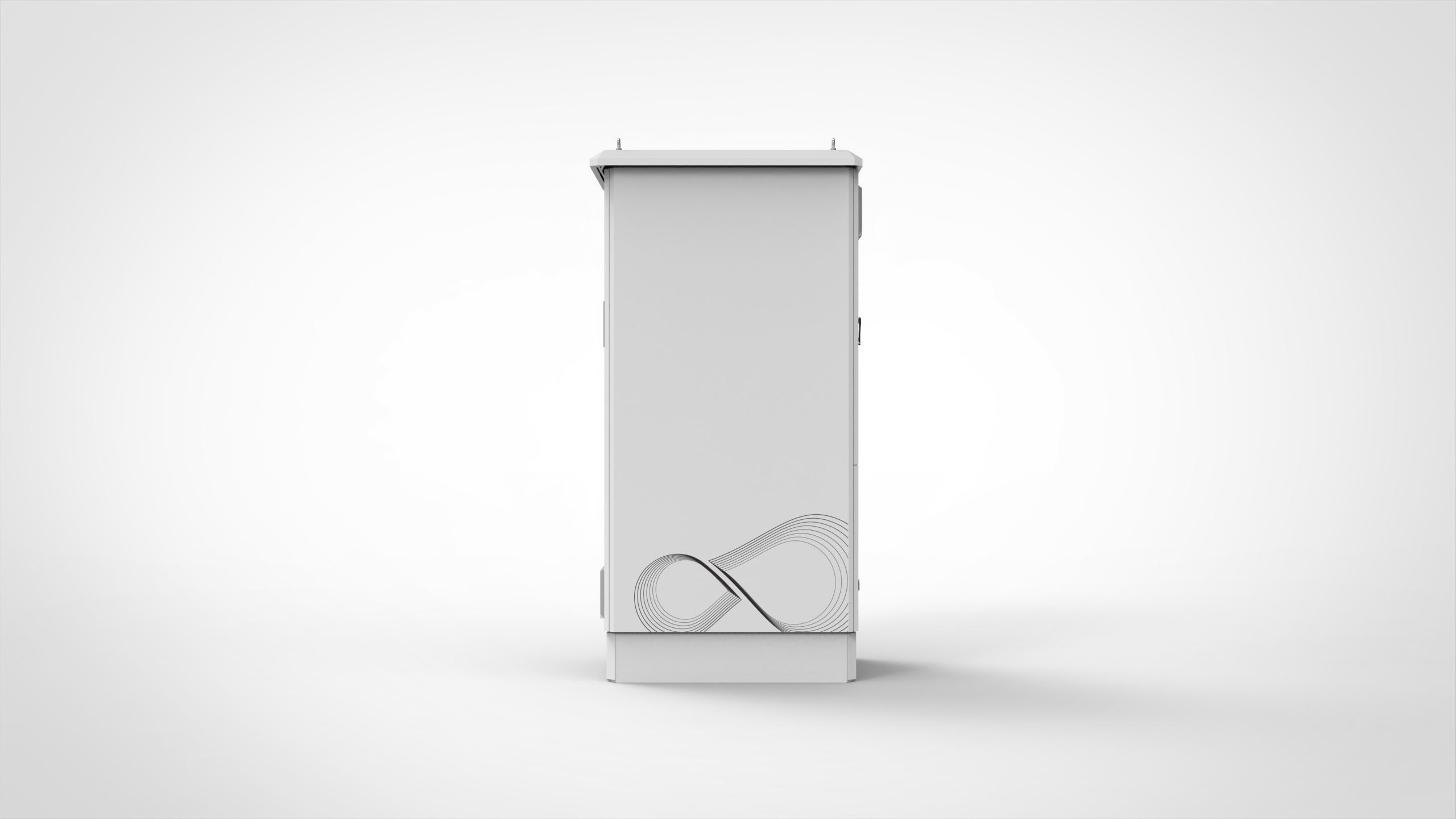

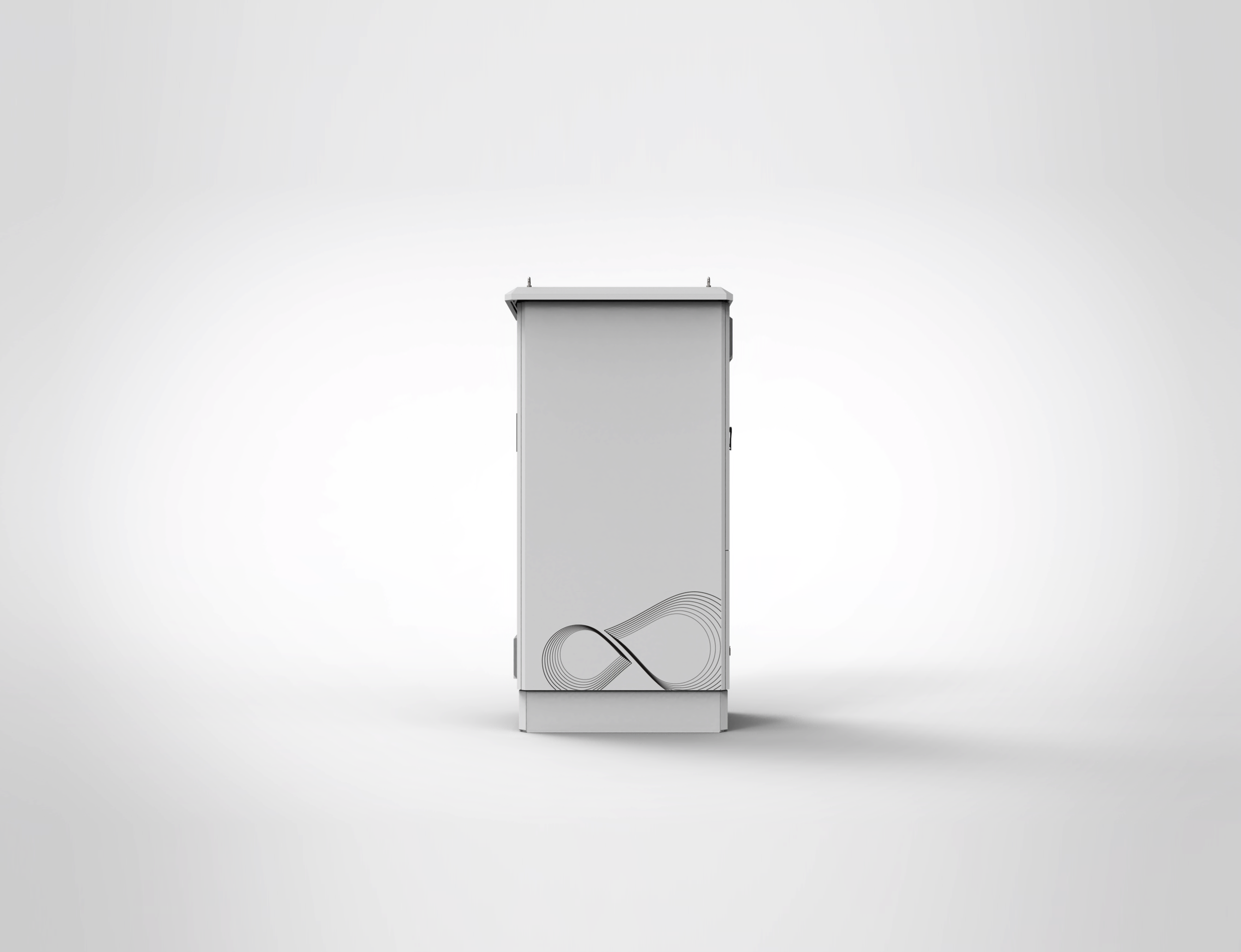

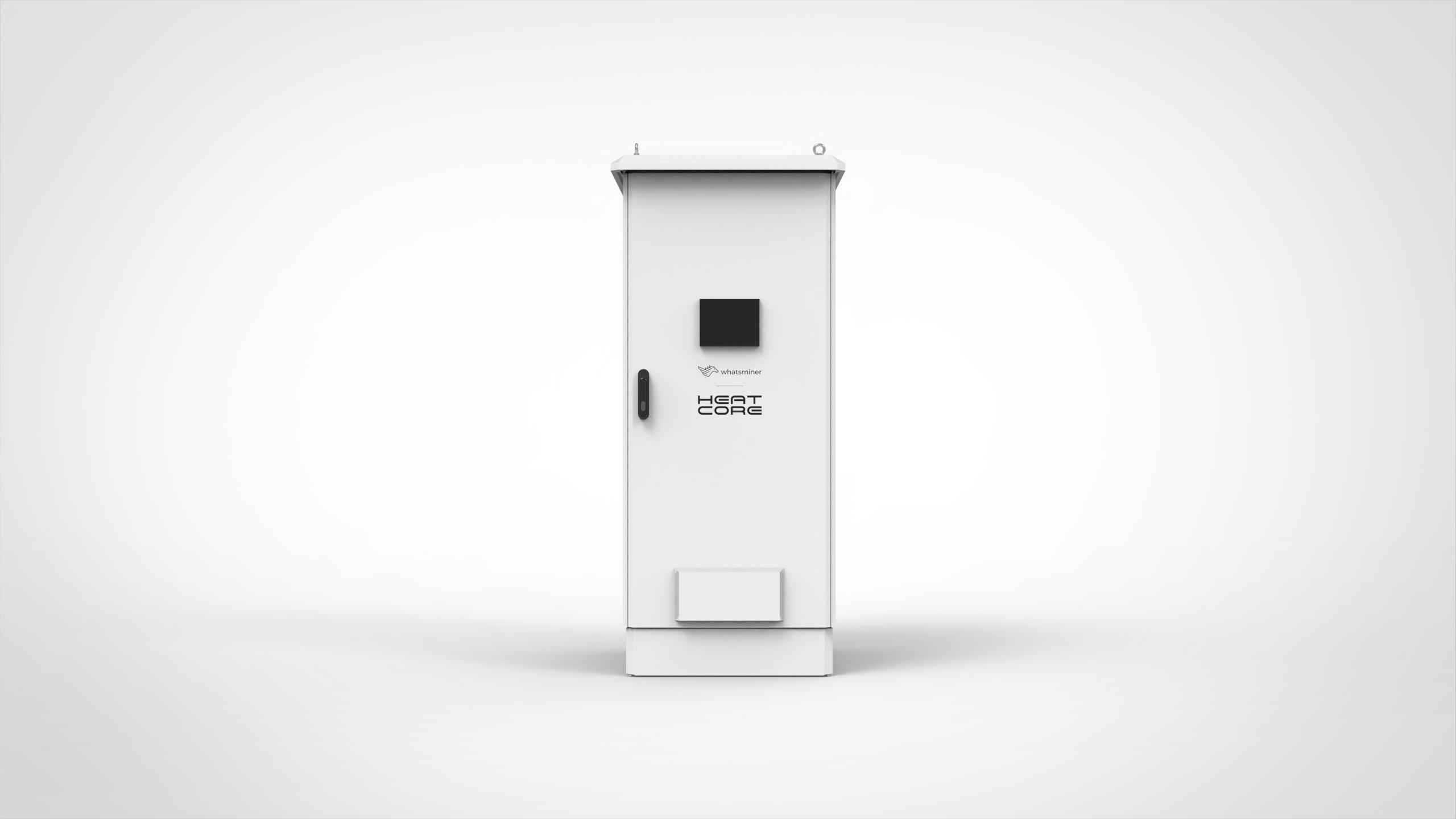

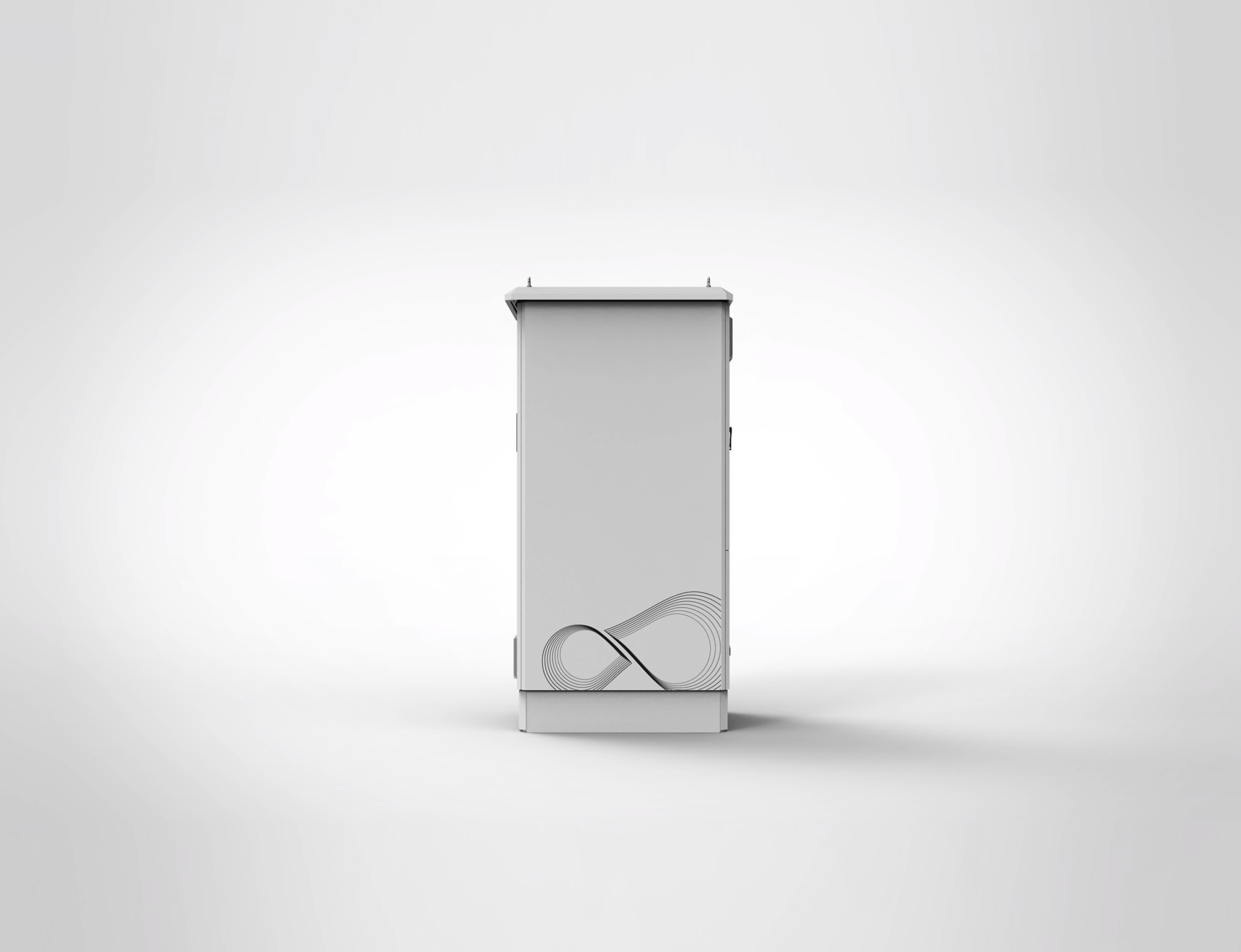

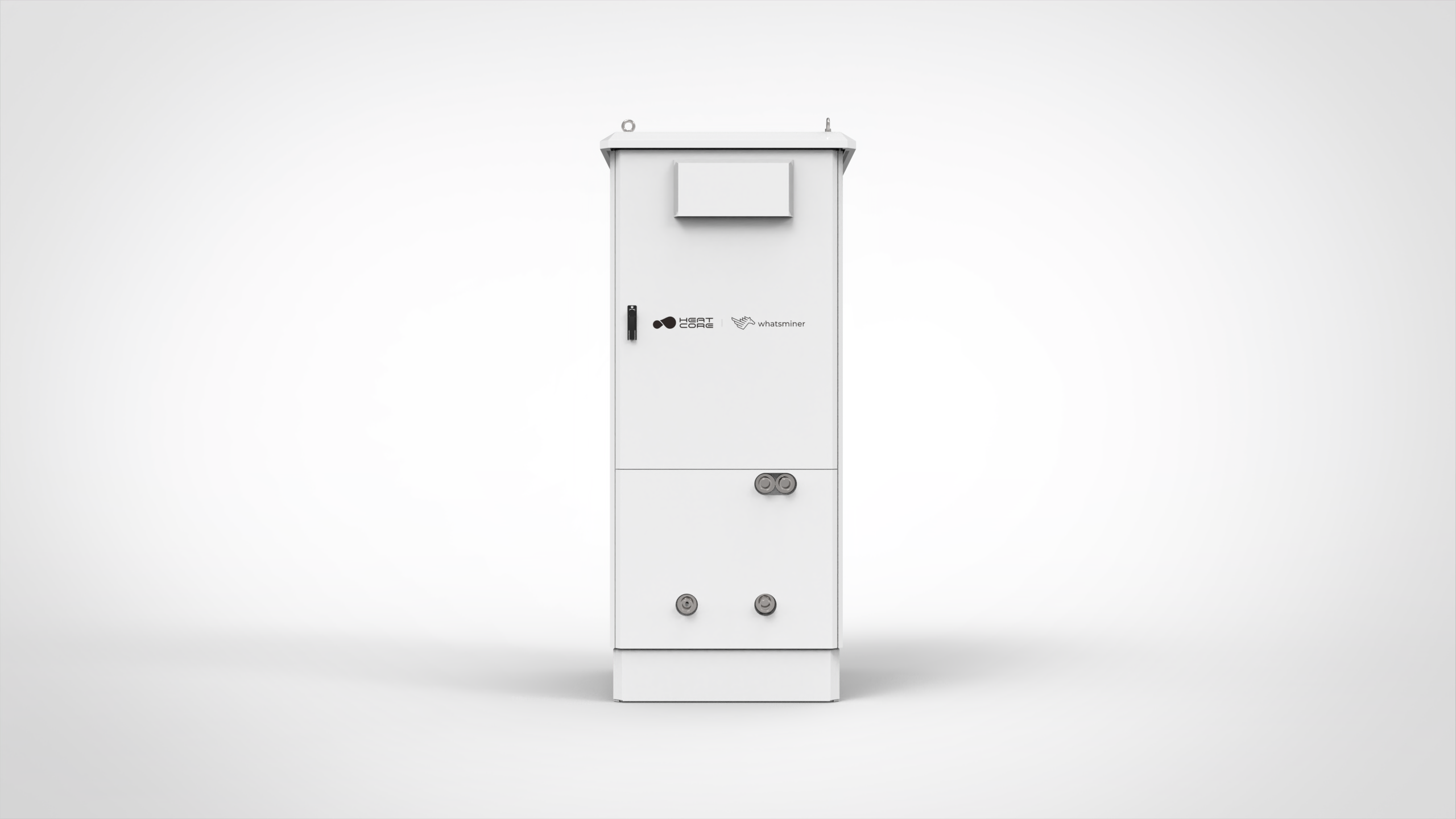

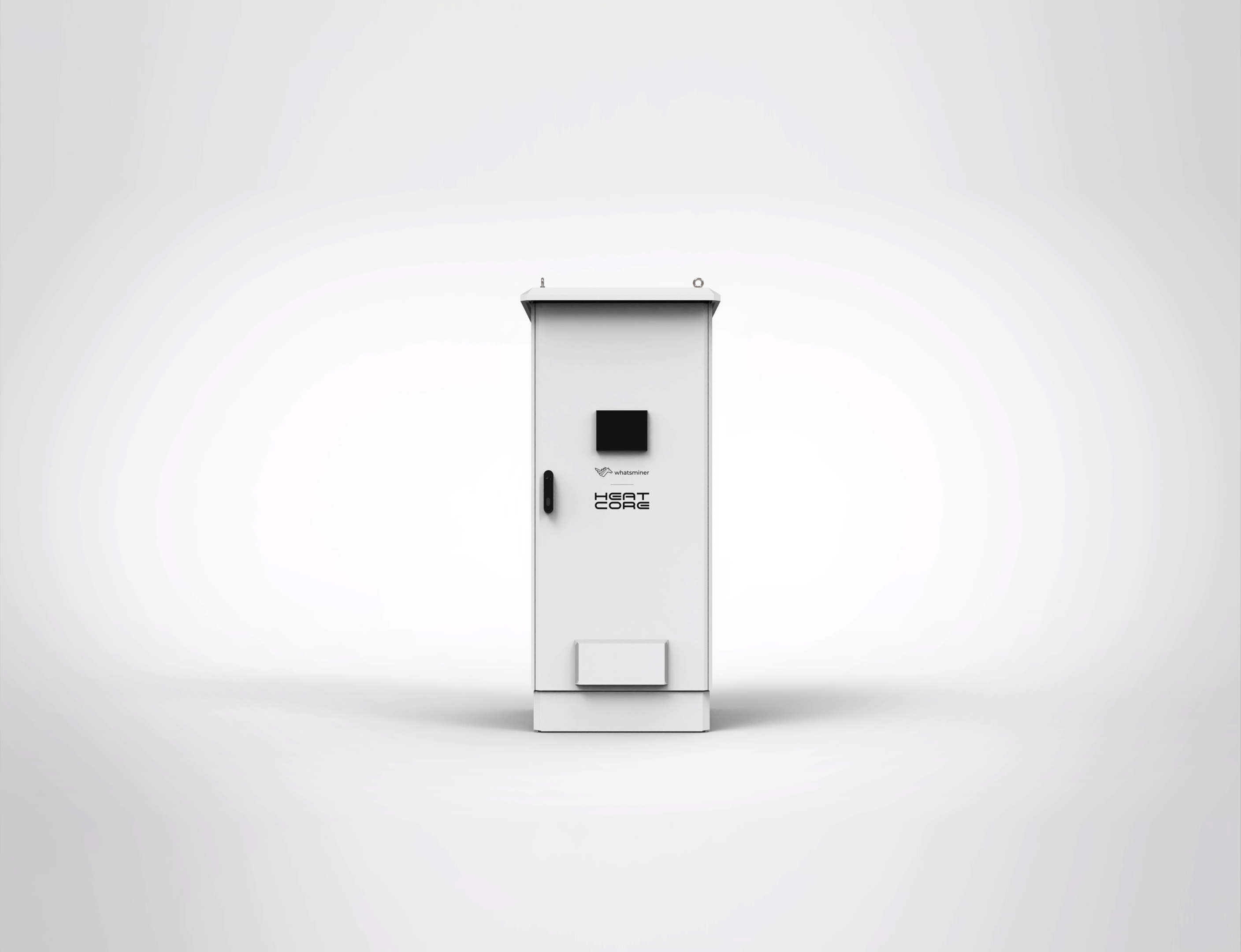

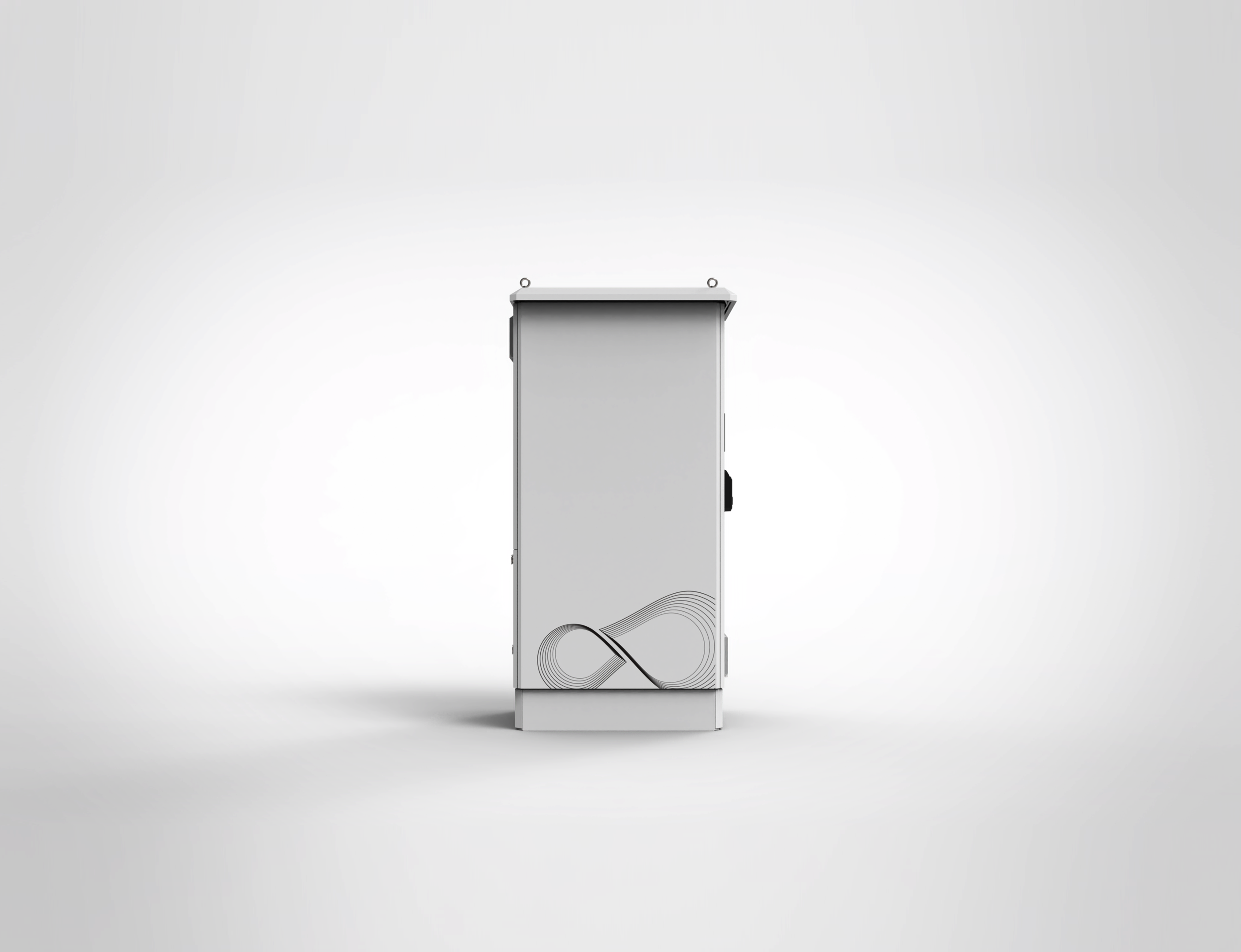

OUTDOOR RACK

Designed for stranded-energy mining applications, this outdoor rack is optimized for deployments with power capacities below 500 kW. Featuring an IP54-rated enclosure, it offers reliable protection against dust and water splashes, ensuring stable and continuous operation in harsh outdoor environments.

资源 34@4x

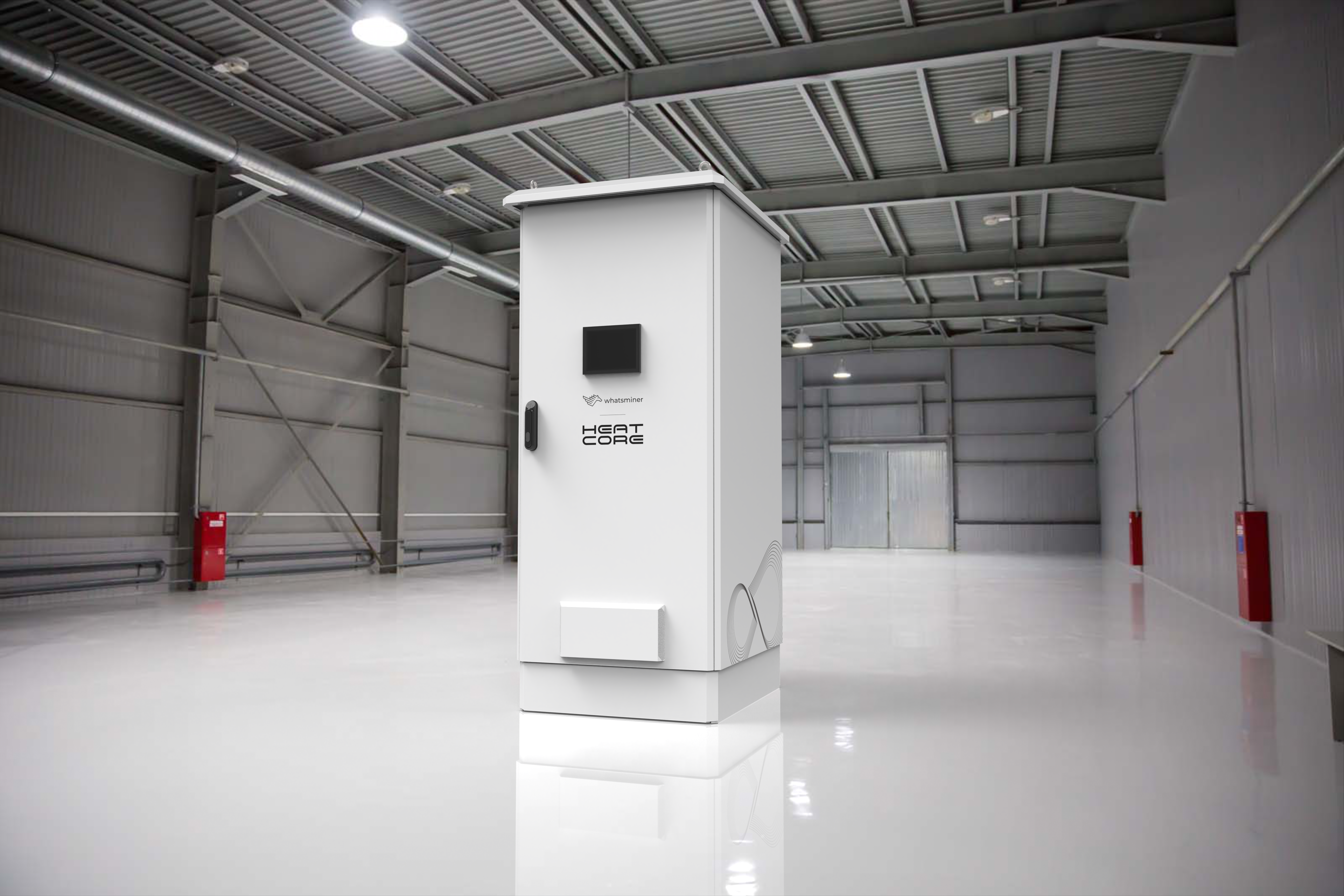

Outdoor Deployment

Outdoor Rack Series supports 10 WhatsMiner miners, integrating hydro-cooling, PDU, and CDU with IP54 protection and C3 anti-corrosion for outdoor use

资源 35@4x
Customization Heating

Optional plate heat exchanger enables rapid deployment for heating needs (domestic, building, farm)

资源 36@4x
User-Friendly O&M

Front/Rear access and touchscreen HMI simplify data control (pressure, temperature, pump), trend monitoring, and alarm notifications

ABOUT OUTDOOR RACK

OUTDOOR RACK SPECIFICATION
CATEGORY DETAILS
Model MS100
Max Operating Current 160A
Dimensions (L x W x H) 800x1000x2300mm
Net Weight/Operating Weight 550kg/850kg
Power Supply Voltage and Hertz 3-Ph/PE 380-480V 50/60Hz
Socket Outlet Voltage 3-Ph/PE 380-480V 50/60Hz
Max. Output Temperature 80°C(176 °F) (after plate heat exchanger, up to 75°C/ 167 °F)
Certification CE or CSA Field Evaluation
