SMART CONTROL SYSTEM

The Coolant Distribution Unit (CDU), also known as the Smart Control System (SCS), manages hydro loops in batches and is integrated into all our products, from the compact H series to the large-scale N series. For N and E series systems, we customize the SCS to incorporate redundancy and electrical infrastructure considerations.

XXXXX

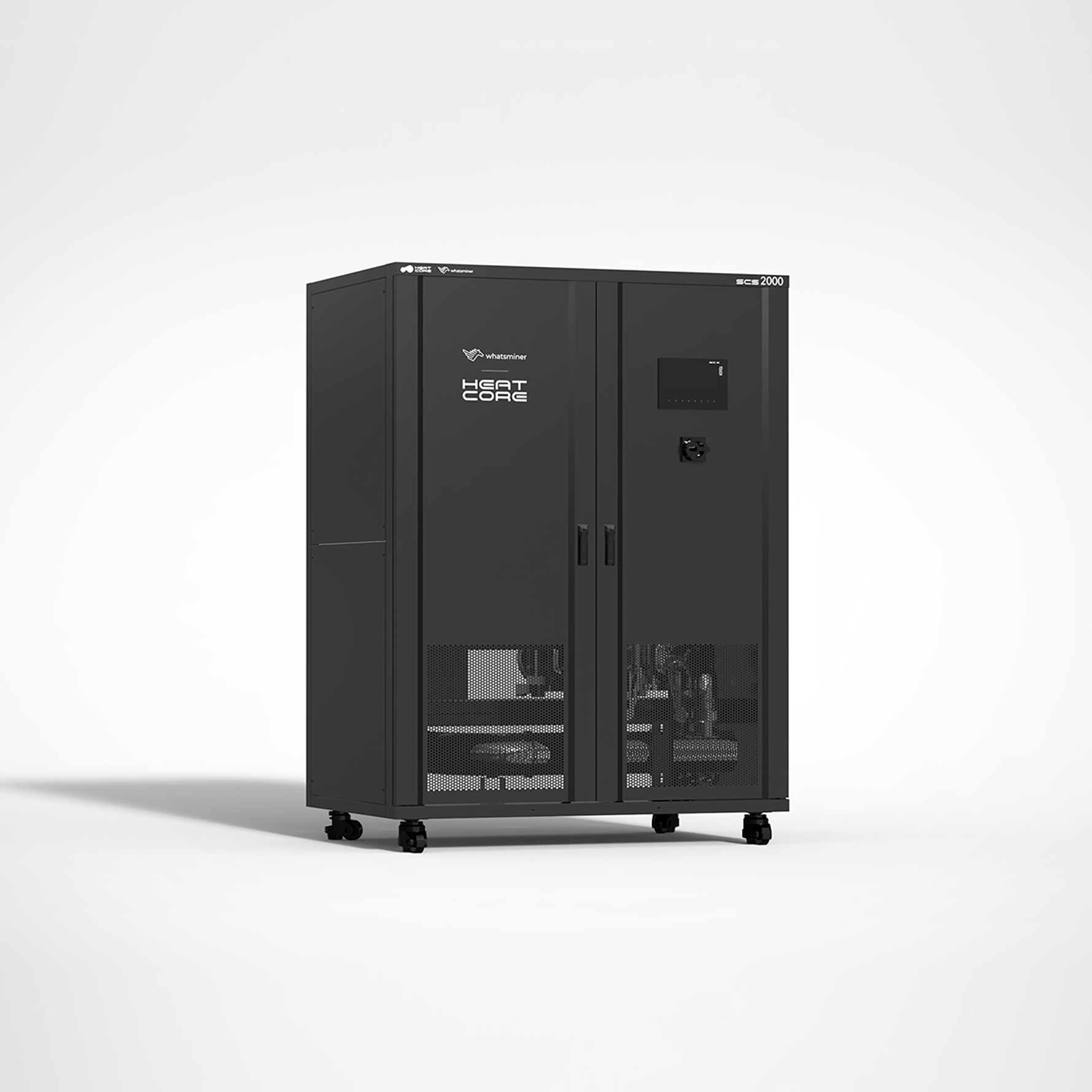

1-Apr-03-2025-10-59-00-8420-AM
1-Apr-03-2025-10-59-00-8420-AM
XXXX SPECIFICATION

Category Details
Model HS05
Rack Capacity 1 Unit M64 series
Main Components Included Smart Control System(CDU), PDU, etc.
Dimensions (L x W x H)-mm 480*600*545
Dimensions(without dry cooler) (W x D x H)-mm
Net Weight/Operating Weight-kg 35 kg/ 50 kg
   Net Weight/Operating Weight(without dry cooler)-kg
   Input power Single Ph/N/PE 200-240V 50/60Hz
   Max Power Consumption 6 kw
   Maximum output Temperature
   Thermal Efficiency 95%
   No. of heat exchanger 2
   Electrical Code for the US
   Electrical Code for the EU





Smart Control System
The Heart of Hydro Cooling System

资源 41@4x
Energy Efficiency & Low PUE

Compared to traditional Air Cooling, the closed-loop Hydro cooling solution has higher heat exchange efficiency, which achieves lower PUE with zero water consumption and reduced noise

资源 42@4x
Stable Thermal & Pressure Control

Innovative PLC-based control logic ensures automatic coolant replenishment, temperature fluctuation within ±2℃ and supply-return pressure difference within (1.0 bar) control, guaranteeing stable server operation

资源 43@4x
O&M with Visibility & Serviceability

With the Heat Core Cloud platform, and local touchscreen HMI（Human Machine Interface ), operators could have easy access to set critical data, monitor the trend curve , get notified for the alarms

Smart Control System (CDU)



Energy Efficiency & Low PUE​

Compared to traditional Air Cooling, the closed-loop Hydro cooling solution has higher heat exchange efficiency, which achieves lower PUE with zero water consumption and reduced noise

Stable Thermal & Pressure Control​

Innovative PLC-based control logic ensures automatic coolant replenishment, temperature fluctuation within ±2℃ and supply-return pressure difference within (1.0 bar) control, guaranteeing stable server operation

O&M with Visibility & Serviceability​

With the touchscreen HMI（Human Machine Interface ), operators could have easy access to set critical data(pressure difference, target temperature, pump), monitor the trend curve , get notified for the alarms.

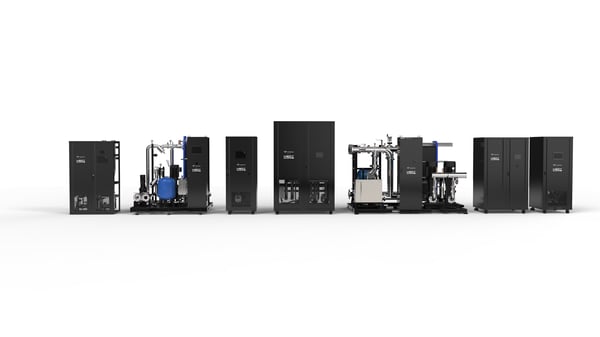

SCS系列.0

Customized Smart Control System

Leveraging our expertise in the IDC industry, we have customized a smart control system.

In the IDC sector, the Coolant Distribution Unit (CDU) manages coolant flow between racks and the cooling system. Our goal is to enhance this functionality by integrating it with our cloud monitoring system and automated control logic, making the system smarter and more efficient.

The scale of each independent system involves a balance between redundancy and cost, and considerations for system layout and power distribution are essential. Rest assured, our engineers are here to provide you with optimal solutions.
