N Series

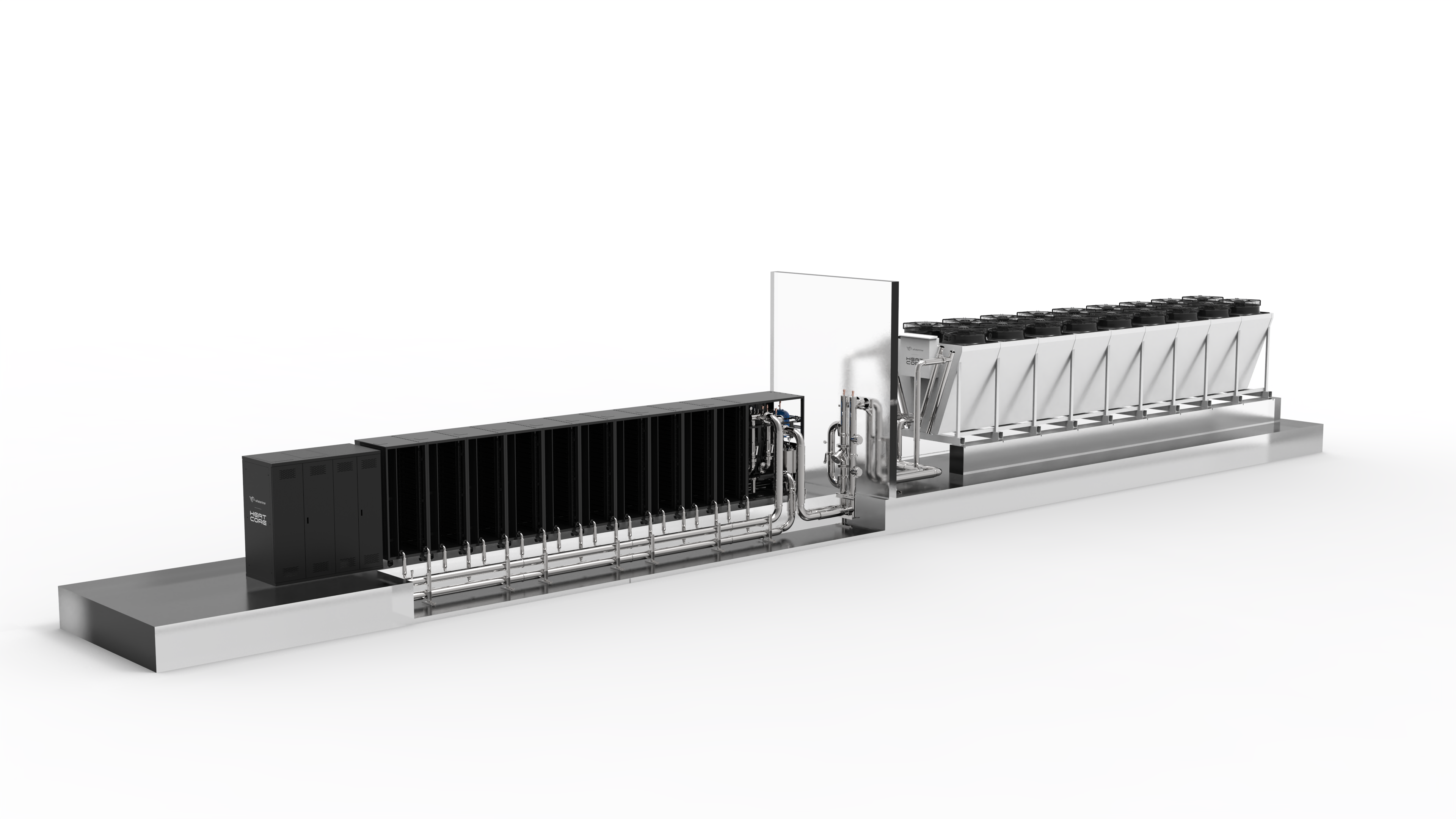

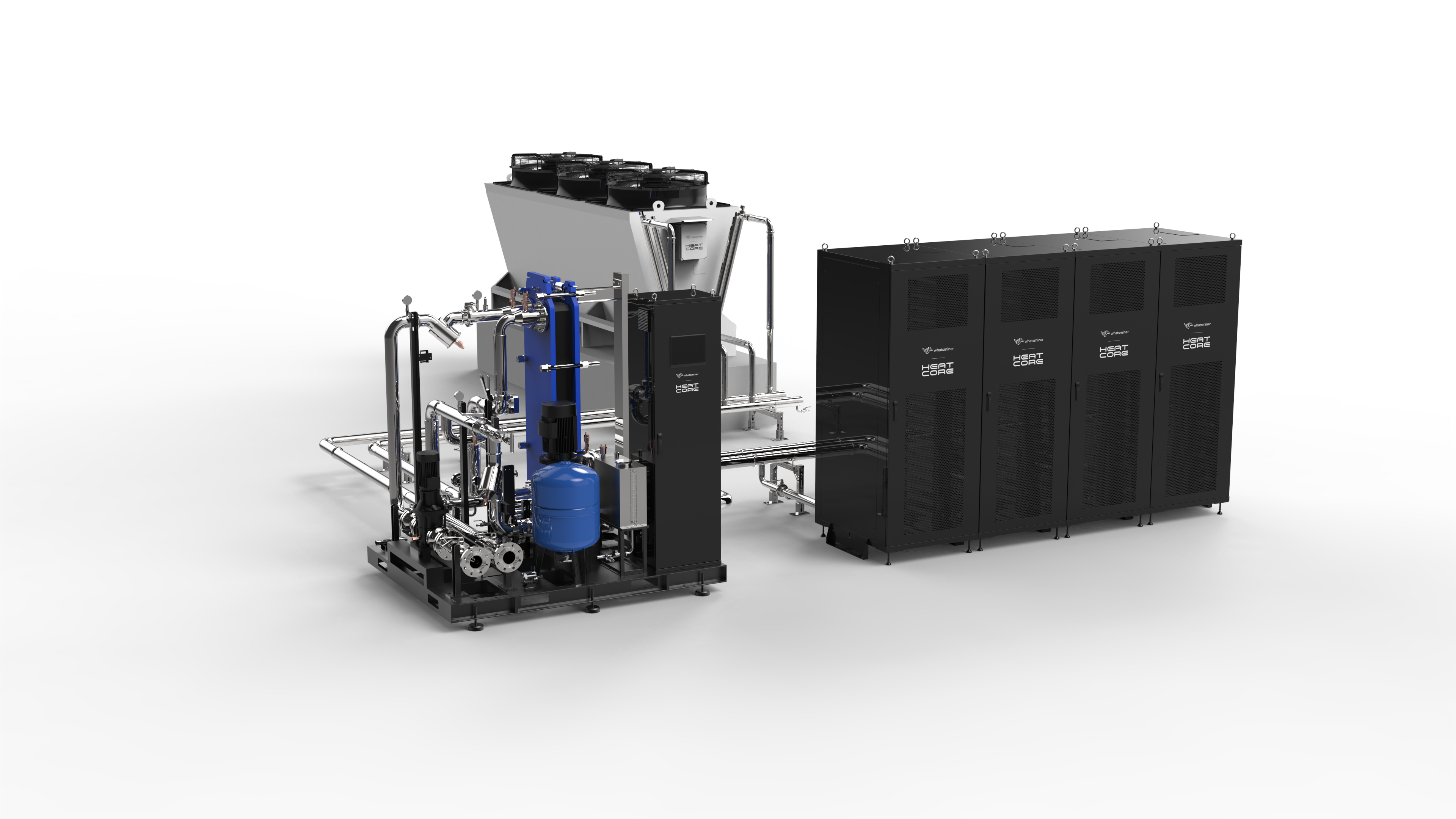

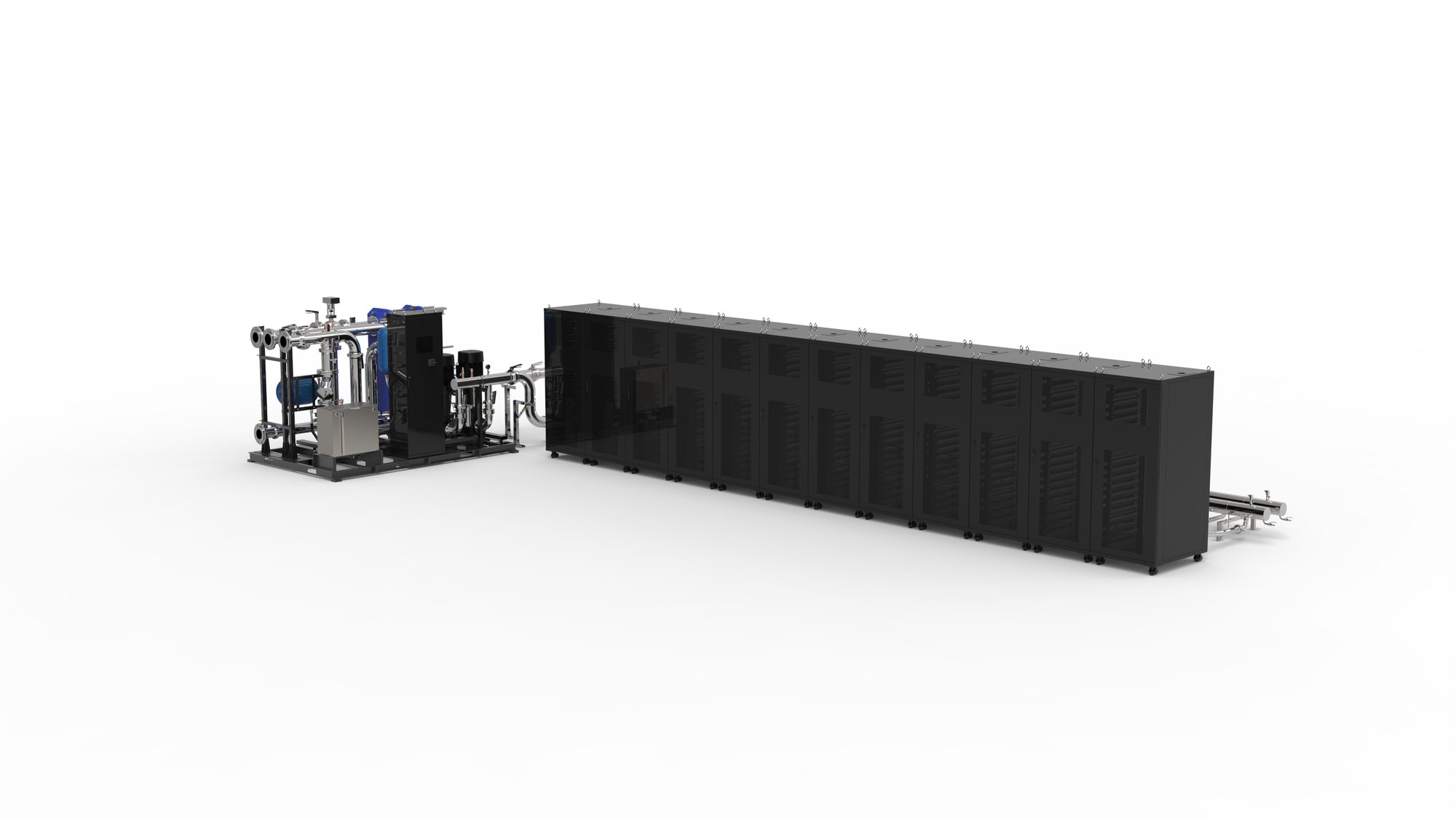

The N Series is an indoor hydro cooling solution based on traditional IDC rack system, enhanced by HeatCore’s proprietary hydro cooling design. It supports flexible deployments from 200 to 2400 kW and offers a high level of customization for projects of varying scales.

资源 27@4x-1
Scalability & High-Density

Modular design. Supports up to 20 WhatsMiners miners. Easy production and expansion

资源 28@4x-1
Premium Durability

Built with Q235 steel rack, 304 stainless steel manifold, and EPDM hoses for high strength and corrosion resistance

资源 29@4x-1
Safety & Compliant

Fully compliant: UL-certified components, meets CSA standards and NEC/IEC regulations, CSA Field Evaluation supported.Water-electricity isolation design for safety

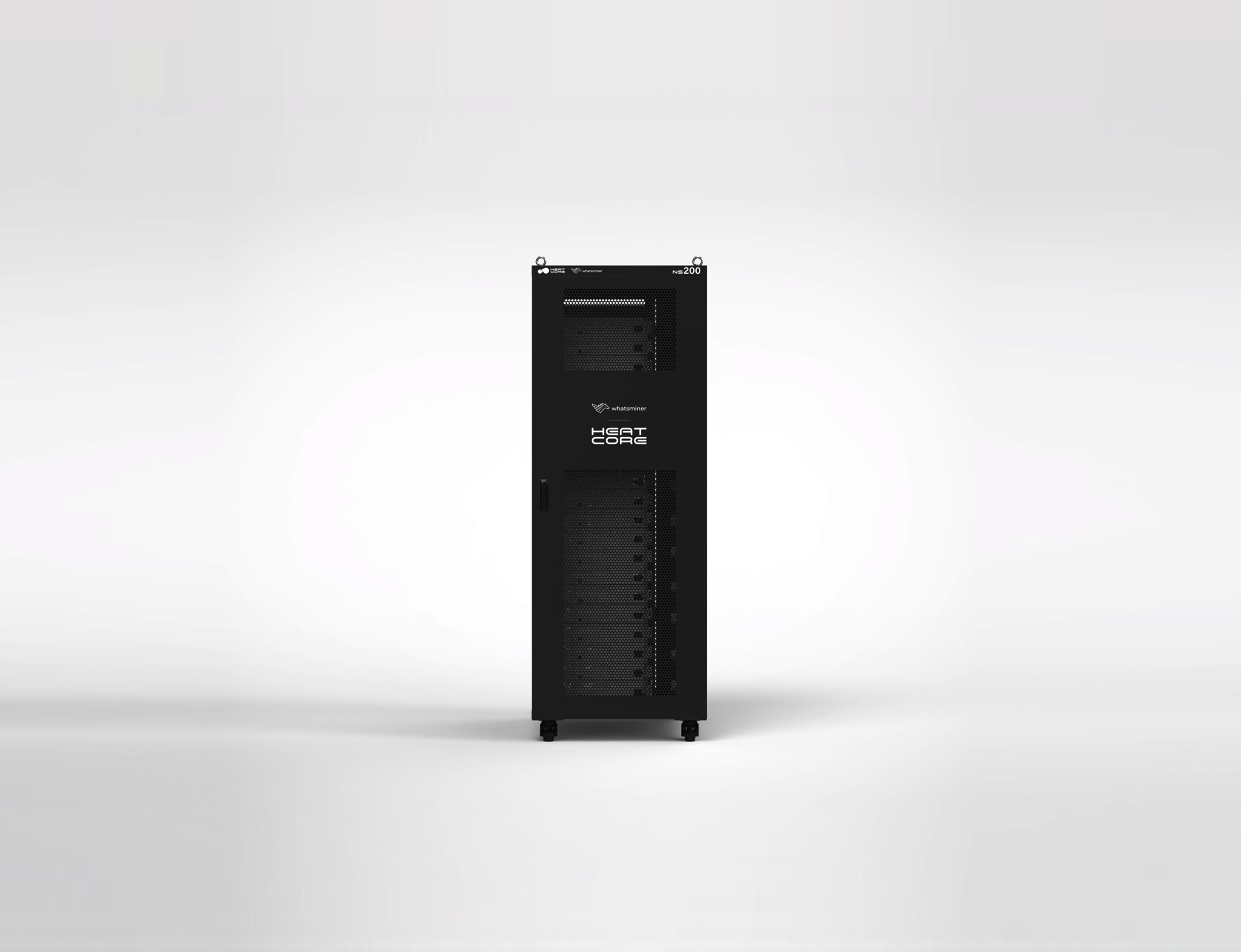

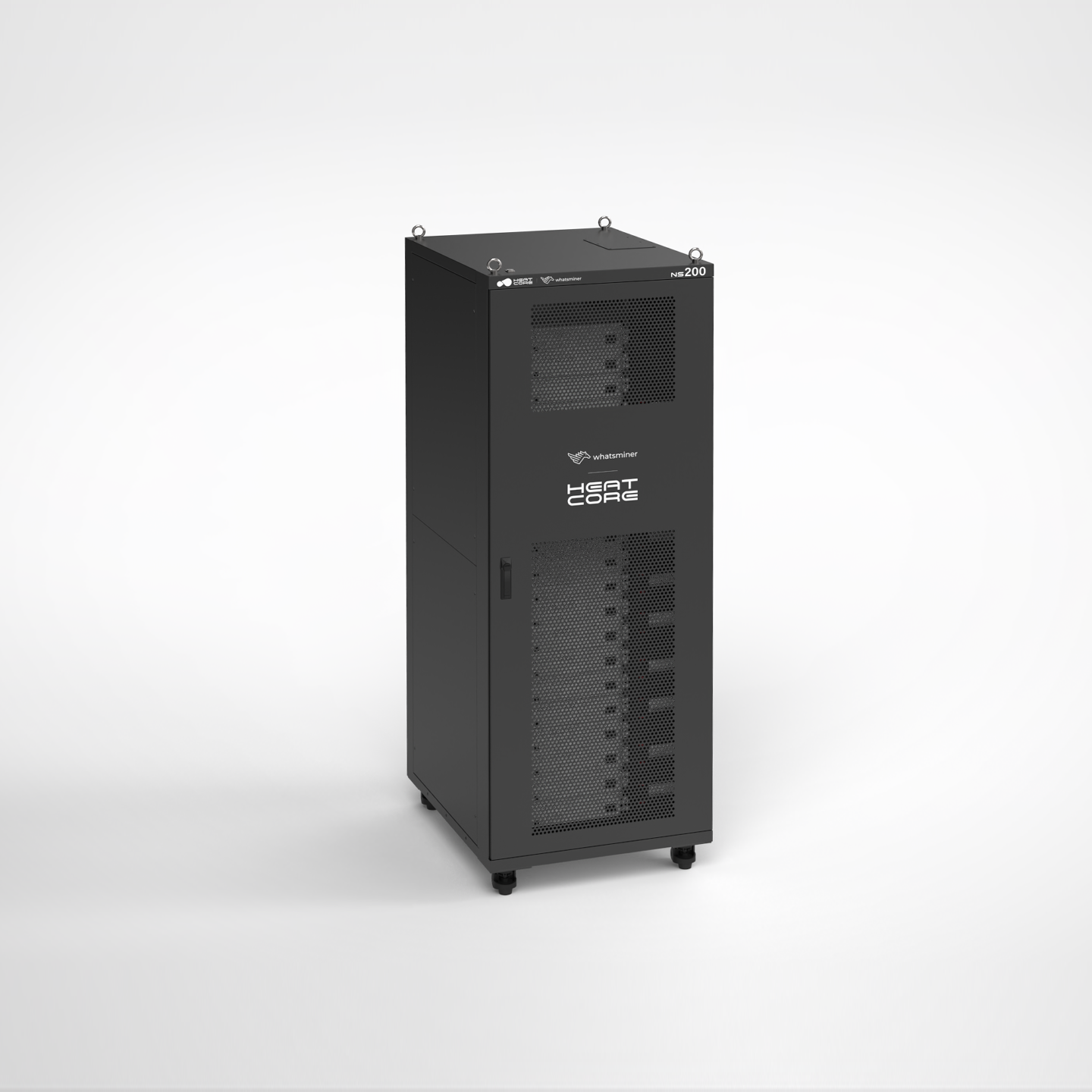

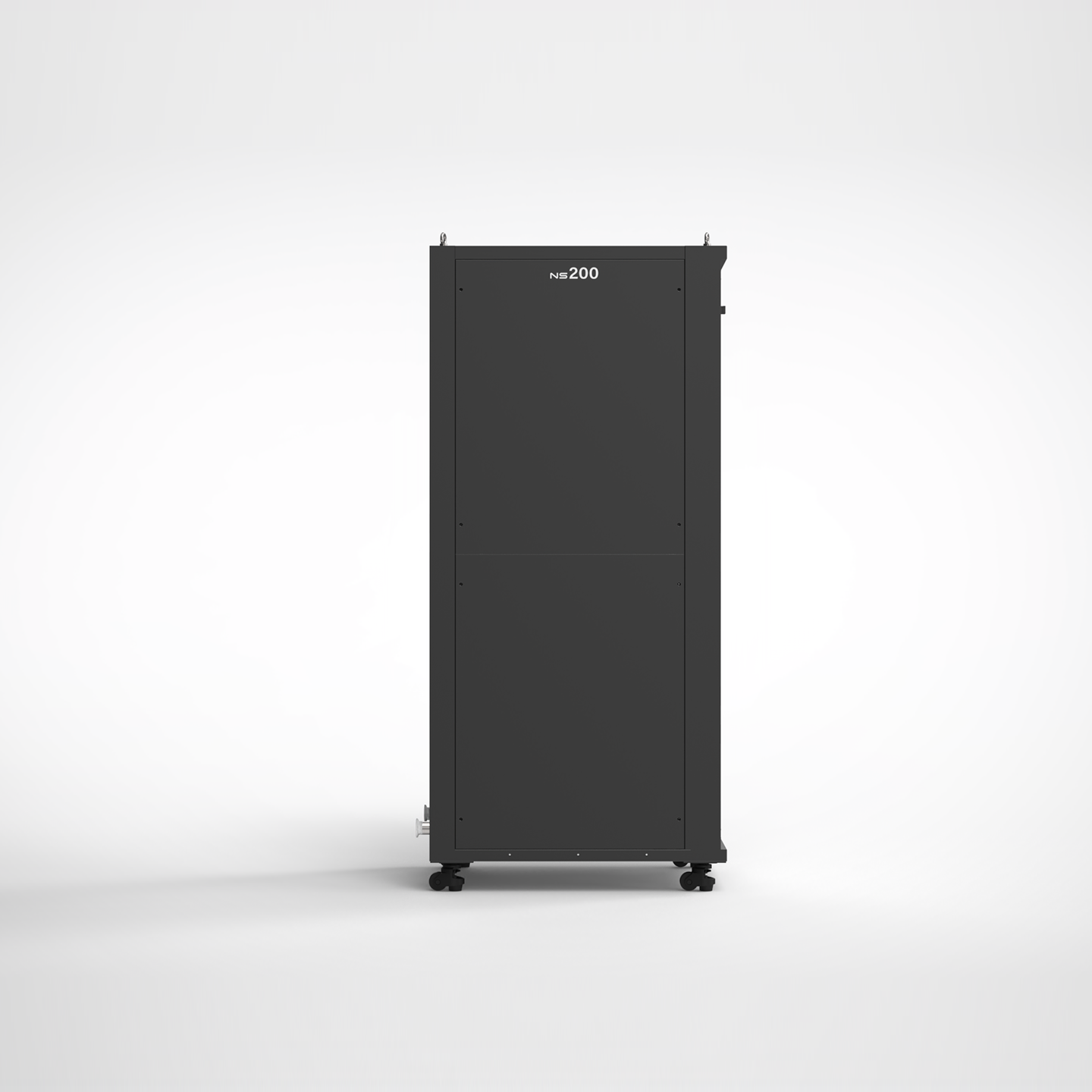

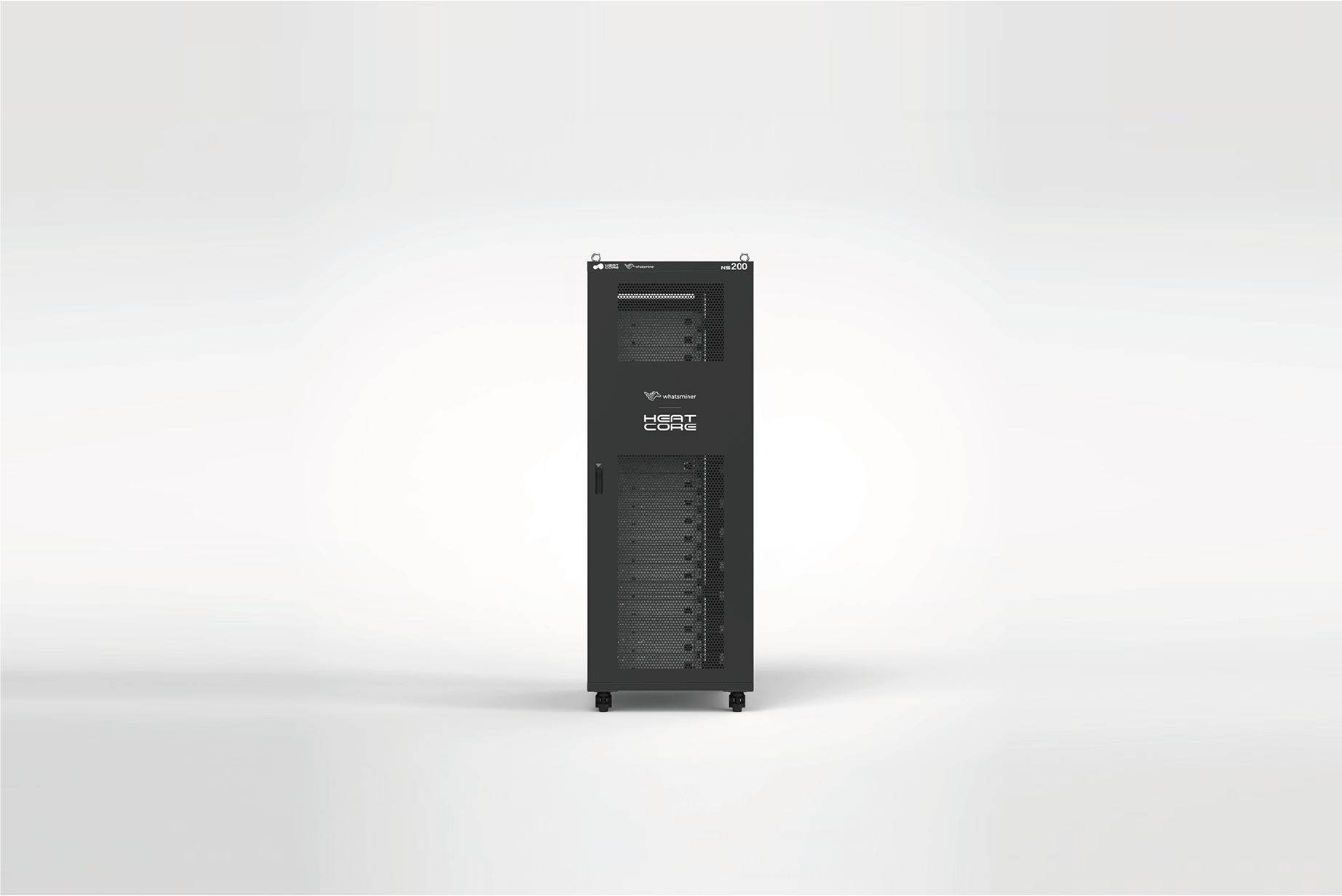

ABOUT NS200

NS200 SPECIFICATION
CATEGORY DETAILS
Model NS200
Rack Capacity 20 units
Main Components Included PDU/20*Server Slots/Manifold
Rack‘s Dimensions (LxWxH) 800x1000x2050mm
Rack‘s Net Weight/Operating Weight 270kg/870kg
Input Power  3-Ph/PE  380-480V 50/60Hz
Max. Power Consumption 200kW
Max. Output Temperature 80°C(176 °F) (after plate heat exchanger, up to 75°C/ 167 °F)
Thermal Efficiency 95%
Smart Control System(CDU) Customized on Demand
Heat Exchangers Customized on Demand
Dry Coolers Customized on Demand
Pipe System Customized on Demand
Electrical Code for the US NFPA 70
Electrical Code for the EU IEC 61439, IEC 60204
Certification CE or CSA Field Evaluation

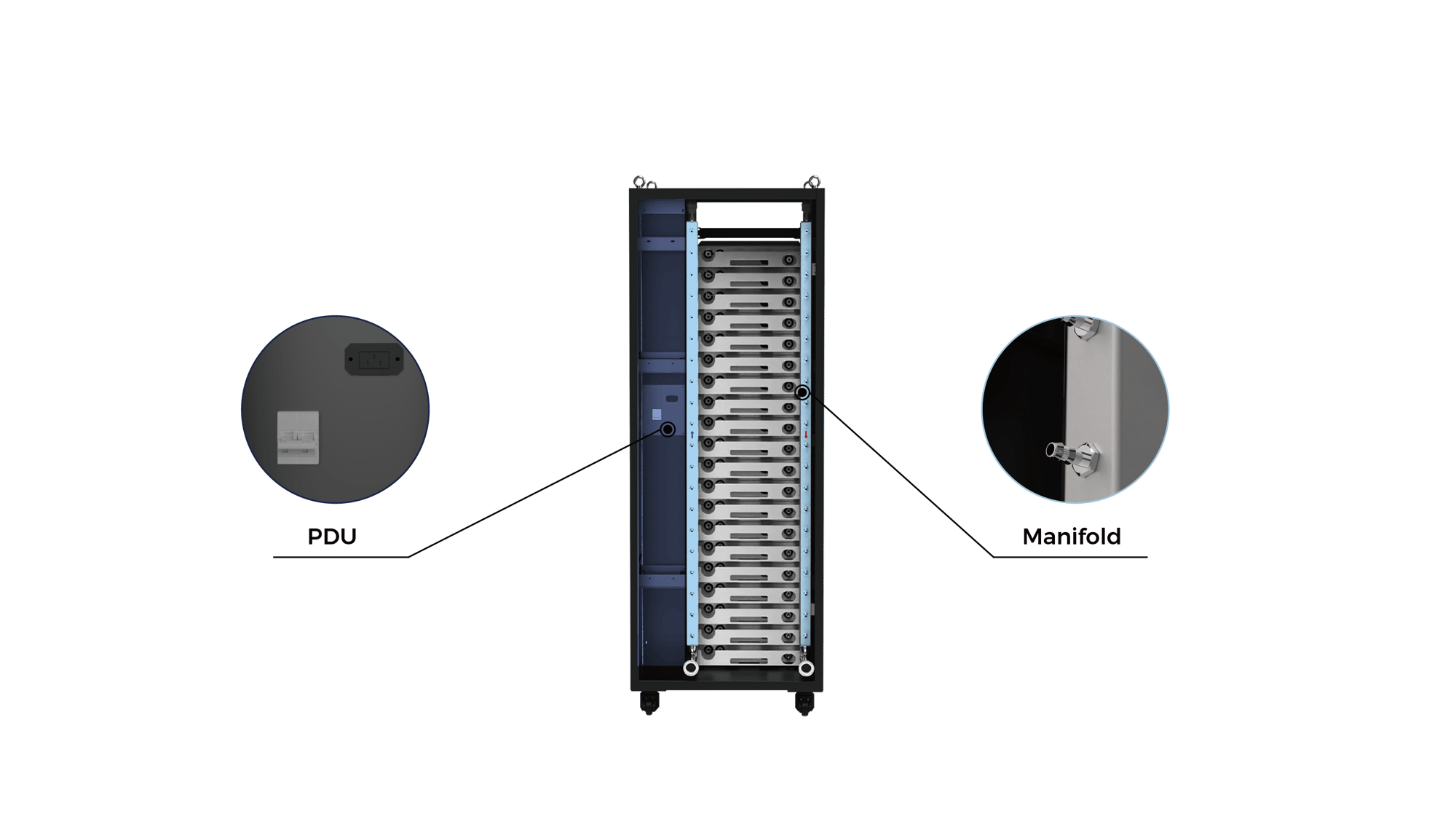

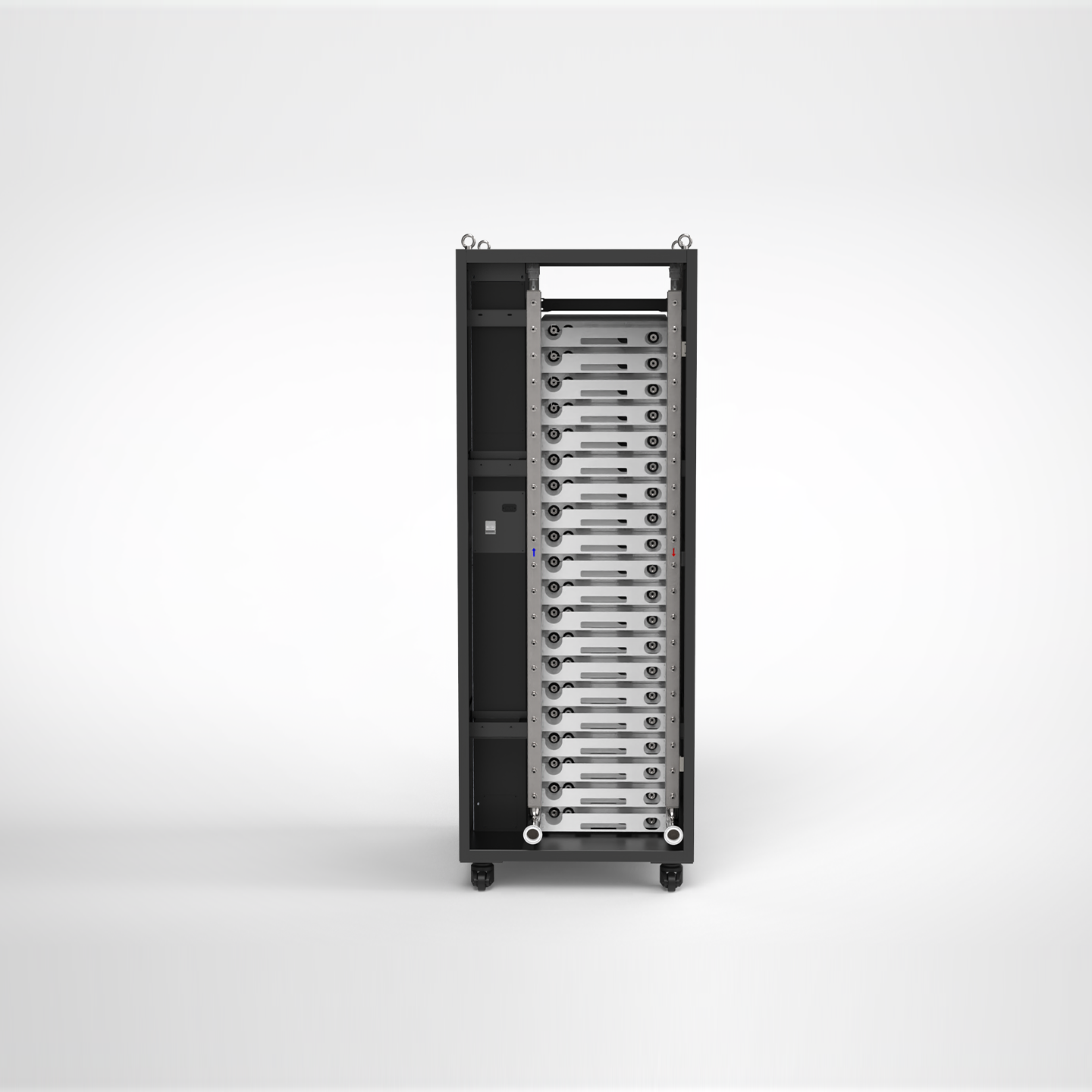

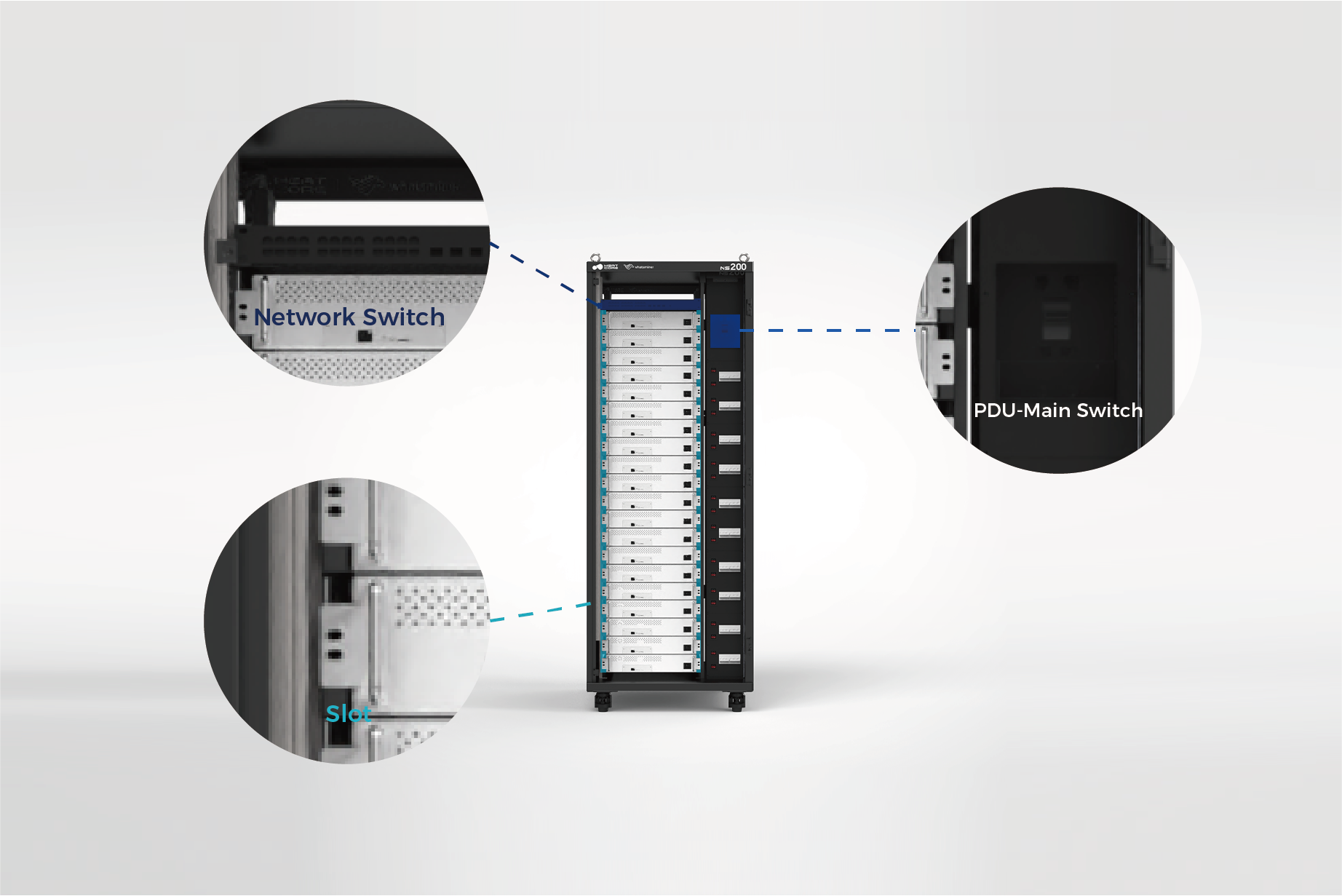

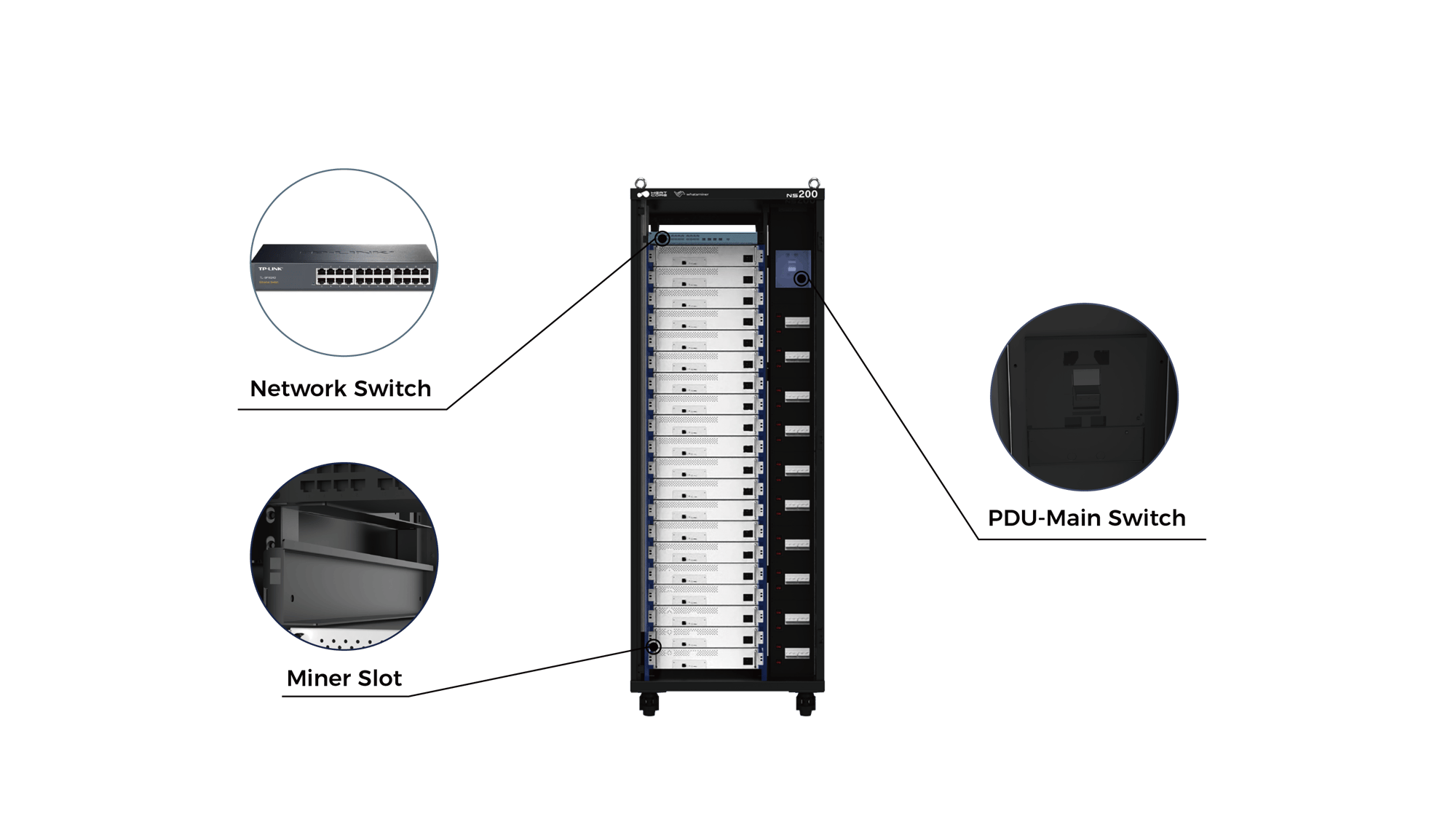

NS200 Rack Internal Structure

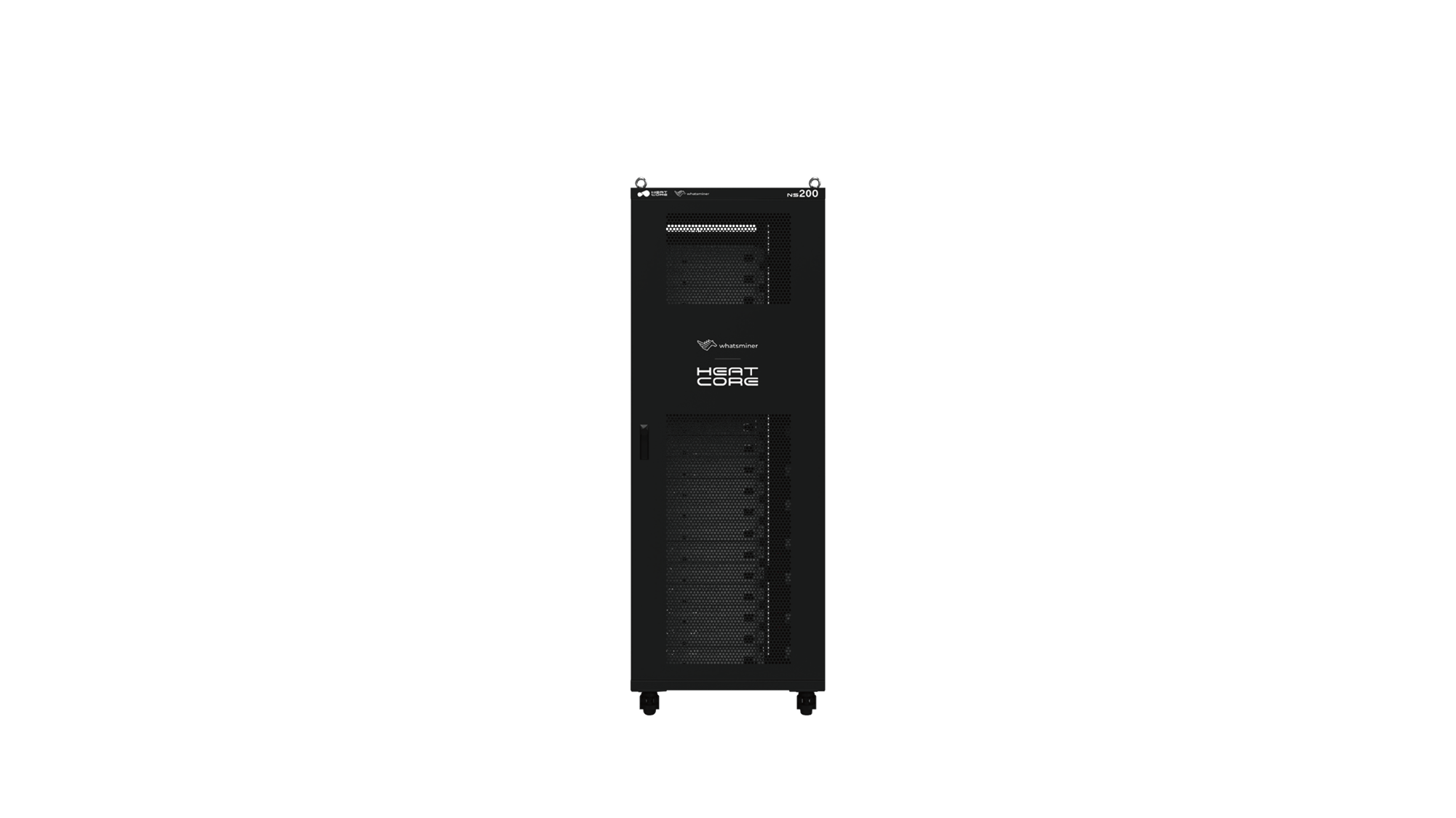

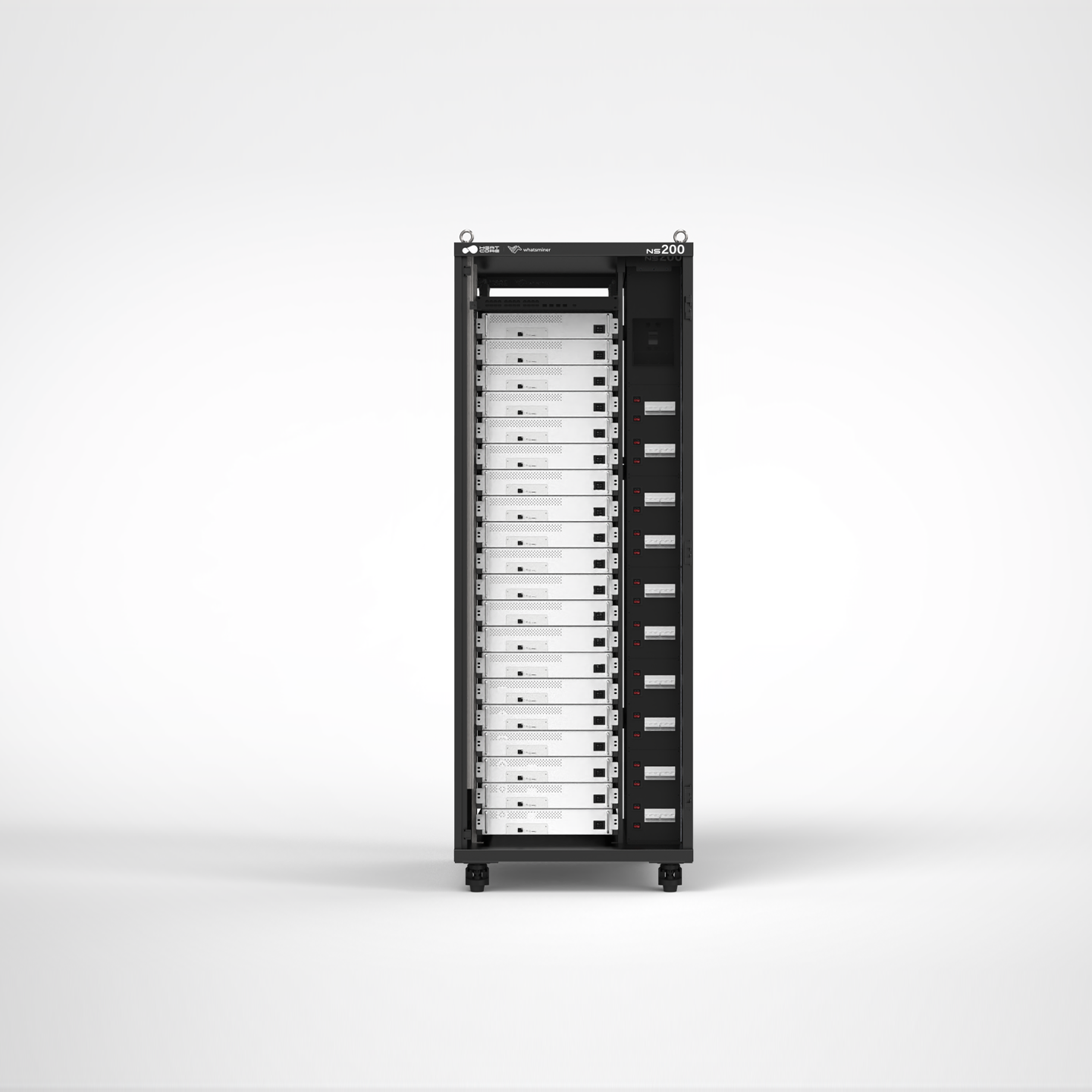

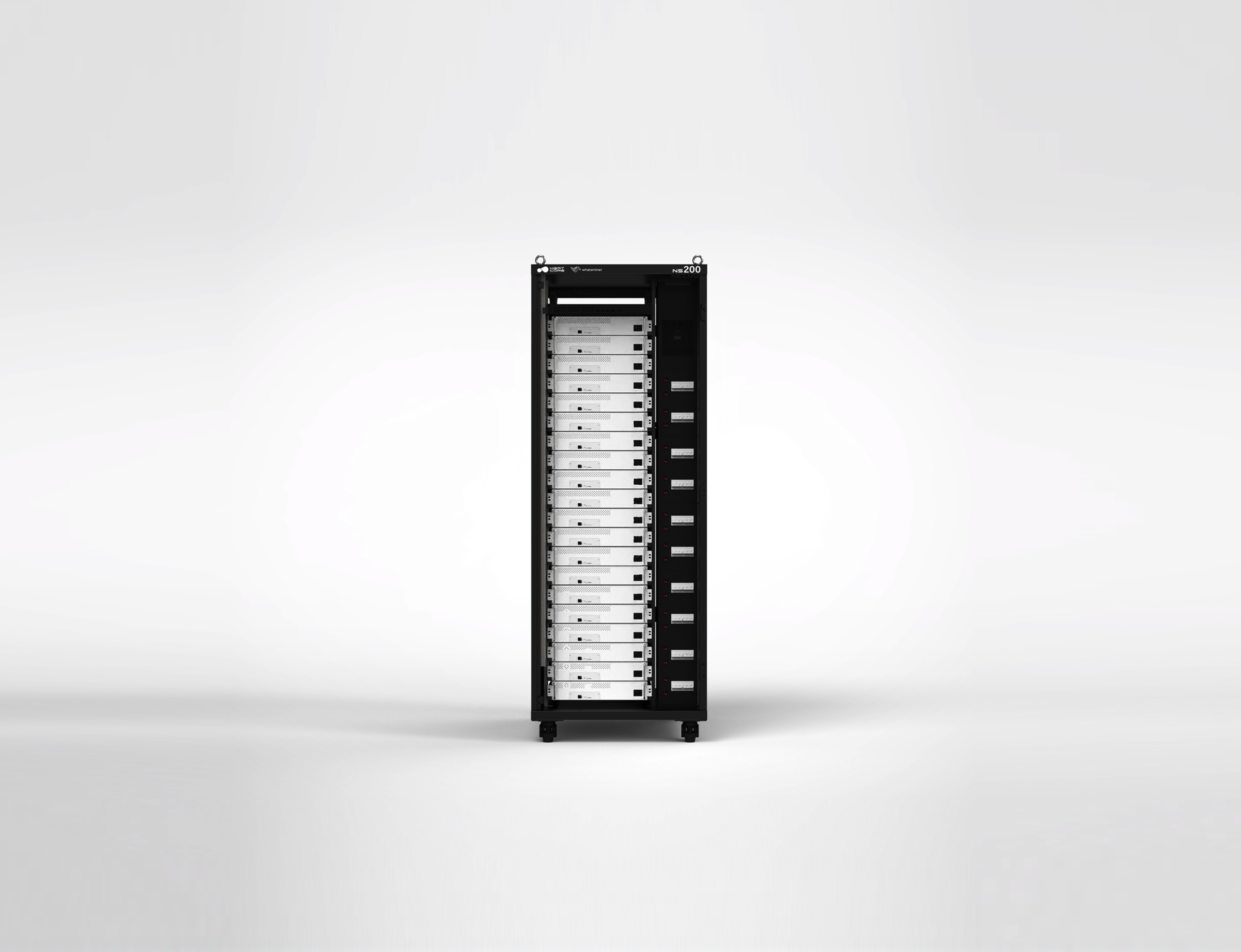

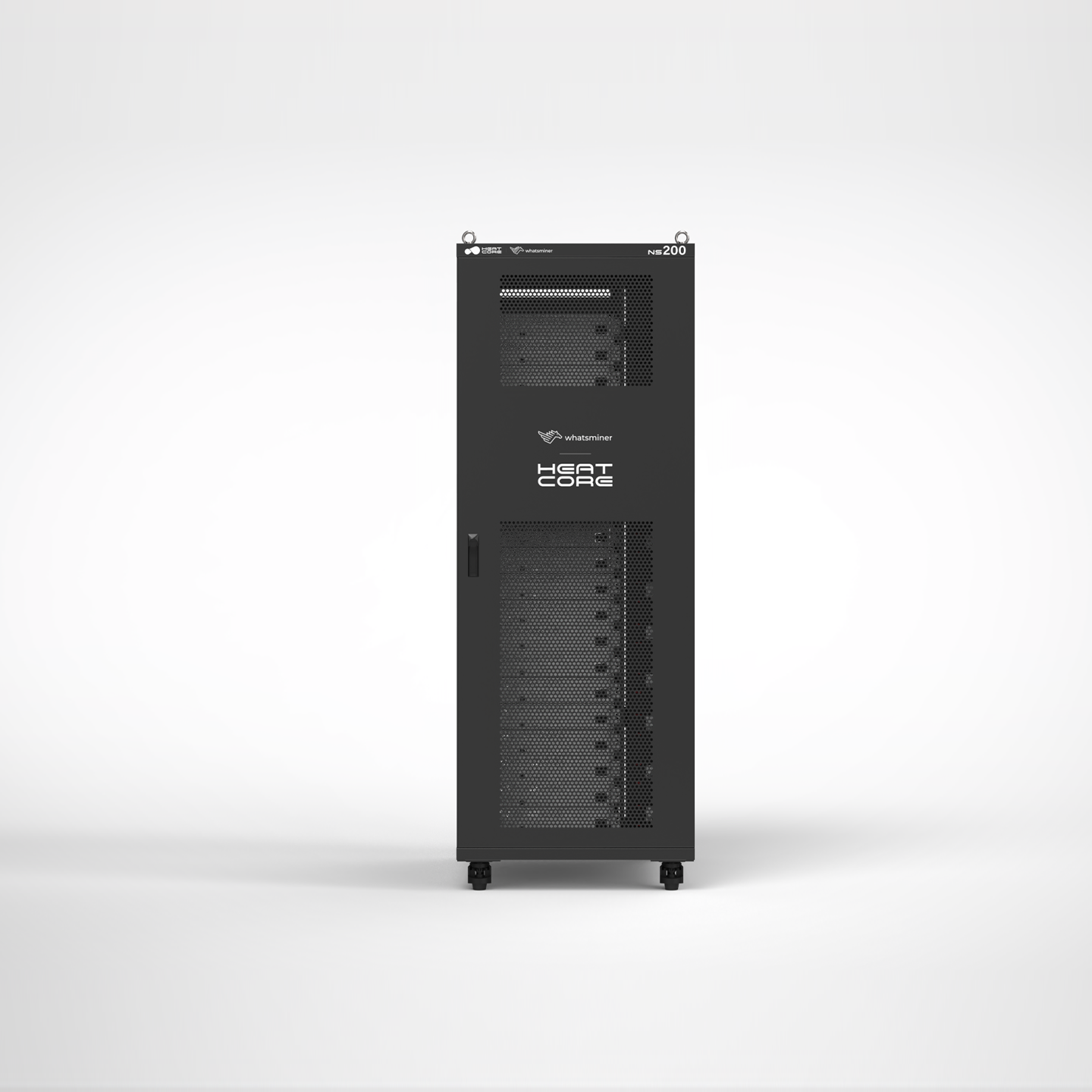

FRONT
资源 23@4x-3 资源 15@4x-4

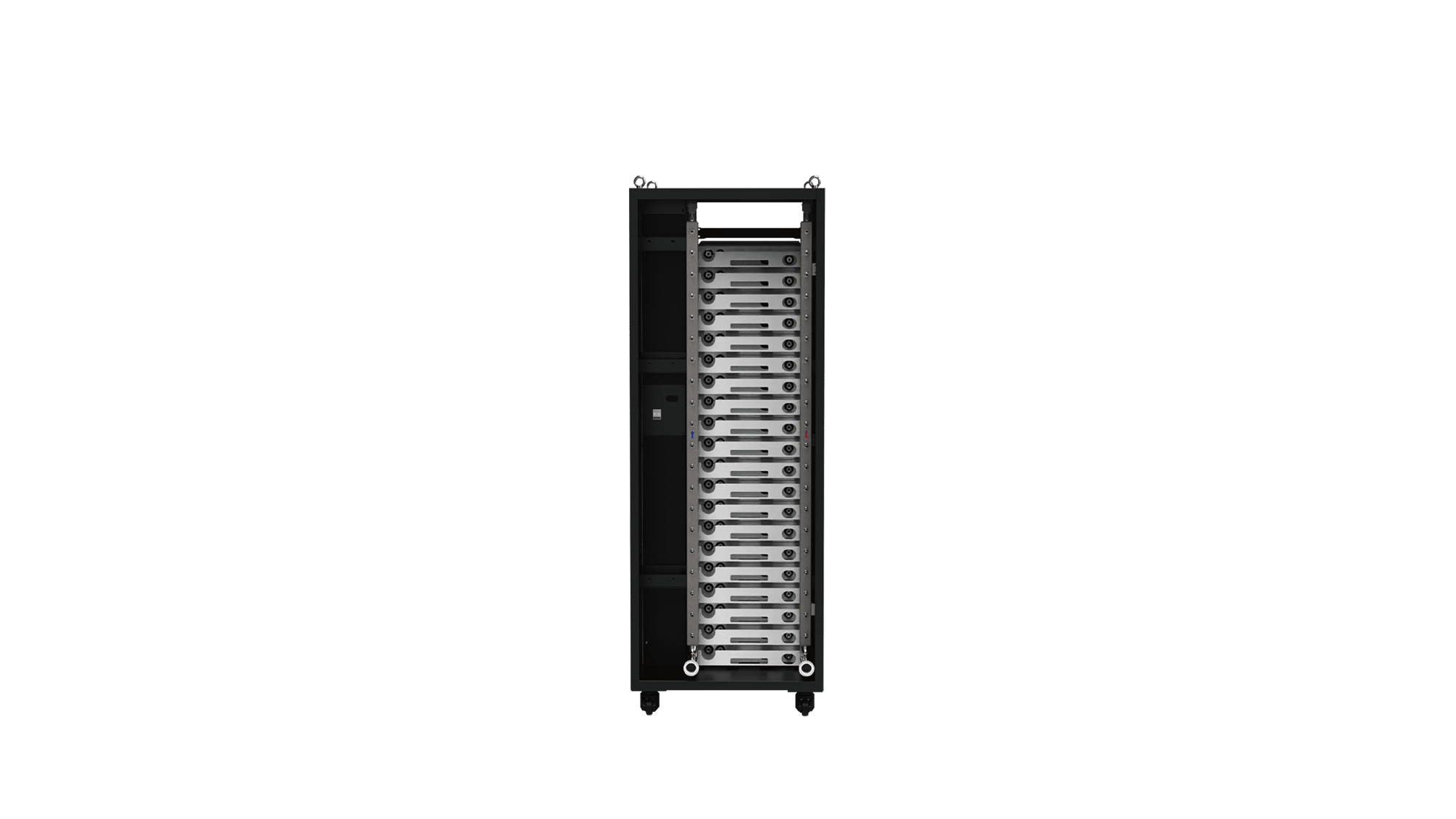

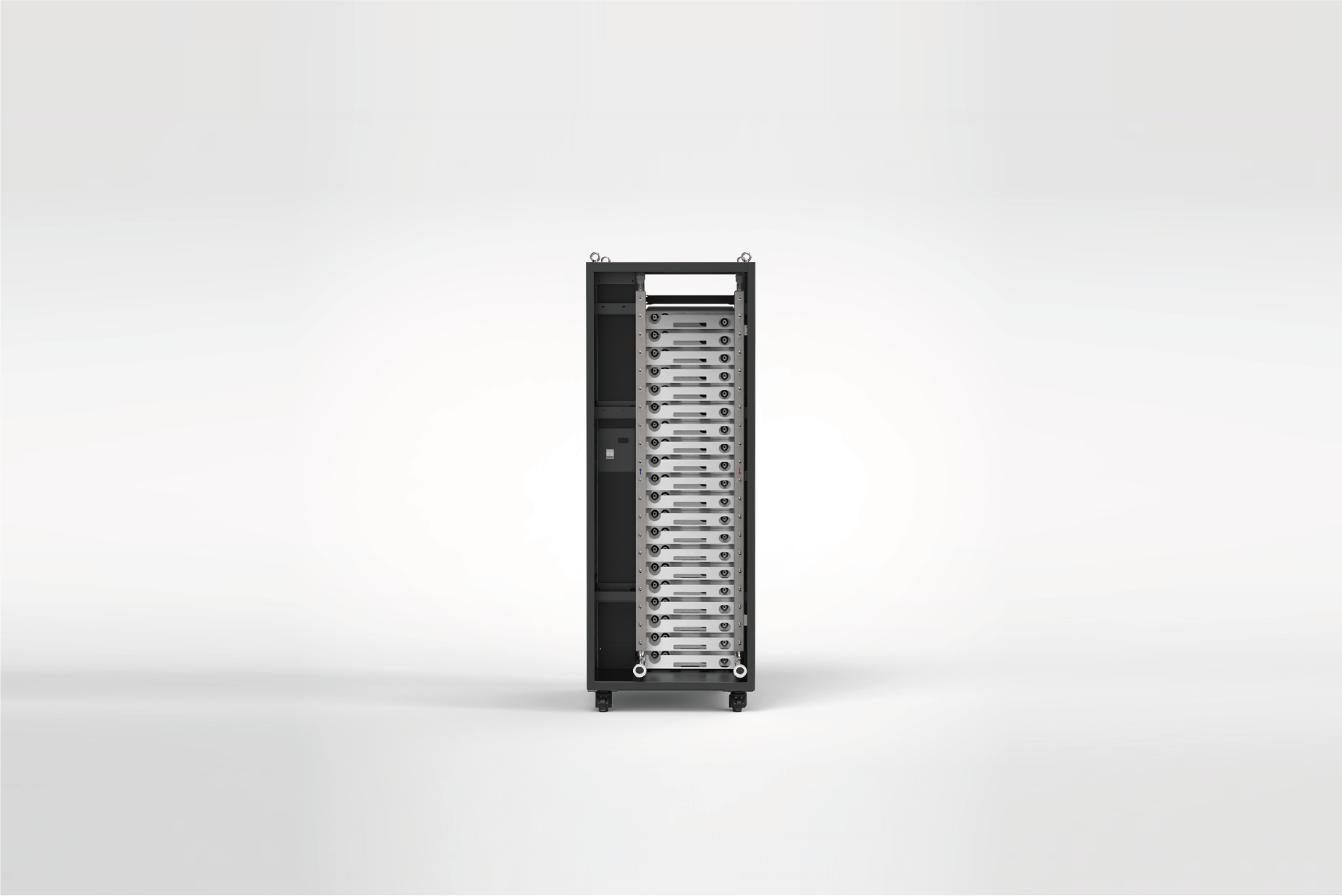

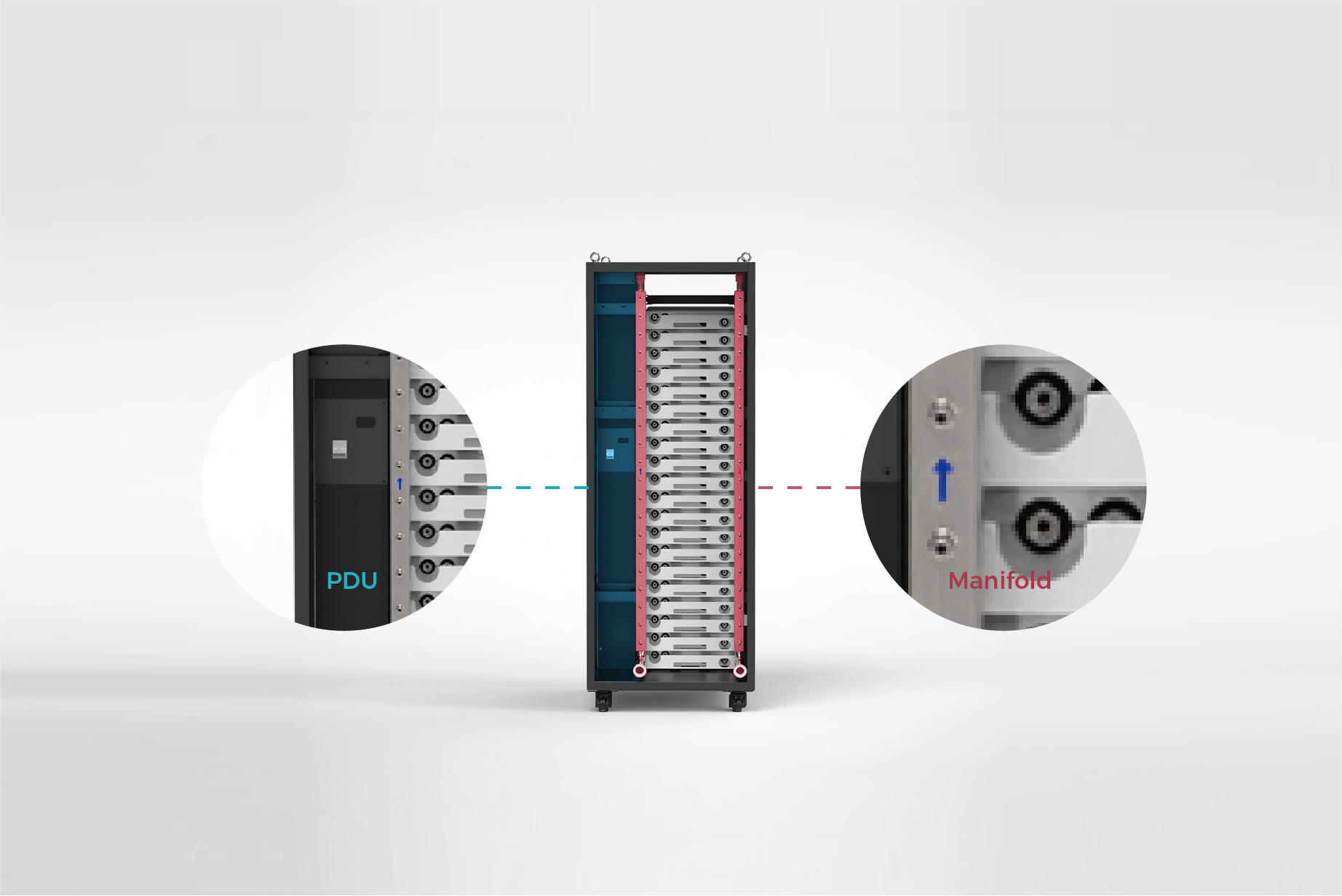

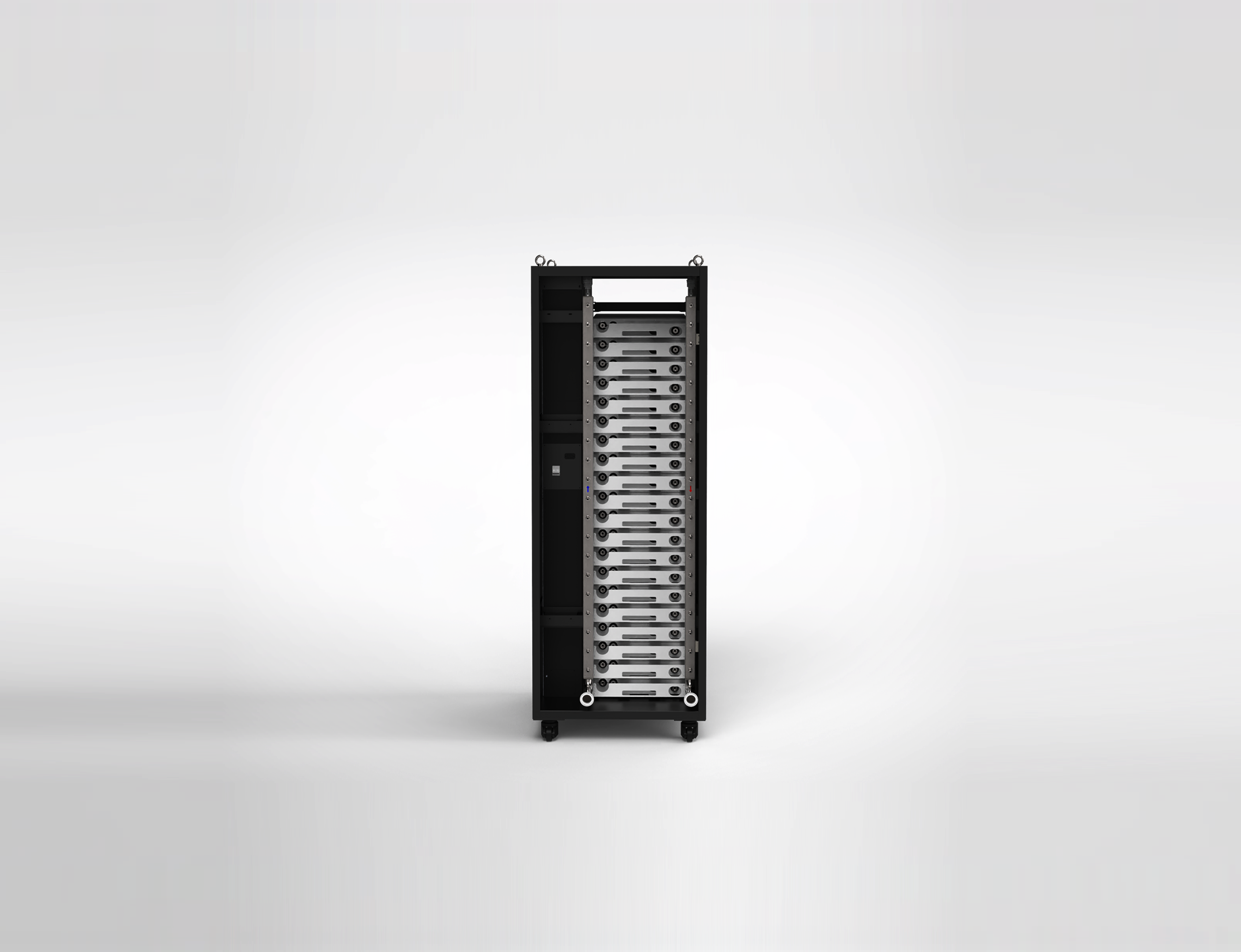

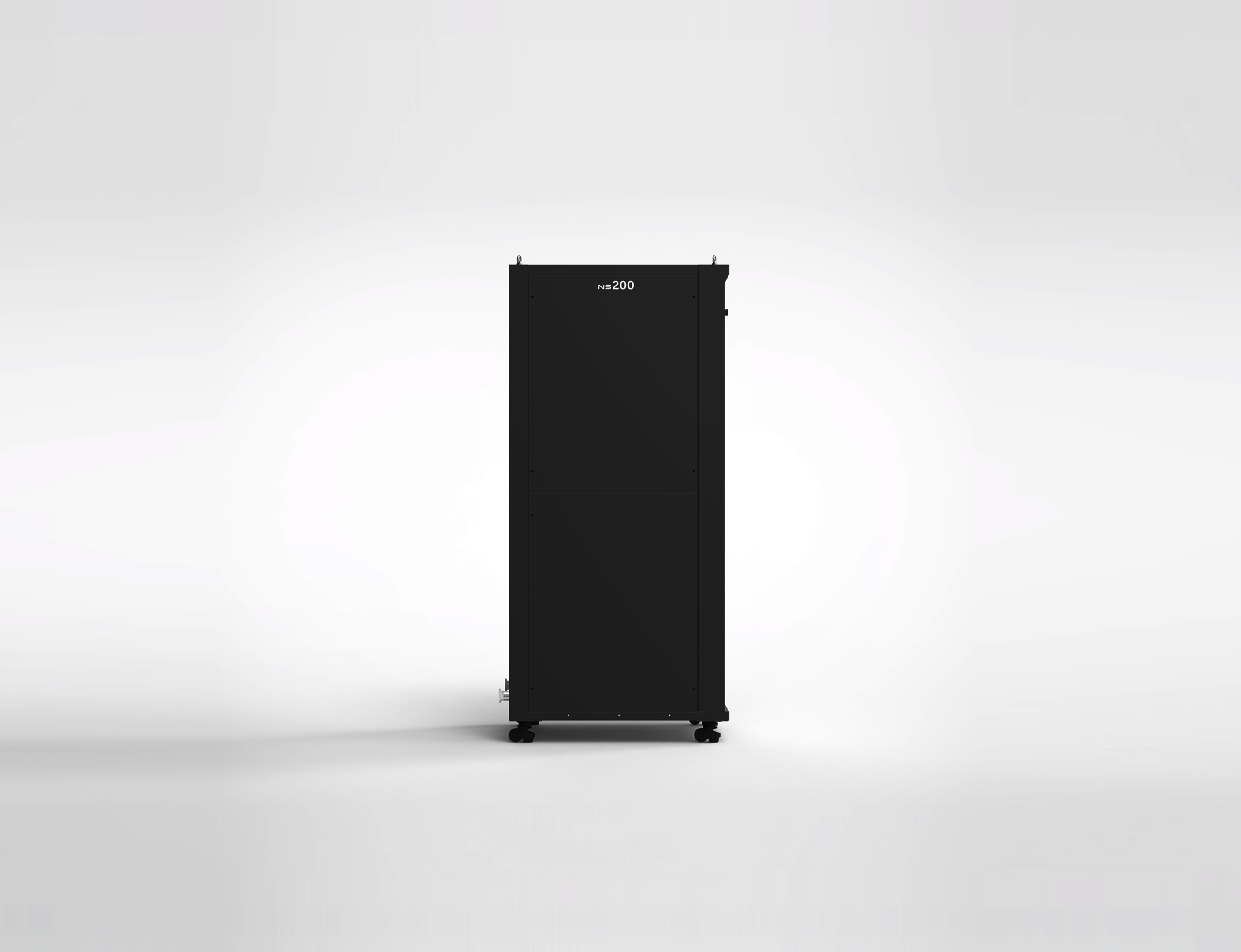

BACK
资源 18@4x-2 资源 17@4x-2

We will help you to customized it! Contact us business@heatcore.tech
